Draper FlexShade Instructions Installation & Operation page 5

Exterior Clutch-Operated FlexShade

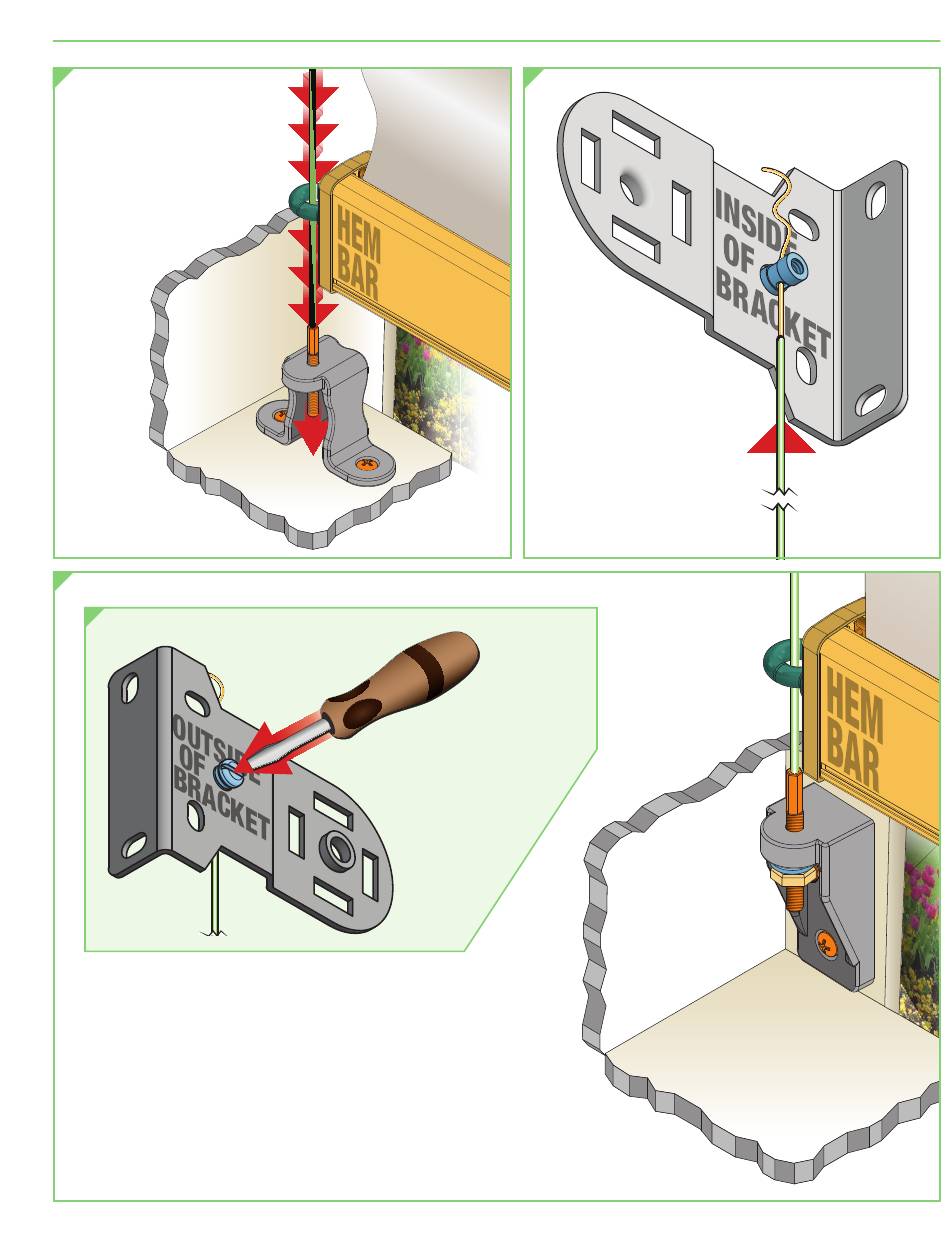

8.
While capturing Hem
Bar of shade, feed
cable through
Mounting Bracket.
(Deck mount option
.
shown)
10.
Secure cable to bracket
by re-tightening screw
in Cable Clamp.
11.
Replace Washer and Nut on the
bottom bracket and tighten until
desired tension is reached.
(Wall mount option shown.)
®
9.
Thread cable through
holes in wire clamp
as far as stripped
jacket will allow
page 5 of 12
