Motorized FlexShade
Motor Operated Window Shades with Several Control Options

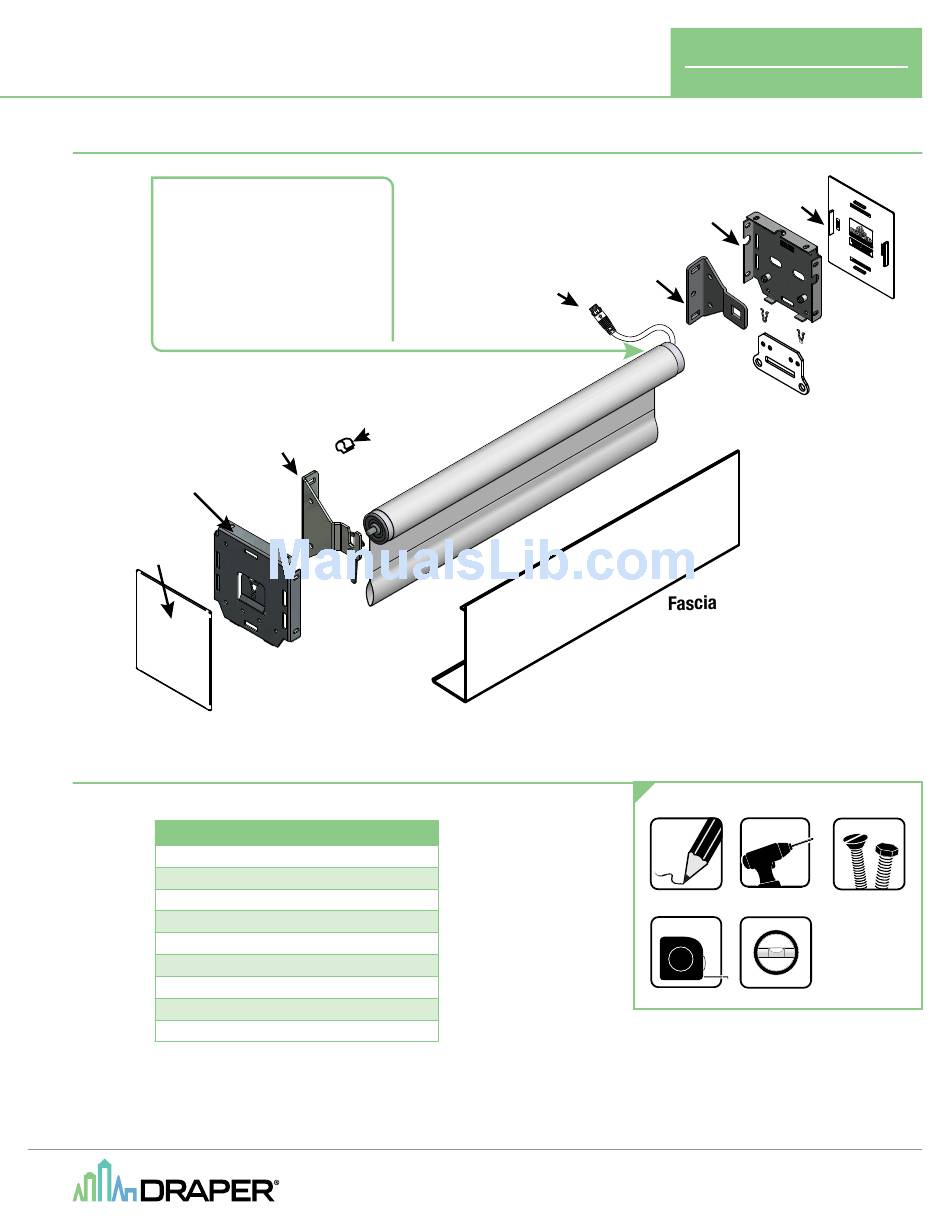

Overview - Motorized FlexShade Components
FlexShade Motor
(4 options)
120V Standard AC Motor
120V RTS AC Motor
120V 485 Intelligent AC Motor
24V DC Motor
Endcap (L)
for Fascia
Endcap
Cover (L)
Section 1 - Motor Types, Names and Voltage
These instructions apply to all Draper medium duty motor
operated window shades using the following motors:
MOTOR NAME
Sonesse 50
Sonesse Ultra 50
Sonesse RTS
Sonesse RTS Ultra
Sonesse RS485
Sonesse RS485 Ultra
ST30 Dry Contact
ST30 RTS
ST30 485
®
Retainer
Brackets
Clip
Only (L)
MOTOR VOLTAGE
120VAC
120VAC
120VAC
120VAC
120VAC
120VAC
24V
24V
24V
INSTRUCTIONS
INSTALLATION & OPERATION
Endcap (R)
for Fascia
Brackets
M12
Only (R)
Cable
TOOLS REQUIRED
Pencil
Tape Measure Level
If you have any difficulties installing or servicing your
Motorized FlexShade, call your dealer or Draper, Inc.
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
© 2018 All Rights Reserved
Endcap
Cover
(R)
Power Drill
Hardware
(by Others)
|
FORM: FSMO_Inst18
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Draper FlexShade
Summary of Contents for Draper FlexShade
- Page 1 ST30 485 If you have any difficulties installing or servicing your Motorized FlexShade, call your dealer or Draper, Inc. Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385 draperinc.com | 765.987.7999 | 800.238.7999 FORM: FSMO_Inst18 © 2018 All Rights Reserved...
-
Page 2: Important Safety Information
It is the owner’s and installer’s responsibility to confirm the wall or ceiling to which the unit attaches is sufficient to permanently hold the weight and stress loads of the unit at all times. Draper, Inc., is not responsible for improper installation, application, testing or workmanship related to the product at place of installation. - Page 3 Motorized FlexShade ® page 3 of 8 Section 2 - Mounting Brackets (Brackets Only Installation) 1. Mark wall, jamb or ceiling for placement of mounting brackets. CEILING MOUNTING BRACKETS Caution: Before mounting shades, verify measurements on the card provided with IDLER the shade, and ensure the brackets are installed at the correct width.
- Page 4 Motorized FlexShade ® page 4 of 8 Section 3.2 - Attaching Fascia to Endcaps Fascia Attachment Small & Large Endcaps ATTACHING FASCIA 1. Place groove along top of fascia over endcaps, and snap into place (see Fig. 5). STEP 2:...
- Page 5 Connections should be made in accordance with attached wiring diagram, and wiring should comply with national and local electrical codes. DO NOT wire motors in parallel without written permission from Draper.
- Page 6 Only (L) off and switch the red and black wires from the motor to the switch. Endcap (L) Do not wire motors in parallel without for Fascia written permission from Draper. Connector Dashed Wiring Endcap by Electrician Cover (L) W B R G...
- Page 7 Motorized FlexShade ® page 7 of 8 Endcap Cover Endcap (R) Motorized FlexShade ® for Fascia with 485 Sonesse (ILT) Brackets 120VAC Operator Only (R) Cable Retainer Brackets Clip Only (L) Endcap (L) for Fascia Endcap Cover (L) Controls & System Overview...
-
Page 8: Power Cable
Motorized FlexShade ® page 8 of 8 Endcap Cover Endcap (R) Motorized FlexShade ® for Fascia with ST30 24V DC Operator Brackets (RTS Shown) Only (R) Power Cable Retainer Brackets Antenna Clip Only (L) Endcap (L) for Fascia Endcap Cover (L) Controls &...
