Summary of Contents for Chauvet DJ LED SHADOW 2 ILS

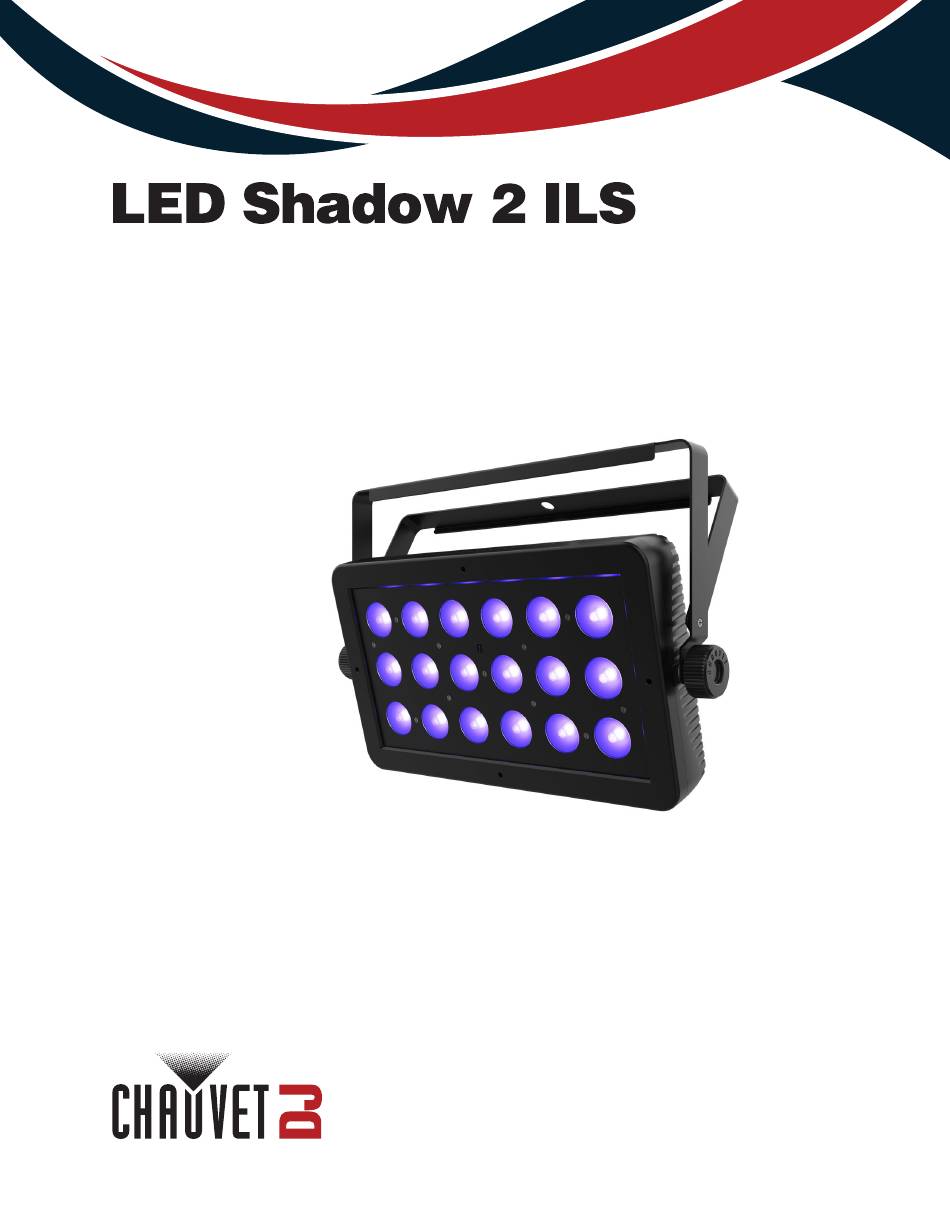

- Page 1 User Manual...
-
Page 2: Table Of Contents
IRC-6 Infrared Remote Control ..............IRC-6 Operation ....................Master/Slave Mode (Wired) ................Master/Slave Mode (D-Fi USB)..............ILS Mode....................... 5. Maintenance..................Product Maintenance ..................6. Technical Specifications..............Warranty & Returns................Limited Warranty ................... Returns......................Contact Us....................LED Shadow 2 ILS User Manual Rev. 1... -
Page 3: Before You Begin
Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, and LED Shadow 2 ILS are registered trademarks or trademarks of Chauvet & Sons LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies. -
Page 4: Safety Notes
Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. Page 2 of 15 LED Shadow 2 ILS User Manual Rev. 1... -
Page 5: Introduction
WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product. Product Dimensions 8.2 in 208 mm 2.2 in 14 in 55 mm 355 mm LED Shadow 2 ILS User Manual Rev. 1 Page 3 of 15... -
Page 6: Setup
It is possible to power link up to 11 LED Shadow 2 ILS products on 120 VAC or up to 20 LED Shadow 2 ILS products on 230 VAC. The power-linking diagram corresponds to the North American version of the product ONLY! If using the product in other markets, consult with the local Chauvet distributor as power- linking connectors and requirements may differ by country or region. -
Page 7: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The LED Shadow 2 ILS may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location, always make sure there is easy access to the product for maintenance and programming. -
Page 8: Operation
Press to scroll down the list of options or to find a lower value <ENTER> Press to activate a menu option or a selected value Menu Map Refer to the LED Shadow 2 ILS product page on www.chauvetdj.com for the latest menu map. Mode... -
Page 9: Configuration (Dmx)
4. Press <ENTER>. D-Fi USB Connectivity The LED Shadow 2 ILS is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from Chauvet DJ. Simply set the product's DMX Personality and DMX Address, set the DIP switch D-Fi receiving/transmitting channel, then plug it into the D-Fi USB port. -
Page 10: Dmx Channel Assignments And Values
Lightning effect 001 250 Lightning effect, slow to fast (when Ch. 1 is 200 239) 251 255 Sound-active lightning effect Dimmer 000 255 0–100% Page 8 of 15 LED Shadow 2 ILS User Manual Rev. 1... -
Page 11: Configuration (Standalone)
3. Press <ENTER>. The product will return to sound-active mode. Manual Mode To run the LED Shadow 2 ILS with a custom color and strobe speed, do the following: 1. Press <MENU> repeatedly until u-- shows on the display. 2. Press <ENTER> and one of the following will show on the display: •... -
Page 12: Configuration (Settings)
4. Press <ENTER>. IRC-6 Infrared Remote Control The LED Shadow 2 ILS is compatible with the IRC-6 infrared remote control from Chauvet. To run the LED Shadow 2 ILS in IR mode, follow the instructions below. 1. Press <MENU> repeatedly until SEt shows on the display. -
Page 13: Master/Slave Mode (Wired)
Master/Slave Mode (D-Fi USB) The D-Fi USB allows a single LED Shadow 2 ILS product (the “master”) to control the actions of one or more LED Shadow 2 ILS products (the “slaves”) without the need of a DMX controller or DMX cables. The master (transmitter) product will be set to operate in standalone mode or with the IRC-6, while the slave (receiver) products will be set to operate in DMX mode. -
Page 14: Maintenance
6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Page 12 of 15 LED Shadow 2 ILS User Manual Rev. 1... -
Page 15: Technical Specifications
Maximum External Temperature Cooling System 104 °F (40 °C) Convection I/O Connector Channel Range 3-pin XLR Ordering Product Name Item Code UPC Number LED Shadow 2 ILS 10121916 781462222642 LED Shadow 2 ILS User Manual Rev. 1 Page 13 of 15... -
Page 16: Warranty & Returns
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Page 14 of 15 LED Shadow 2 ILS User Manual Rev. 1... -
Page 17: Contact Us
Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record. LED Shadow 2 ILS User Manual Rev. 1 Page 15 of 15...
