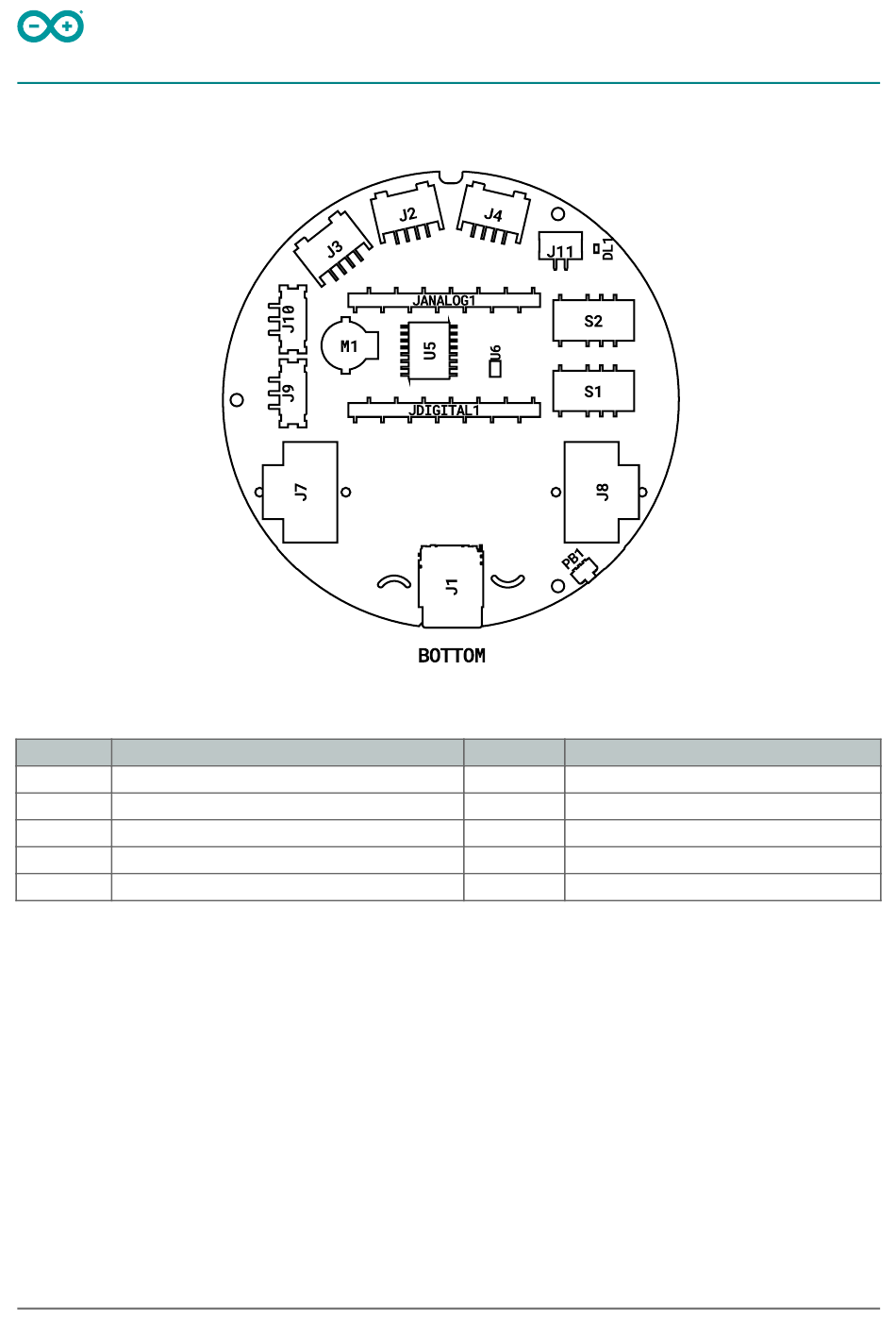

2.1.2 Bottom View

Ref. Description
J2, J3 Analog Grove Connectors
J11 B2B-PH-SM4-TB(LF)(SN) Power Connector
JDIGITAL1 MKR Power and Digital Pin Connector
S1, S2 EE2-5NU-L 2A 250V Mechanical Relay
J1 Micro SD Module
8 / 18
Bottom view
Ref.
J4
J9, J10
JANALOG1
M1
J7, J8
Arduino® MKR IoT Carrier Rev2
Arduino® MKR IoT Carrier
Description
I2C Grove Connector
1771033 3-pin Relay Connector
MKR AREF and Analog Pin Connector
Buzzer
Li-Ion 18650 Holder
Rev2
Modified: 12/01/2023
