Transition Networks PSV-2/14-45 User Manual

1-2 mb/s hub for as400, s3/x , 5x94 host
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

COMPLIANCE INFORMATION

UL Listed
C-UL Listed (Canada)
CISPR/EN55022 Class A
FCC Regulations
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on
the radio interference regulations of the Canadian Department of Communications.
Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables
aux appareils numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique
édicté par le ministère des Communications du Canada.
European Regulations
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
Achtung !
Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb dieses Gerätes
Rundfunkstörungen auftreten, in weichen Fällen der Benutzer für entsprechende Gegenmaßnahmen
werantwortlich ist.
Attention !
Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer des
interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures spécifiques
appropriées
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE
PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in
damage to the public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten
verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur
Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen
einschliesslich der gegenseitigen Anerkennung ihrer Konformität.
Trademark Notice
All registered trademarks and trademarks are the property of their respective owners.
Copyright Restrictions
© 1999 TRANSITION Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means –
graphic, electronic, or mechanical – without written permission from TRANSITION Networks.
Printed in the U.S.A.

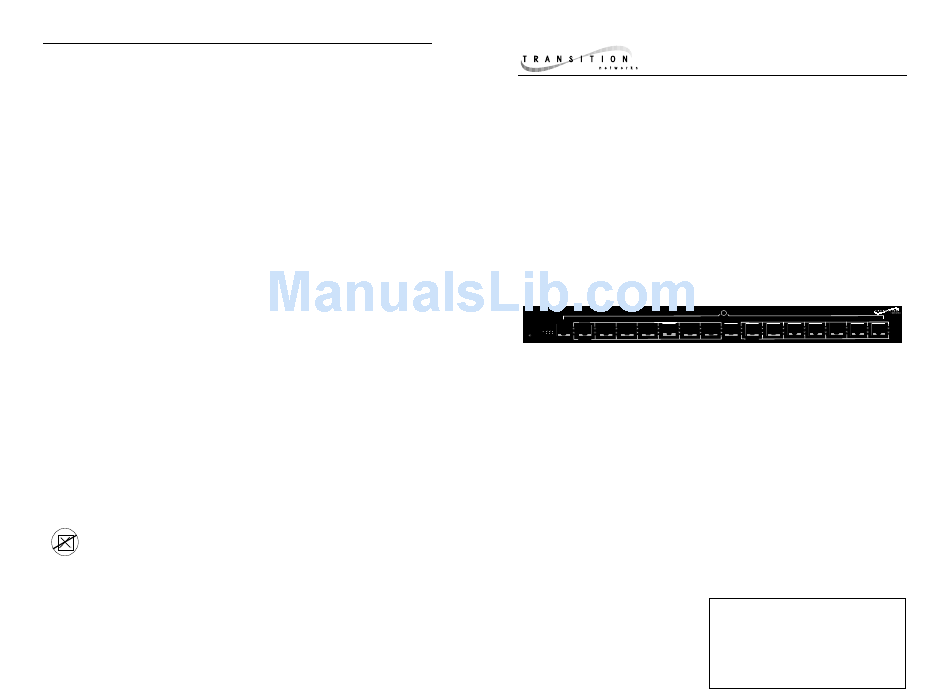

1-2 Mb/s Hub for AS400
The TRANSITION Networks rack-mountable PowerStar
converts a twinax daisy-chain topology to an unshielded twisted-pair star
topology in AS/400™, Sys36, or 5x94 remote controller host
environments. The PowerStar
operating at speeds of either 1 Mb/s OR 2 Mb/s (IBM
PSV-2/14-45
Left Link
The PowerStar™ V distributes one or two host input signals from the
AS/400, Sys36, or 5x94 remote controller, received over twinax, fiber, or
twisted-pair media, to up to seven (7) terminal devices for each host input
signal (up to fourteen (14) terminal devices for two host input signals).
All signals from the PowerStar™ V to terminal devices are over twisted-
pair using RJ-45 port connectors.
PS-T-SIC Optional slide-in-card (SIC) for the TRANSITION Networks
PowerStar
host input signal(s).
PS-F-SIC Optional slide-in-card (SIC) for the TRANSITION Networks
PowerStar
input signal(s).
*Refer to IBM
material available from network
vendors when installing PowerStar™ V
in a 5250 Express network.
33121.A
PowerStar
™
, S3/x , 5x94 Host
™
PSV-2/14-45
USER'S GUIDE
™
V supports all 5250 compliant devices
0
1
2
3
4
5
6
0
Line Sync
Parity Error
™
V; when installed, provides two (2) twinax link connections for
™
V; when installed, provides two (2) fiber link connections for host
PSV-2-14/45 in the Network . . . . . . .2
Installation . . . . . . . . . . . . . . . . . . . .4
®
5250 Express reference
Operation . . . . . . . . . . . . . . . . . . . .12
Cable Specifications . . . . . . . . . . . .13
Technical Specifications . . . . . . . . .15
Compliance Information . . . . . . . . .16
Minneapolis, MN 55344 USA
V
™
V, PSV-2/14-45,
®
5250 Express*).
1
2
3
4
5
6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSV-2/14-45 and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks PSV-2/14-45

Summary of Contents for Transition Networks PSV-2/14-45

  • Page 1: Compliance Information

    PowerStar ™ , S3/x , 5x94 Host ™ PSV-2/14-45 ™ V, PSV-2/14-45, ™ V supports all 5250 compliant devices ® 5250 Express*). PSV-2-14/45 in the Network ..2 Installation ....4 Operation .

  • Page 2: Technical Specifications

    PSV-2/14-45 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the PSV-2/14-45 to which this declaration refers is in conformity with the following standards. EMC-CISPR 22: 1985 Class A; EN 55022: 1988 Class A; EN 50082-1:1992; EN 60950 A4:1997; IEC 801.2, IEC 801.3, and IEC 801.4; IEC 950 I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).

  • Page 3: Cable Specifications

    CABLE SPECIFICATIONS (continued) Fiber Cable and Connector Specifications MULTIMODE FIBER CABLE Fiber Optic Cable Recommended: 62.5 / 125 µm multimode fiber Optional: 100 / 140 µm multimode fiber 85 / 125 µm multimode fiber 50 / 125 µm multimode fiber Wavelength 850 nM Fiber Optic Transmitter Power:...

  • Page 4: Installation

    INSTALLATION Set Twisted-Pair Polarity Switches Two (2) sets of twisted-pair polarity switches at the PowerStar™ V front toggle the polarity of the active RJ-45 pins for each host Link and for each set of seven device Ports. Set the factory default host Link switch to "A" when connecting twinax cable to the host.

  • Page 5: Operation

    OPERATION Use the status LEDs to monitor PowerStar™ V operation in the network. Left Link Line Sync Parity Error Line Sync Flashing LED indicates, for each isolated twisted-pair copper port, normal operation in either 1 Mb/s mode or 2 Mb/s (5250 Express) mode.
  • Page 6 To disengage cover from chassis, slide PowerStar™ V cover approximately one-inch toward back of the PowerStar™ V. Carefully lift PowerStar™ V cover and remove. Using needle nose pliers with insulated handle and referring to reference diagram on the previous page, move jumpers as required to change factory default active pin settings to active pin settings for the site.
  • Page 7 Install PSV-2/14-45 at Site WARNING: During the site installation, handle the PSV-2/14-45 in such a way that the PSV-2/14-45 does not fall. Failure to observe this warning could result in injury to personnel and/or equipment damage. NOTE: If PSV-2/14-45 is shipped with brackets installed, proceed to step 2.
  • Page 8 Connect Link Cable to Host CAUTION: ALL cable lengths MUST be greater than 25 feet (7.6 meters). Failure to observe this caution could cause data transfer to fail. OPTIONALLY LINK TO HOST USING TWISTED-PAIR CABLE NOTE: Set polarity switch (page 4), select compatible baluns (page 4), and – only if necessary –...
