- Page 1 HDMI Extender over one CAT5E/CAT6(TCP/IP) CHE-HD300 User manual...
- Page 2 Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. I. Introduction The HDMI Extender over ONE CAT 5E/6 is a tool for extending your HDMI signal over long distances to a compatible display.
- Page 3 II. Features DC 5V~12V wide power supply. HDMI 1.3, HDCP 1.1 and DVI1.1 compliant. Support Deep Color up to 12 bits/color. Support IR re-transmitting. Uses one CAT5E/6 cable for data/DDC transmission. Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality.
- Page 4 III. Package HDMI Extender (Transmitter) ------------------------------------ 1PC HDMI Extender (Receiver )--------------------------------------- 1PC IR Transmitter ---------------------------------------------------- 1PC IR Receiver -------------------------------------------------------- 1PC 5V DC Power Supply adapter ----------------------------------- 2PCS Operation Manual ------------------------------------------------- 1PC IV. Specifications Frequency Bandwidth 2.25Gbps (single link) HDMI Transmitter Input/Output Ports 1x HDMI Female port/1 x CAT6 HDMI Receiver Input/Output Ports 1 x HDMI Female port/1 x CAT6...
- Page 5 ESD Protection Human Body Model: ± 8kV (air-gap discharge) ± 4kV (contact discharge) Dimensions (mm) 65(W) X 100 (D) X 25 (H) 0˚C ~ 40˚C / 32˚F ~ 104˚F Operating Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F Storage Temperature Relative Humidity 20~90% RH (non-condensing) V.

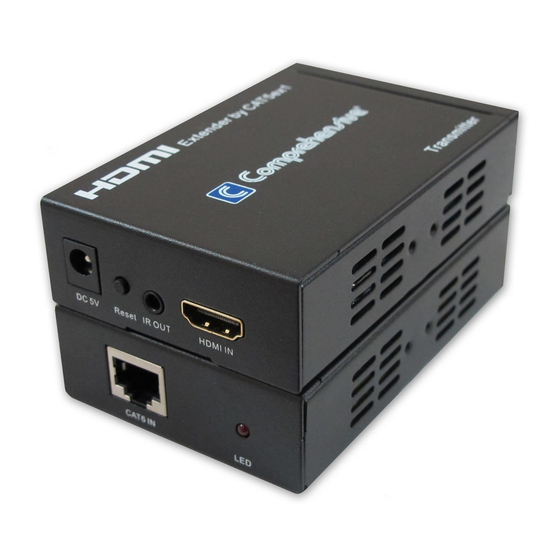

- Page 6 1) Power: Plug the 5V~12VDC power supply into the unit and connect the adapter to AC wall outlet. 2) RESET KEY: Factory default key. 3) IR OUT: Remote control signal transmit，connect the IR transmit cable with HDMI Extender Transmitter; The IR transmit cable face to the IR receiver of the Source． 4) HDMI：HDMI Input port.
- Page 7 2．HDMI Extender Receiver Front Panel Rear Panel 1) Power: Plug the 5V~12VDC power supply into the unit and connect the adapter to AC wall outlet. 2) RESET KEY: Factory default key 3) IR IN: Remote control signal Receive，connect the IR receive cable with HDMI Extender Receiver．...
- Page 8 single CAT6 transmitter. 6) LED indicator: When the DC power on, the indicator will be light. VI. Application Example...
