AXIS A1210 Network Door Controller
AXIS A1210-B Network Door Controller
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A1210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axis A1210

Summary of Contents for Axis A1210

  • Page 1 AXIS A1210 Network Door Controller AXIS A1210-B Network Door Controller User Manual...

  • Page 2: Table Of Contents

    Table of Contents Solution overview ......... . . Get started .

  • Page 3: Solution Overview

    Solution overview Solution overview The network door controller can easily be connected to and powered by your existing IP network with no need for special cabling.
  • Page 4 Solution overview Each network door controller is an intelligent device that is easily mounted close to a door. It can power and control up to two readers.

  • Page 5: Get Started

    Get started Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.

  • Page 6: Verify That No One Has Tampered With The Firmware

    Verify that no one has tampered with the firmware To make sure that the device has its original Axis firmware, or to take full control of the device after a security attack: 1. Reset to factory default settings. See Reset to factory default settings on page 29.

  • Page 7: Configure Your Device

    Configure your device Configure your device For how to configure your device, see AXIS Camera Station user manual or third-party solutions.

  • Page 8: The Device Interface

    The device interface The device interface To reach the device interface, type the device’s IP address in a web browser. Note Support for the features and settings described in this section varies between devices. Show or hide the main menu. Access the product help.

  • Page 9: Access Control

    The device interface Access control Alarms Device motion: It is enabled by default to trigger an alarm in your system when device motion of the door controller is detected. Casing open: It is enabled by default to trigger an alarm in your system when casing open of the door controller is detected. External tamper: It is not enabled by default.
  • Page 10 The device interface Assign IPv4 automatically: Select to let the network router assign an IP address to the device automatically. We recommend automatic IP (DHCP) for most networks. IP address: Enter a unique IP address for the device. Static IP addresses can be assigned at random within isolated networks, provided that each address is unique.
  • Page 11 One-click cloud connection One-click cloud connection (O3C) together with an O3C service provides easy and secure internet access to live and recorded video from any location. For more information, see axis.com/end-to-end-solutions/hosted-services. Allow O3C: • One-click: The default setting. Press and hold the control button on the device to connect to an O3C service over the internet.
  • Page 12 Authentication failed: Sends a trap message when an authentication attempt fails. Note All Axis Video MIB traps are enabled when you turn on SNMP v1 and v2c traps. For more information, see AXIS OS Portal > SNMP. • v3: SNMP v3 is a more secure version, which provides encryption and secure passwords. To use SNMP v3, we recommend you to activate HTTPS, as the password is then sent through HTTPS.
  • Page 13 To install test firmware or other custom firmware from Axis on the device, you need a custom-signed firmware certificate. The certificate verifies that the firmware is approved by both the device owner and Axis. The firmware can only run on a specific device which is identified by its unique serial number and chip ID.
  • Page 14 IoT integration and is used in a wide variety of industries to connect remote devices with a small code footprint and minimal network bandwidth. The MQTT client in Axis device firmware can simplify integration of data and events produced in the device to systems which are not video management systems (VMS).
  • Page 15 The device interface Clean session: Controls the behavior at connection and disconnection time. When selected, the state information is discarded at connect and disconnect. Keep alive interval: The keep alive interval enables the client to detect when the server is no longer available without having to wait for the long TCP/IP timeout.
  • Page 16 The device interface • All: Send both stateful and stateless messages as retained. QoS: Select the desired level for the MQTT publication. MQTT subscriptions Add subscription: Click to add a new MQTT subscription. Subscription filter: Enter the MQTT topic that you want to subscribe to. Use device topic prefix: Add the subscription filter as prefix to the MQTT topic.
  • Page 17 The device interface Reports • View the device server report: Click to show information about the product status in a pop-up window. The Access Log is automatically included in the Server Report. • Download the device server report: Click to download the server report. It creates a .zip file that contains a complete server report text file in UTF–8 format, as well as a snapshot of the current live view image.

  • Page 18: Maintenance

    Note All Axis device firmware is digitally signed to ensure that you only install verified firmware on your device. This further increases the overall minimum cybersecurity level of Axis devices. For more information, see the white paper “Signed firmware, secure boot, and security of private keys” at axis.com.

  • Page 19: Security

    Axis device ID Axis device ID works like a digital passport, unique for each device unit. It is securely and permanently stored in Edge Vault as a certificate signed by Axis root certificate. Axis device ID is designed to prove the origin of the device, enabling a new level of device trust through the life cycle of the product.

  • Page 20: Specifications

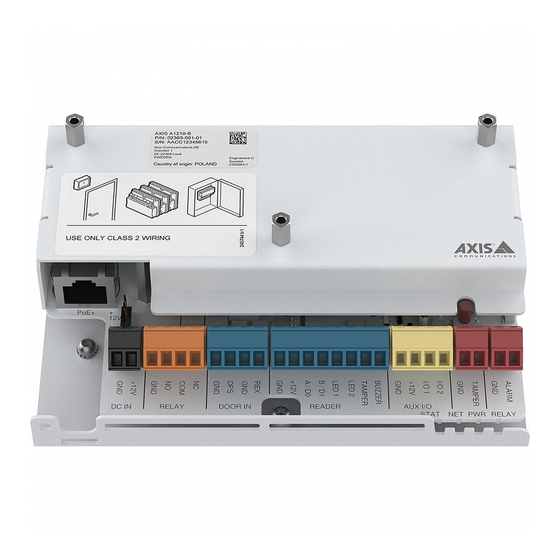

    Specifications Specifications Product overview Network connector Grounding position Relay jumper Power connector Relay connector Door connector Reader connector Auxiliary connector External connectors 10 Control button Text marked with UL is only valid for UL 294 installations. Requirements for compliance with UL 294 This section contains information and instructions required for UL compliance.
  • Page 21 • When the Axis product has reached the end of its useful life, dispose of it according to local laws and regulations. The product should not be disposed of together with household or commercial waste.
  • Page 22 Monitoring software was not evaluated by UL, and is for supplemental use. • Maintenance instructions For maintenance instructions and for information about how to configure the Axis product, see the User Manual. • Further information Card formats verified by UL: ISO Cards Mifare 1K, 32 bits.

  • Page 23: Led Indicators

    Specifications Reader I/O: DC output: 2x 12 V DC output, max 486 mA; 2x2 configurable supervised inputs/outputs (digital input: 0 to max 30 V DC; digital output: 0 to max 30 V DC, open drain max 100 mA) Reader data: OSDP/RS485 half duplex, Wiegand Auxiliary: DC output: 1x 12 V DC output, max 200 mA, 4x configurable inputs/outputs (digital input: 0 to max 30 V DC;...

  • Page 24: Connectors

    Important • When the reader is powered by the controller, the qualified cable length is up to 200 m (656 ft). Verified only for Axis readers. • When the reader is not powered by the controller, the qualified cable length for reader data is up to 1000 m (3280,8 ft) if the following cable requirements are met: 1 twisted pair with shield, AWG 24, 120 ohm impedance.
  • Page 25 Specifications Supplies power to reader. 12 V DC, max 500 mA DC output (+12 V) LED 1 Red LED LED 2 Green LED TAMPER Digital input — Connect to pin 0 to max 30 V DC 1 to activate, or leave floating (unconnected) to deactivate.
  • Page 26 Specifications Door connector One 4-pin terminal block for door monitoring devices (digital input). Only door monitor supports supervision with end of line resistors. If the connection is interrupted, an alarm is triggered. To use supervised inputs, install end of line resistors. Use the connection diagram for supervised inputs. See . Function Notes Specifications...
  • Page 27 Specifications Power source Max power at 12 V DC Max power at 24 V DC DC IN 1 600 mA 800 mA 1200 mA 600 mA NOTICE TICE TICE If the lock is non-polarized, we recommend you to add an external flyback diode. Auxiliary connector Use the auxiliary connector with external devices in combination with, for example, motion detection, event triggering, and alarm notifications.
  • Page 28 Specifications I/O configured as output External connector Two 2-pin terminal blocks for external devices, for example glass break or fire detectors. UL: The connector has not been evaluated by UL for burglar or fire alarm use. Function Notes Specifications DC ground 0 V DC TAMPER Digital input –...

  • Page 29: Troubleshooting

    Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.

  • Page 30: Technical Issues, Clues, And Solutions

    Axis device. Check all cabling and reinstall the device. Possible IP address conflict The static IP address in the Axis device is used before the DHCP server sets a dynamic address. with another device on the...

  • Page 31: Contact Support

    IP addresses obtained from a DHCP server are dynamic and may change. If the IP address has been changed by DHCP changed, use AXIS IP Utility or AXIS Device Manager to locate the device on the network. Identify the device using its model or serial number, or by the DNS name (if the name has been configured).
  • Page 32 User Manual Ver. M1.14 Date: January 2023 © Axis Communications AB, 2022 - 2023 Part No. T10181041...
