INSTALLATION GUIDE - QUICK REFERENCE

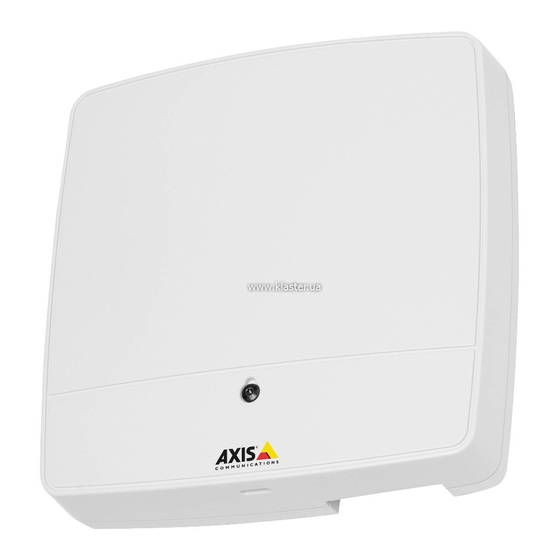

AXIS A1001 Network Door Controller
For the AXIS A1001 Installation Guide – Full Reference
and the AXIS A1001 User Manual, go to www.axis.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A1001 and is the answer not in the manual?

Questions and answers

Related Manuals for Axis A1001

Summary of Contents for Axis A1001

  • Page 1 INSTALLATION GUIDE - QUICK REFERENCE AXIS A1001 Network Door Controller For the AXIS A1001 Installation Guide – Full Reference and the AXIS A1001 User Manual, go to www.axis.com...

  • Page 2: Equipment Modifications

    Search by product, category, or phrase (STP) that is properly grounded. • report problems to Axis support staff by logging in to your This product fulfills the requirements for immunity according private support area to EN 61000-6-1 residential, commercial and light-industrial •...

  • Page 3: Contact Information

    AptiqQ MTMSK15. Tel: +46 46 272 18 00 Safety Instructions Fax: +46 46 13 61 30 • The Axis product shall be installed and serviced by a factory www.axis.com trained professional. Supported Readers • The Axis product shall be installed within the protected This list of supported readers is subject to change without premises (secured area).

  • Page 4: System Considerations

    English • Battery – The 3.0 V lithium battery used by the Axis product is a UL Recognized component. (Type: BR2032, diameter: 20 mm System Considerations (0.78 in), manufacturers: Rayovac, Panasonic). The The Axis product shall be installed within the secured area.

  • Page 5: Informations Sur La Sécurité

    • Replace only with an identical battery or a battery which is or a third party. recommended by Axis. • Use only spare parts provided by or recommended by Axis. • Dispose of used batteries according to local regulations or the battery manufacturer's instructions.
  • Page 6 Transport • Ne pas exposer ce produit Axis aux vibrations, aux chocs ou aux fortes pressions. • Lors du transport du produit Axis, utilisez l'emballage • Ne pas installer ce produit sur des supports, surfaces ou d'origine ou un équivalent pour éviter d'endommager le murs instables.
  • Page 7 Kabel angeschlossen wurden. • Das Axis Produkt darf nicht montiert werden, während es • Wenn der Tür-Controller an einer Wand installiert wird, mit Strom versorgt wird. Schalten Sie die Stromversorgung muss die Aussparung für die Kabel nach unten zeigen.

  • Page 8: Informazioni Di Sicurezza

    • Il prodotto Axis deve essere utilizzato in conformità alle leggi e alle disposizioni locali. • Per utilizzare il prodotto Axis in ambienti esterni, o in • Durante il trasporto del prodotto Axis, utilizzare ambienti simili, è necessario installarlo in una custodia per l'imballaggio originale o equivalente per evitare danni al esterni approvata.

  • Page 9: Información De Seguridad

    La batteria non deve essere sostituita se non richiesto, ma nel legislación y la normativa locales. caso in cui questo fosse necessario, contattare l'assistenza • Para usar el producto de Axis en exteriores, o en entornos Axis all'indirizzo www.axis.com/techsup per ottenere le similares, debe instalarse en una carcasa exterior aprobada.
  • Page 10 Transporte • Cuando transporte el producto de Axis, utilice el embalaje original o un equivalente para evitar daños en el producto. Batería Este producto de Axis utiliza una batería de litio BR/CR2032 de 3,0V como fuente de alimentación del reloj interno en...
  • Page 11 Please keep this document for future reference. Label here ©2006-2013 Axis Communications AB. Axis is a registered trademark. All other company names and products are trademarks or registered trademarks of their respective companies. We reserve the right to introduce modifications without notice.
  • Page 12 Page 12 AXIS A1001 Installation Guide - Quick Reference...
  • Page 13 Page 13 AXIS A1001 Installation Guide - Quick Reference...
  • Page 14 Page 14 AXIS A1001 Installation Guide - Quick Reference Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3...
  • Page 15 Page 15 AXIS A1001 Installation Guide - Quick Reference 192.168.0.90 AXIS IP Utility www.axis.com/techsup...
  • Page 16 Page 16 AXIS A1001 Installation Guide - Quick Reference...
  • Page 17 Page 17 AXIS A1001 Installation Guide - Quick Reference...
  • Page 18 Page 18 AXIS A1001 Installation Guide - Quick Reference...
  • Page 19 Page 19 AXIS A1001 Installation Guide - Quick Reference...
  • Page 20 Page 20 AXIS A1001 Installation Guide - Quick Reference...

  • Page 21: Network Connector

    Page 21 AXIS A1001 Installation Guide - Quick Reference AWG 28–16 (CSA) AWG 30–14 (cUL/UL) All output circuits are Class 2 power limited. * Max cable length: 30 m (98.4 ft) READER I/0 1 & 2 Power & Relay connector DC output: 12 V DC, max 500 mA...
  • Page 22 Page 22 AXIS A1001 Installation Guide - Quick Reference Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3...
  • Page 23 Page 23 AXIS A1001 Installation Guide - Quick Reference...
  • Page 24 Page 24 AXIS A1001 Installation Guide - Quick Reference www.axis.com/warranty...
  • Page 26 Ver.3.0 Installation Guide - Quick Reference Printed: May 2015 AXIS A1001 Network Door Controller Part No. 1468382 © Axis Communications AB, 2015...
