INSTALLATION
(continued)
FIBER
• Locate or build 10BASE-FL-compliant fiber cable with male two-
stranded TX to RX connectors at both ends.
• Connect male TX and RX cable connectors at one end of cable to
TX and RX female connectors, respectively, on media converter.
• Connect male TX and RX cable connectors at other end of cable
to RX and TX connectors of 802.3 compliant fiber device.
OPERATION
After installation, the media converter should function without operator
intervention.

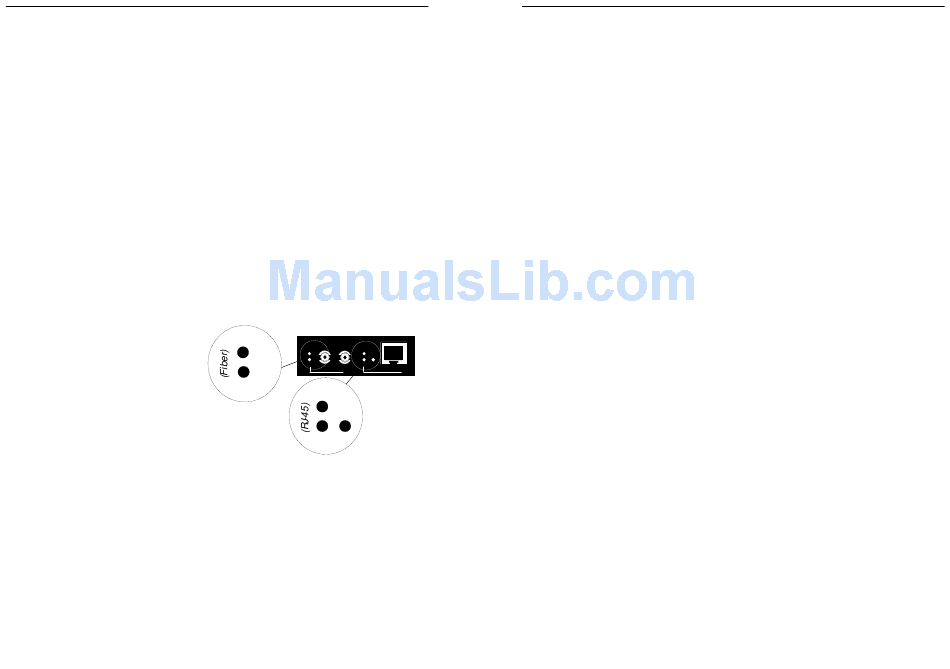

Status LEDs
Use the status LEDs to monitor media converter operation in the network.
Link
(near 10BASE-FL connector)
10BASE-FL link and normal operation.
Dark LED
indicates lack of
power OR
downed
10BASE-FL link.
RX (Receive -
near
10BASE-FL
) Flashing green
connector
LED indicates data reception
on 10BASE-FL link.
Link
(near 10BASE-T connector)
10BASE-T link and normal operation.
Dark LED indicates lack of power OR downed 10BASE-T
link.
RX (Receive -
near 10BASE-T connector
indicates data reception on 10BASE-T link.
P(o)w(e)r Steady green LED indicates connection to external AC
power.
Steady green LED indicates good
ST Connectors
Link
TX RX
Link
Link
Pwr
RX
RX
10BASE-T
10BASE-FL
RJ-45 Connector
RX
Link
10BASE-T
Pwr
RX
Steady green LED indicates good
) Flashing green LED
FAULT ISOLATION and CORRECTION
If the media converter fails, isolate and correct the fault by determining the
answers to the following questions and then taking the indicated action:
1. Is the P(ower) LED on the media converter illuminated?
NO
• Is the media converter inserted properly into the E-MCC-1600
chassis?
• Contact Technical Support at (800) 260-1312/ (800) LAN-WANS.
YES
• Proceed to step 2.
2. Is the green 10BASE-T
Link
NO
• Check twisted pair cables for proper connection.
• Contact Technical Support: (800) 260-1312/(800) LAN-WANS.
YES
• Proceed to step 3.
3. Is the green 10BASE-FL
NO
• Check fiber cables for proper connection.
• Verify that TX and RX cables on media converter are connected to
RX and TX ports, respectively, on other device.
• Contact Technical Support: (800) 260-1312/(800) LAN-WANS.
YES
• Proceed to step 4.
4. Is the amber 10BASE-T RX LED illuminated?
NO
• Restart the workstation to restart the initialization process.
• Contact Technical Support: (800) 260-1312/(800) LAN-WANS.
YES
• Proceed to step 5.
5. Is the amber 10BASE-FL RX LED illuminated?
NO
• Restart the workstation to restart the initialization process.
• Contact Technical Support: (800) 260-1312/(800) LAN-WANS.
YES
• Contact Technical Support: (800) 260-1312/(800) LAN-WANS.
LED illuminated?
LED illuminated?
Link
