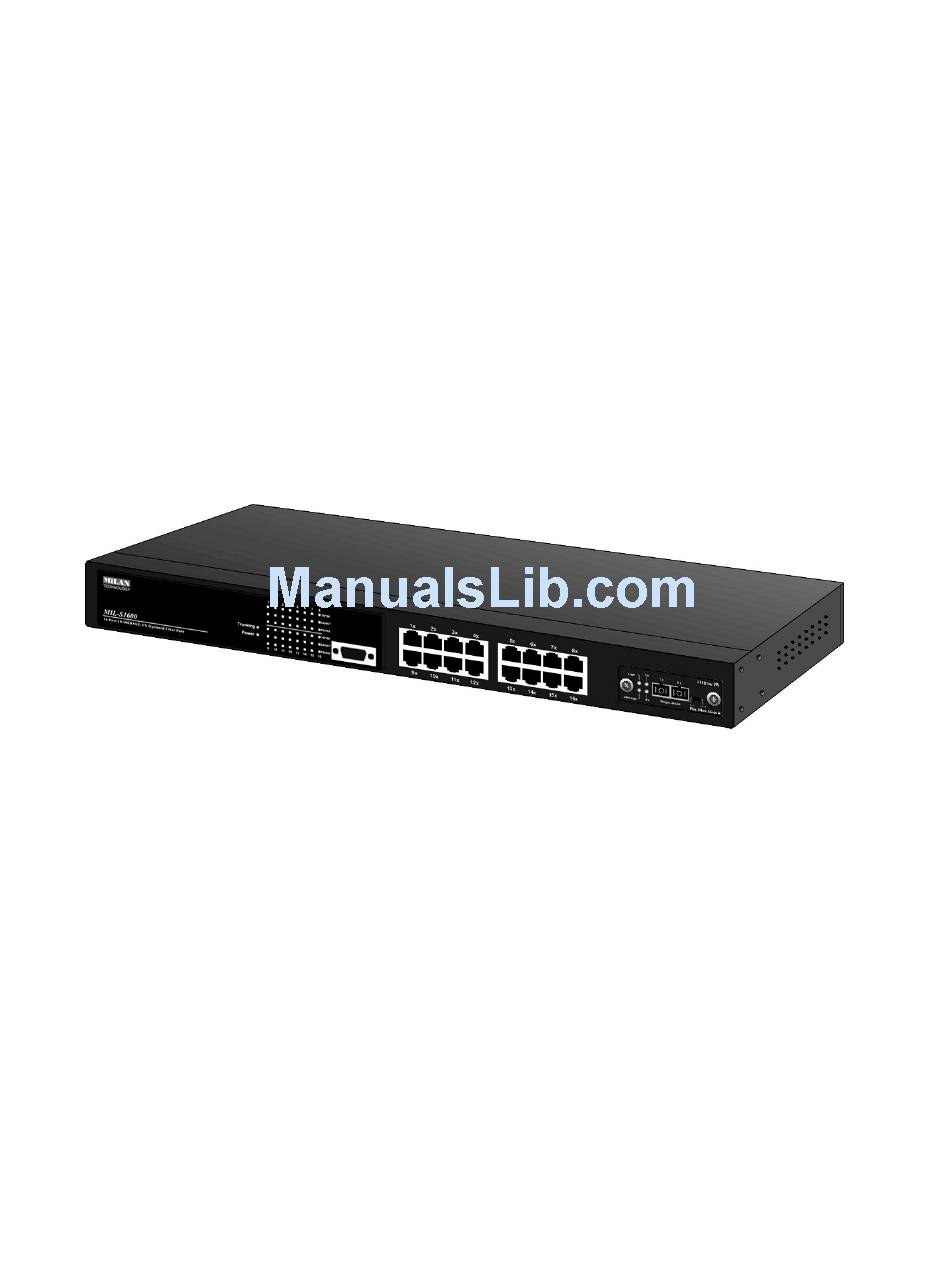

- Page 1 MIL-S1600 16 port Ethernet 10/100 Mbps Switch User’s Guide With optional 100FX Modules --- SC, ST, MTRJ and VF-45 connectors...
- Page 2 EN60950 (IEC950) - Product Safety Five-Year Limited Warranty MiLAN Technology warrants to the original consumer or purchaser that each of it's products, and all components thereof, will be free from defects in material and/or workmanship for a period of five years from the original factory shipment date. Any warranty hereunder is extended to theoriginal consumer or purchaser and is not assignable.
-
Page 3: Table Of Contents
Contents 1. Introduction…….…………….…………….……….…… Features …………………………………………..…..…….……..2 Package Contents ………………………..…..……….………..3 2. Hardware Description ………………..….…..…...…… Front Panel ………………………………………...…...………… 4 LED Indicators …………………………………………………… 5 Real Panel …………………………………………….………….. 6 Desktop Installation ……………………….…….……………….. 6 Rack-mounted Installation …...…………….…………………… 7 3. Optional Fiber Modules ……………..……….……… Front Panel …………………………………...…...….….…..… 10 Features/ Specifications …………….………………..….……. -
Page 4: Introduction

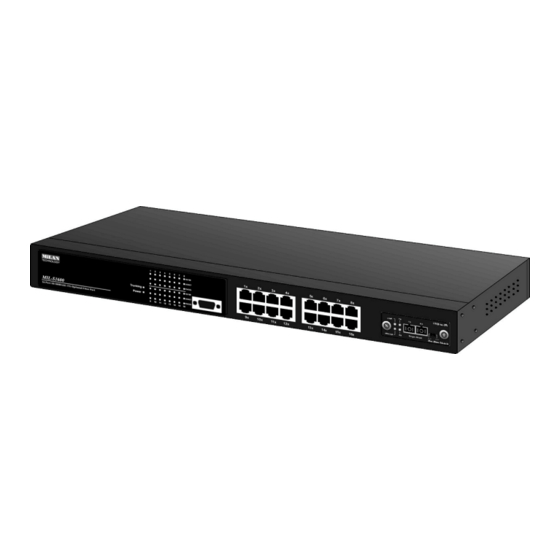

Introduction The MIL-S1600 is a 16 port 10/100Base-TX switch that can be used to build high-performance switched networks. The store-and-forward architecture offers low latency for high-speed networking for workgroups or departments in any business. Figure 1-1. The MIL-S1600 switch The MIL-S1600 has 16 auto-sensing 10/100Base-TX Ethernet RJ-45 ports plus one extension slot for an optional one port 100Base-FX fiber module enabling long-distance connectivity. -
Page 5: Features
Features Conforms to IEEE 802.3, 802.3u, and 802.3x Ethernet Standards Auto-negotiation for the 10/100Base-TX ports Automatic MDI/MDIX crossover for each 10Base-T/ 100Base-TX port One Extension Slot for 100Mbps Fiber Backpressure for Half-duplex mode, and Flow control for Full-duplex Store-and-forward switching architecture 8K-entry MAC address table and automatic address learning 4M memory buffer sharing Console port for limited management support... -
Page 6: Package Contents
Package Contents Unpack the contents of the MIL-S1600 and verify them against the checklist below. n MIL-S1600 Switch n Power Cord n Four Rubber Feet n Console Cable n User Guide Rack Mount Ears Figure 1-2. Package Contents If any item list above is missing or damaged, please contact your local dealer... -
Page 7: Hardware Description
Hardware Description Front Panel The Front Panel of the MIL-S1600 consists of 16 auto-sensing 10/100Base- TX Ethernet RJ-45 ports, a console port, and an extension slot for a 100Base- FX Fiber Module. The LED Indicators are also located on the front panel of the switch. -
Page 8: Led Indicators
Figure 2-2. LED indicators Status Description Green Power On Power Power is not connected This switch is trunking into another MIL-S1600, MIL-SM801 or Green MIL-SM800 switch Trunking No trunking, which is the default Green The port is operating at the speed of 100Mbps... -
Page 9: Rear Panel
Rear Panel The 3-pronged power plug is located at the rear panel of the MIL-S1600 as shown in Figure 2-2. The switch has autosensing power in the range of 100-240V AC, 50-60Hz. Figure 2-2. The Rear Panel Desktop Installation Set the switch on a sufficiently large flat space with a power outlet nearby. -
Page 10: Rack-Mounted Installation
Rack-mounted Installation A rack-mounting kit is provided with the MIL-S1600 and the switch can be mounted in an EIA standard size 19-inch rack allowing it to be placed in a wiring closet. Perform the following steps to rack mount the switch: Position one bracket to align with the holes on one side of the switch and secure it with the smaller bracket screws. - Page 11 Figure 2-6. Mounting the MIL-S1600 in an EIA standard 19-inch Rack Note: For proper ventilation, allow at least 4 inches (10 cm) of clearance on the front and 3.4 inches (8 cm) on the back of the switch. This is especially important for enclosed rack installation.
-
Page 12: Optional Fiber Modules
Optional Fiber Modules This section introduces the optional 100FX modules, which can be installed on the front panel of the MIL-S1600 switch. Each optional 100FX Module supports a one-port fiber connector. The 100FX Modules are designed to extend the distance between the MIL- S1600 and other devices. -
Page 13: Front Panel
Front Panel The front of the 100Base-FX modules have four LED-indicators, two thumbscrews, a DIP-switch for forcing full or half duplex and one fiber connector. The front panels of the 100FX modules are shown as below. Figure 3-2. 100FX module with SC connector Figure 3-3. -
Page 14: Features/ Specifications
Control standard n One-port 100Base-FX fiber module n LED-indicators for TX, RX, Link, and FDX/COL 4 LEDs. n A DIP-switch on the fiber module to select Full-duplex or Half-duplex for the port n Maximum Forwarding Rate: 148810 pps for 100Base-FX n Dimensions: 102mmx 71mmx 24mm n Weight : 60 ±5g... -
Page 15: Installing 100Fx Module
4. Gently push the thumbscrews in and turn clockwise to tighten. Do not over tighten the thumbscrews. 5. Power the MIL-S1600 ON, and the switch will automatically detect the fiber module. Plug the fiber cable connector into the 100FX Module. -
Page 16: Network Application
Network Application The MIL-S1600 is designed to be used as a segment switch. With its 8000 MAC address table and high performance, it is ideal for interconnecting networking segments. You can use the MIL-S1600 to connect PCs, workstations, and servers to each other by connecting these devices directly to the switch. -
Page 17: Segment Bridge
In the illustration below, two Ethernet switches with PCs, print servers, and a local server are all connected to the MIL-S1600 switch. All the devices in this network can communicate with each other through the MIL-S1600 switch. -
Page 18: Vlan Application
LAN so that packets are switched only between ports within the same VLAN, creating secure segments. The VLANs on the MIL-S1600 are only local VLANs and can not be associated with VLANs on any other switch. A port can be configured to be a member of several VLANs. -
Page 19: Network Configuration
Network Configuration for limited management The MIL-S1600 switch does not need to be configured in order to operate as a layer 2 switch. All ports are auto-sensing and the switch automatically learns addresses and sends packets to the correct port without involving management. - Page 20 Figure 5-1. Connecting the MIL-S1600 to a terminal via RS-232 cable After connecting the Switch and PC, run a terminal emulation program or Hyper Terminal to match the following default characteristics of the console port: Baud Rate: 9600 Data Bits: 8...
-
Page 21: Port Setup
Main Menu The Main Menu shows all options available from Console Configuration. The Main Menu Screen and sub-menus for these options are described as below. Figure 5-3. The Main Menu Screen Note: If the fiber module is not pre-installed, item 7 Fiber will not show. After any configuration changes, select item six, "Apply current configuration", in order for any changes to take affect. -
Page 22: Speed/Duplex Setup
Figure 5-4. Port Setup If you want to modify the port status, you must use the “m” key to select the port that you want to change status. After selecting the port, press “space bar” to change the port status, which has two modes, Enabled or Disabled. -
Page 23: Vlan Setup
A VLAN (Virtual Local Area Network) is a group of switch ports designated by the switch as belonging to the same broadcast domain. VLANs on the MIL-S1600 isolate broadcast traffic, increase security and create limited broadcast domains to prevent traffic congestion. The port- based VLANs on this switch are locally defined and do not exist outside of this switch. -
Page 24: Trunk Setup
The maximum number of port that can be trunks is six, giving a pipe of 1200Mbps. It is possible to have two different sets of ports trunked. The ports on the MIL-S1600 can be trunked with ports on MiLAN switches MIL-S1600, MIL-SM801 or MIL-SM800. Trunking is not supported with any other switches. - Page 25 Main Menu, “ Load Default Setup". All changes to the switch configuration are erased and all options go back to default or the original factory settings. Be aware that as soon as you select option 5, all configurations are lost.
-
Page 26: Technical Specification
Technical Specification Specifications of the MIL-S1600 Standard IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX/FX Fast Ethernet ANSI/IEEE 802.3 Auto-negotiation Protocol CSMA/CD Max Forwarding 14,880 pps per Ethernet port, Rate 148,800 pps per Fast Ethernet port LED Indicators Per Port: 10/100 UTP: 100M, LK/ACT, FD/COL( 3 LEDs) - Page 28 P/N 90000386_A...
