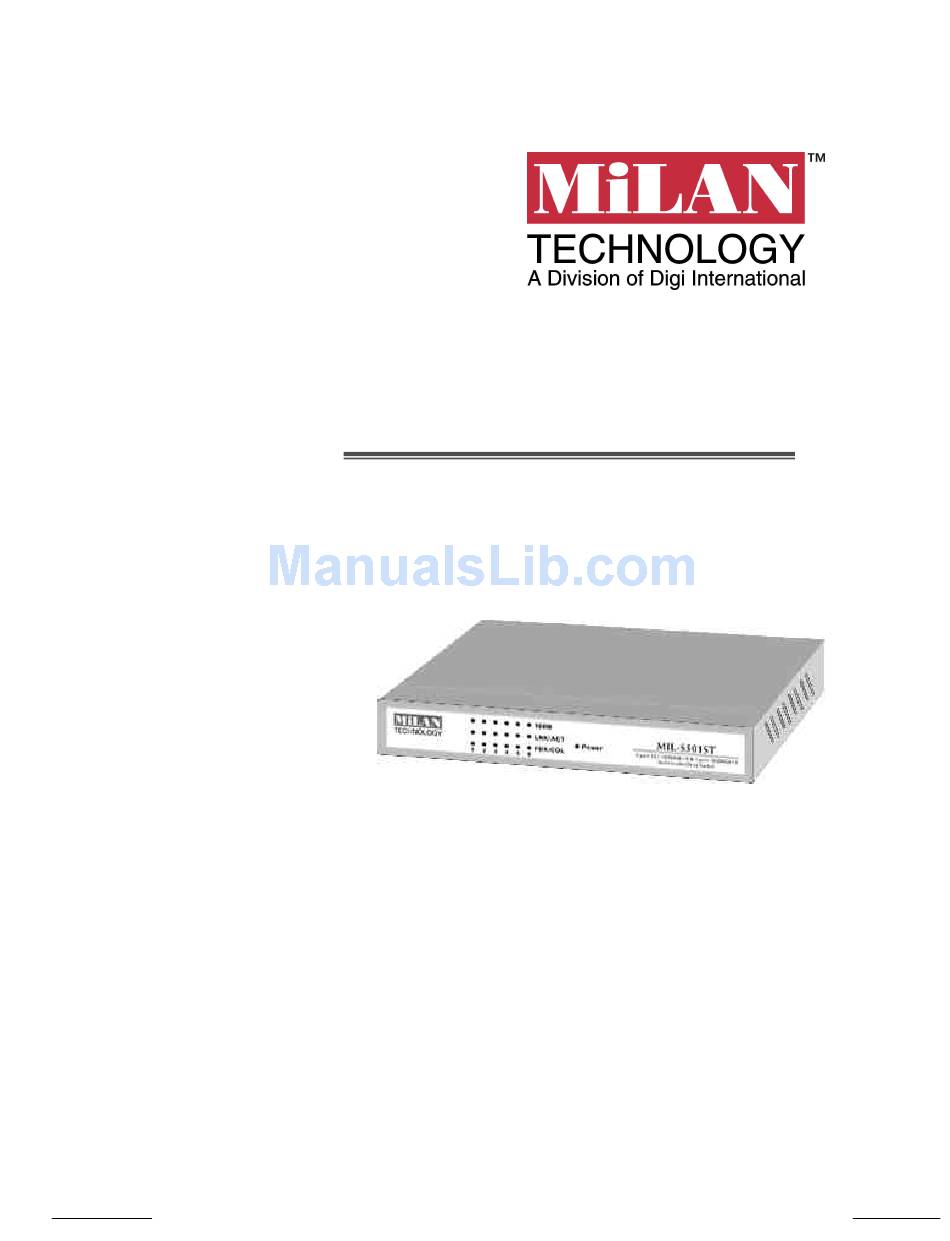

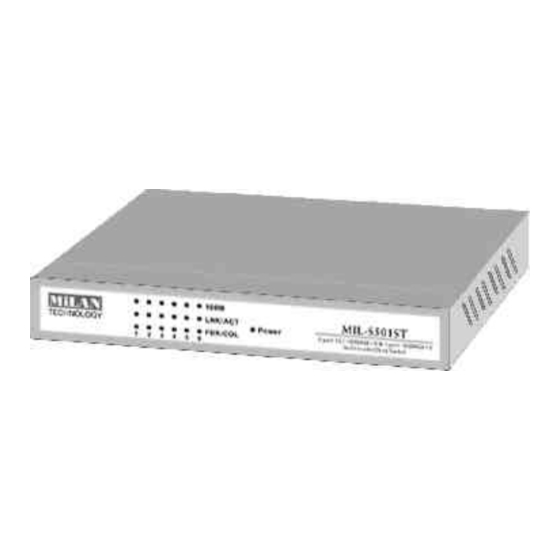

MIL-S501xx Series
5x 10/100 N-Way RJ-45 Ports
plus One 100Base-FX fiber Port
MIL-S501ST with ST connector (2km)
MIL-S501SC with SC connector (2km)
MIL-S501SC-15 with SC connector (15km)
MIL-S501SC-40 with SC connector (40km)
MIL-S501SC-70 with SC connector (70km)
MIL-S501MT with MT-RJ connector (2km)
MIL-S501MT-15 with MT-RJ connector (15km)
MIL-S501VF with VF-45 connector (2km)
MIL-S501VF-15 with VF-45 connector (15km)
1
Advertisement
Table of Contents
Related Manuals for MiLAN MIL-S501MT-15
Summary of Contents for MiLAN MIL-S501MT-15
- Page 1 MIL-S501SC with SC connector (2km) MIL-S501SC-15 with SC connector (15km) MIL-S501SC-40 with SC connector (40km) MIL-S501SC-70 with SC connector (70km) MIL-S501MT with MT-RJ connector (2km) MIL-S501MT-15 with MT-RJ connector (15km) MIL-S501VF with VF-45 connector (2km) MIL-S501VF-15 with VF-45 connector (15km)
-
Page 2: Fcc Statement
Five-year Limited Warranty MiLAN Technology warrants to the original consumer or purchaser that each of its products and all components thereof, will be free from defects in material and/or workmanship for a period of five years from the original factory shipment date. Any warranty hereunder is extended to the original consumer or purchaser and is not assignable. -
Page 3: Table Of Contents
Contents 1. Introduction…….………………………….……….… 4 Features …………………………………………..….….…… 5 Package Contents ………………………..………………... 6 2. Hardware Description …………………..…..……… Front Panel …………………...……...………………….…… 7 LED Indicators …………………...……...…………..….…… 8 Rear Panel ……………………………………………………. 9 3. Network Application ……………..……….………… Desktop Application …………………….…………...…..… 12 Collapsed Backbone Application ………………….…..… 13 4. -
Page 4: Introduction
Computer networks have proven to be one of the fastest modes of communication. The MIL-S501xx is a compact desktop size switch that is an ideal solution for small office or home office network user. It provides wire-speed, Fast Ethernet switching function that allows high- performance, low-cost connection. -
Page 5: Features
Features 5X 10/100Mbps Fast Ethernet UTP switch ports MDI uplink port for easy expansion One 100Mbps Fast Fiber port 1 Dip-Switch to select fiber port full-duplex or half-duplex mode N-Way auto-negotiation supported Full-duplex and half-duplex supported Store-and forward switching architecture for abnormal packet... -
Page 6: Package Contents
MIL-S501XX Rubber Feet DC power Adapter User’s Manual Warranty Card Figure1-2. Package Contents Compare the contents of your MIL-S501xx package with the standard checklist above. If any item is missing or damaged, please contact your local dealer for service. -
Page 7: Hardware Description
6.50 in. x 3.94 in. x .95 in. Front Panel The LED indicators are located on the frond panel of the switch. They provide a real-time indication of systematic operation status. The Front Panel of the MIL-S501xx is displayed in Figure 2-1. -
Page 8: Led Indicators
LED Indicators The following table provides descriptions of the LED statuses and meaning. LED Status Color Power Green The power of unit is On Green The port is operating at the speed of 100Mbps. 100M Green The port is successfully connecting with the device. LNK / Blinks Yellow The port is operating in Full-duplex mode. -
Page 9: Rear Panel
Rear Panel The Rear Panel of the MIL-S501xx consists of 5x 10/100 N-Way UTP switch ports, Uplink Port, one 100Base-FX fiber port, 1 DIP- switch to select fiber port full-duplex or half-duplex mode, and DC power connector. There are five types of fiber connectors available for the convenience of your connectivity. - Page 10 MIL-S501xx with ST Connector Figure 2-4. The Rear Panel of the MIL-S501xx with ST Connector MIL-S501xx with MT-RJ Connector Figure 2-5. The Rear Panel of the MIL-S501xx with MT-RJ Connector MIL-S501xx with VF-45 Connector Figure 2-6. The Rear Panel of the MIL-S501xx with VF-45 Connector...
- Page 11 RJ-45 Ports: Five 10/100 N-Way auto-sensing for 10Base-T or 100Baes-TX connections. Uplink Port: One uplink port to cascade to a hub or switch, with the maximum distance between the switch to another device is 100 meters. 100Base-FX Fiber Port: There are 5 types of fiber connectors available for the MIL-S501xx as shown above.
-
Page 12: Network Application
Desktop Application The MIL-S501xx is designed to be a compact desktop size switch that is an ideal solution for small workgroup. The Switch can be used as a standalone switch to which personal computers, server, printer server are connected to form small workgroup. -
Page 13: Collapsed Backbone Application
The Up-link Port is the same port as port 1, but the pin assignment has been designed to contain crossover pinout. That is to say, you can connect this port to hub or switch without crossover cable. Figure 3-2. Collapsed Backbone Application In the above illustration, two MIL-S501xx are used to interconnect two small workgroups via fiber cable. -
Page 14: Trouble Shooting
You may check whether network interface (e.g., a network adapter card on the attached device), network cable, or switch port is defective or not. Verify that the switch and attached device are power on. Be sure the cable is plugged into both the switch and corresponding device. - Page 15 Cabling A. RJ-45 ports: Use unshielded twisted-pair (UTP) or shield twisted-pair (STP) cable for RJ-45 connections: Category3, 4 or 5 cable for 10Mbps connections or Category 5 cable for 100Mbps connections. Also be sure that the length of any twisted-pair connection does not exceed 100 meters (328 feet).
-
Page 16: Technical Specification
Technical Specification Specification Standards IEEE 802.3 10Base-T Ethernet, Compliance IEEE 802.3u 100Base-TX/FX Fast Ethernet ANSI/IEEE 802.3 N-Way auto-negotiation Protocol CSMA/CD Max Forwarding Rate 14,880 pps per Ethernet port, 148,800 pps per Fast Ethernet port Max Filtering Rate LED Indicators Per Port: 5 port N-Way: 100M, LK/ACT, FD/COL (3 LEDs) 100M Fiber: LK/ACT, FD/COL (3 LEDs) Per Unit: Power... -
Page 17: Appendix
Appendix What is Switch Ethernet ? With a high-speed backplane, it is possible to have all ports communicating at wire speed with minimal latency and low packet loss A-1. 100Base-T Technology Review The 100BaseT standard retains 10BaseT's critical 100-meter maximum cable length between the hub and desktop. With 100BaseT, the maximum number of repeater Hubs is two. -
Page 18: A-2. Fast Switching Technology
With a high-speed switch backplane, it is possible to have all ports communicating at wire speed with minimal latency and low packet loss. - Page 19 For networks experiencing a shortage of bandwidth, the introduction of a 10Mbps switch will only move the bottleneck from the hub to the 10Mbps-server pipe. A minimal improvement will be apparent, due mainly to the decrease in the number of packet collisions.
-
Page 20: Store-And-Forward Switching
Full-duplex Full duplex is a transmission method that effectively doubles the bandwidth of a link between a network card and a switch. It disables the collision detection mechanism, so the card and the switch can transmit and receive concurrently at full wire speed on each of the transmit and receive paths.
