Page 1: User Guide

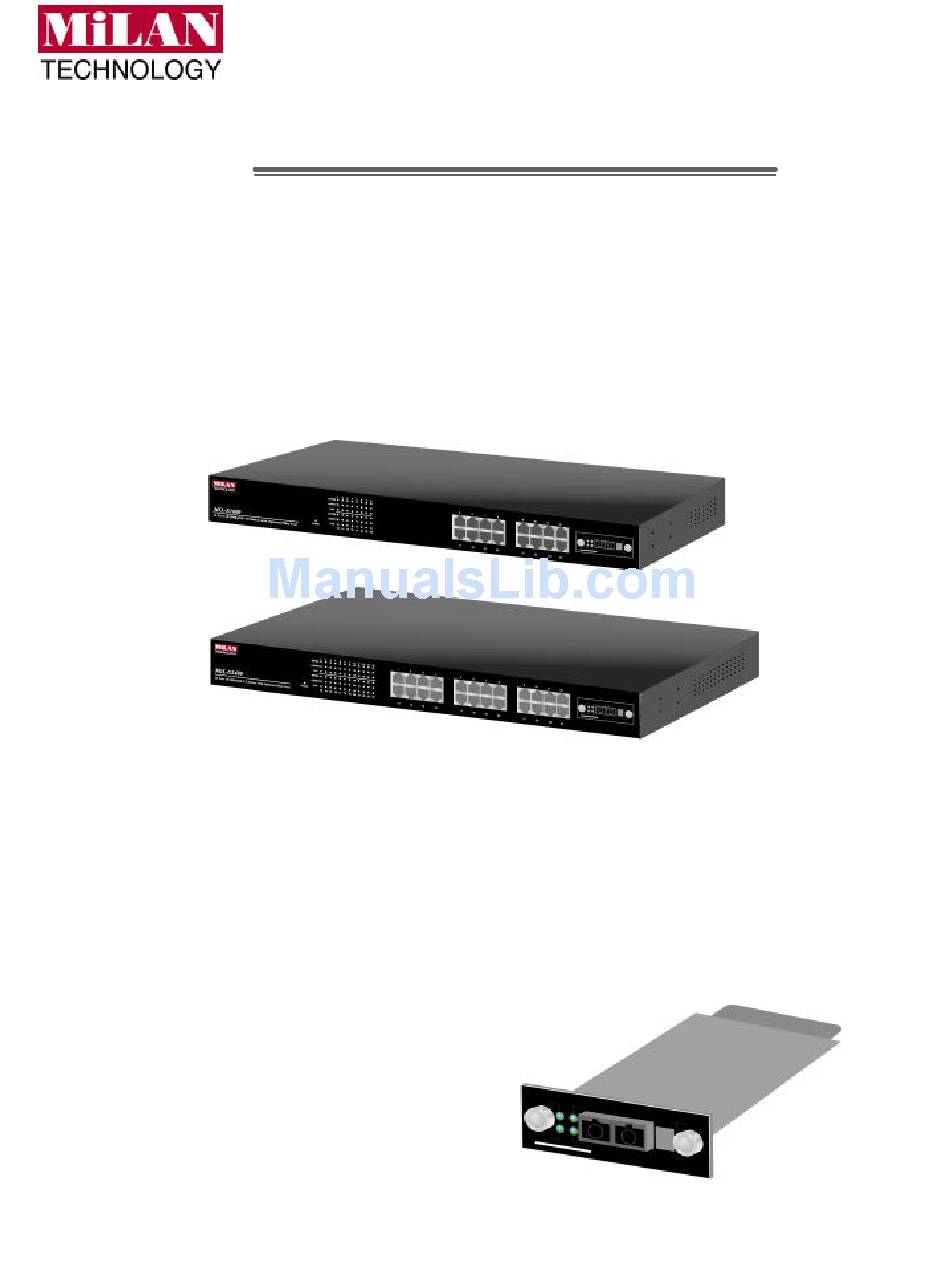

MIL-S2400 & MIL-S1600 Fast Ethernet Switch 16 or 24 10/100 Mbps auto-sensing ports with optional 1 port 100Mbps Fiber Module User Guide With Optional Fiber 100BASE-TX Extension 100Base-FX with Module with SC/ST/MT-RJ/ VF-45 Multi-mode and Single-mode... - Page 2 EN60950 (IEC950) - Product Safety Five-Year Limited Warranty MiLAN Technology warrants to the original consumer or purchaser that each of it's products, and all components thereof, will be free from defects in material and/or workmanship for a period of five years from the original factory shipment date. Any warranty hereunder is extended to theoriginal consumer or purchaser and is not assignable.
-
Page 3: Table Of Contents
Contents 1. Introduction…….…………….…………….……….………….…… Features …………………………………………..…..…….… Package Contents ………………………..…..……….……… Ethernet Switching Technology ………………….…………… 2. Hardware Description ………………..….…..…...………….………… Front Panel ………………………………………...…...………… LED Indicators ……………………………………………………. Real Panel …………………………………………….………….. Desktop Installation ……………………….…….……………….. Rack-mounted Installation …...…………….…………………… 3. Optional Fiber Modules ………….…..……….…………….………… Front Panel …………………………………...…...….….…..… Features/ Specifications …………….………………..….……. Installing 100Base-FX Module ………………………………………. -
Page 4: Introduction
Switching brings a whole new way of thinking to networking. The MIL-S2400 and MIL-S1600 Switches are multi-port Switches that can be used to build high- performance switched workgroup networks. These switches are store-and-forward devices that offer low latency for high-speed networking. -
Page 5: Features
4K-entry MAC address table LED-indicators for Power, 10/100M, LK/ACT, Full 19” Standard Rack-mount Package Contents Unpack the contents of the MIL-S2400 or MIL-S1600 Switch and verify them against the checklist below. MIL-S2400 or MIL-S1600 Switch Power Cord Four Rubber Feet... -
Page 6: Hardware Description
Switch. Front Panel The Front Panel of the MIL-S2400 and MIL-S1600 Switches consists of 16 or 24 10/100Base-TX RJ-45 ports ( Auto MDI/MDIX ) and slot for 100Base-FX Fiber Module. The LED Indicators are also located on the front panel of the Switch. -
Page 7: Led Indicators
The LED Indicators gives a real-time information of systematic operation status. The following table provides descriptions of LED status and their meaning. Status Description Green Power On Green The port is operating at the speed of 100Mbps. 100M No device attached or in 10Mbps mode Green The port is active with device(s) attached Blinks... -
Page 8: Desktop Installation
The 3-pronged power plug, On/Off switch, and ventilation fan are located at the rear panel of the MIL- S2400 and MIL-S1600 Switches as shown in Figure 2-2. The Switch will work in the range 100-240V AC, 50-60Hz. Figure 2-3. The Rear Panel of MIL-S2400 and MIL-S1600 Switches Desktop Installation A. -
Page 9: Rack-Mounted Installation
Rack-mounted Installation The MIL-S2400 and MIL-S1600 switches includes a rack-mounted kit and can be mount in an EIA standard size, 19-inch Rack, enabling the switch to be placed in a wiring closet with other equipment. Perform the following steps to rack mount the switch: A. -
Page 10: Optional Fiber Modules
Optional Fiber Modules This section introduces the optional 100Base-FX Modules which can be installed on the front panel of the MIL-S2400 and MIL-S1600 Switches. Each optional 100Base-FX Module has a one- port fiber connector. The 100Base-FX Modules are designed to extend the distance between switch and other devices. - Page 11 MIL-S2416ST MIL-S2416MT MIL-S2416VF...
-
Page 12: Features/ Specifications
One-port 100Mbps optical fiber module LED-indicators for TX, RX, Link, and FDX/COL (4 LEDs) One DIP-switch to select fiber port for Full-duplex or Half-duplex. Max. Forwarding Rate: 148810 pps for 100Base-FX (Wire speed) Dimensions: 102mmx 71mmx 24mm ( 4” x 2.8” x 1” ) Weight : 60 ±5g... -
Page 13: Installing 100Base-Fx Module
Gently push the thumbscrews in and turn clockwise to tighten. Do not over tighten the thumbscrews. Power MIL-S2400 and MIL-S1600 Switches ON, and the Switch will automatically detect the 100Base-FX Module. Plug the fiber cable connector into the 100Base-FX Module. Check the... -
Page 14: Troubleshooting
If the power indicator does turn on when the power cord is plugged in, you may have a problem with power outlet, or power cord. However, if the Switch powers off after running for a while, check for loose power connections, power losses or surges at power outlet. If you still cannot resolve the problem, contact your local dealer for assistance. -
Page 15: Technical Specification
External Power 100-240V AC, 50-60Hz Output rate: +5V/2A, +3.3V/8A Power Consumption MIL-S1600 :10 Watts ( Max ) MIL-S2400 :13 Watts ( Max ) FCC Class A, CISPR 22 Class A, CE Mark Safety UL, cUL and TUV EIA/TIA-568 100-ohm (100m ) - Page 16 P/N: 90000372_A...
