MIL-S1600S

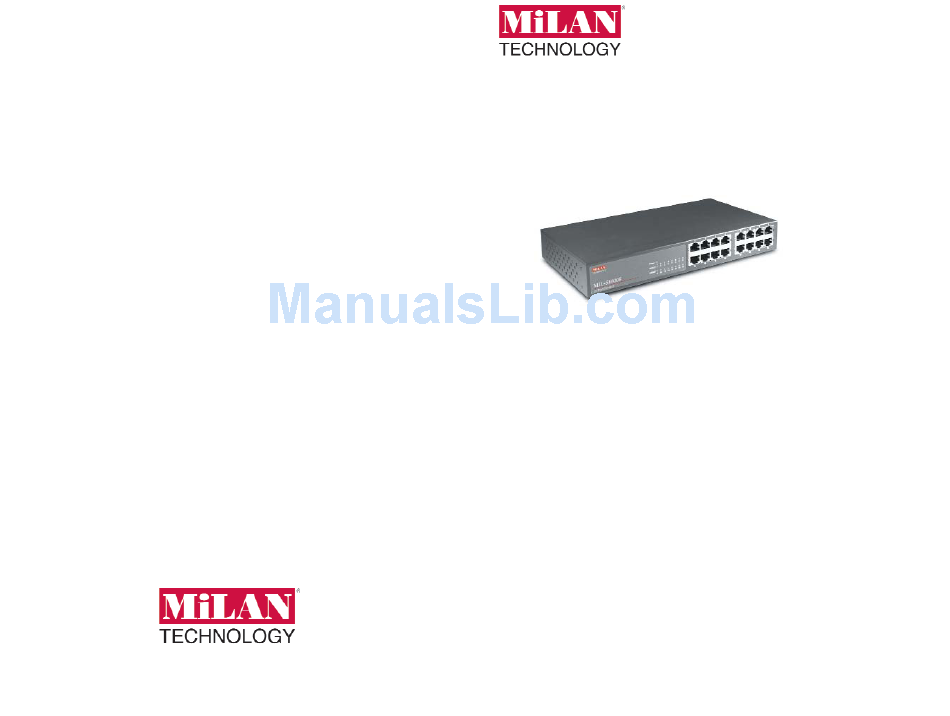

User's Guide
The MIL-S1600S switch is a sixteen port switch that can be used to
build high-performance switched workgroup networks. This switch is
a store-and-forward device that offers low latency for high-speed net-
working. The MIL-S1600S switch has 16 auto-sensing 10/100Base-
TX RJ-45 ports with auto MDI/MDIX and features a "store-and-for-
ward " switching scheme. This allows the switch to auto-learn and
store source address on an 8K-entry MAC address table. Auto
MDI/MDIX allows connection to another switch or workstation without
changing non-crossover or crossover cabling.
1
Advertisement
Table of Contents
Related Manuals for MiLAN MIL-S1600S
Summary of Contents for MiLAN MIL-S1600S
- Page 1 MIL-S1600S User’s Guide The MIL-S1600S switch is a sixteen port switch that can be used to build high-performance switched workgroup networks. This switch is a store-and-forward device that offers low latency for high-speed net- working. The MIL-S1600S switch has 16 auto-sensing 10/100Base- TX RJ-45 ports with auto MDI/MDIX and features a "store-and-for-...
- Page 2 Any warranty hereunder is extended to the original consumer or purchaser and is not assignable. MiLAN Technology makes no express or implied warranties including, but not limited to, any implied warranty of mer- chantability or fitness for a particular purpose, except as expressly set forth in this warranty. In no event shall MiLAN Technology be liable for incidental or consequential damages, costs, or expenses arising out of or in connection with the performance of the product delivered hereunder.
-
Page 3: Troubleshooting Features
• Full wire speed forwarding rate. • 8K-entry MAC address table. • LED-indicators for Power, Link/Active. Package Contents Unpack the contents of the MIL-S1600S switch and verify them against the checklist below. • MIL-S1600S switch • Power Cord • User Guide Compare the contents of your MIL-S1600S switch package with the standard checklist above. -
Page 4: Hardware Description
Hardware Description Front Panel The Front Panel of the MIL-S1600S switch consists of 16 10/100Base-TX RJ-45 ports The LED Indicators are also located on the front panel of the switch. RJ-45 Ports (Auto MDI/MDIX): 16 10/100 auto-sensing for 10Base-T or 100Base-TX connections. (In general, MDI means con- necting to another hub or switch while MDIX means connecting to a workstation or PC.
