RH Baby&child DRAKE QUEEN Assembly Instructions

PARTS INCLUDED:
HEADBOARD PANEL
A [1]
FOOTBOAR PANEL
B [1]
SIDE RAILS
C [2]
STRETCHER BARS
D [3]
E [2] PLATFORM PANELS
SUPPORT LEGS
F [3]
TOOLS NEEDED:
Phillips-head Screwdriver (not included)
ASSEMBLY INSTRUCTIONS:

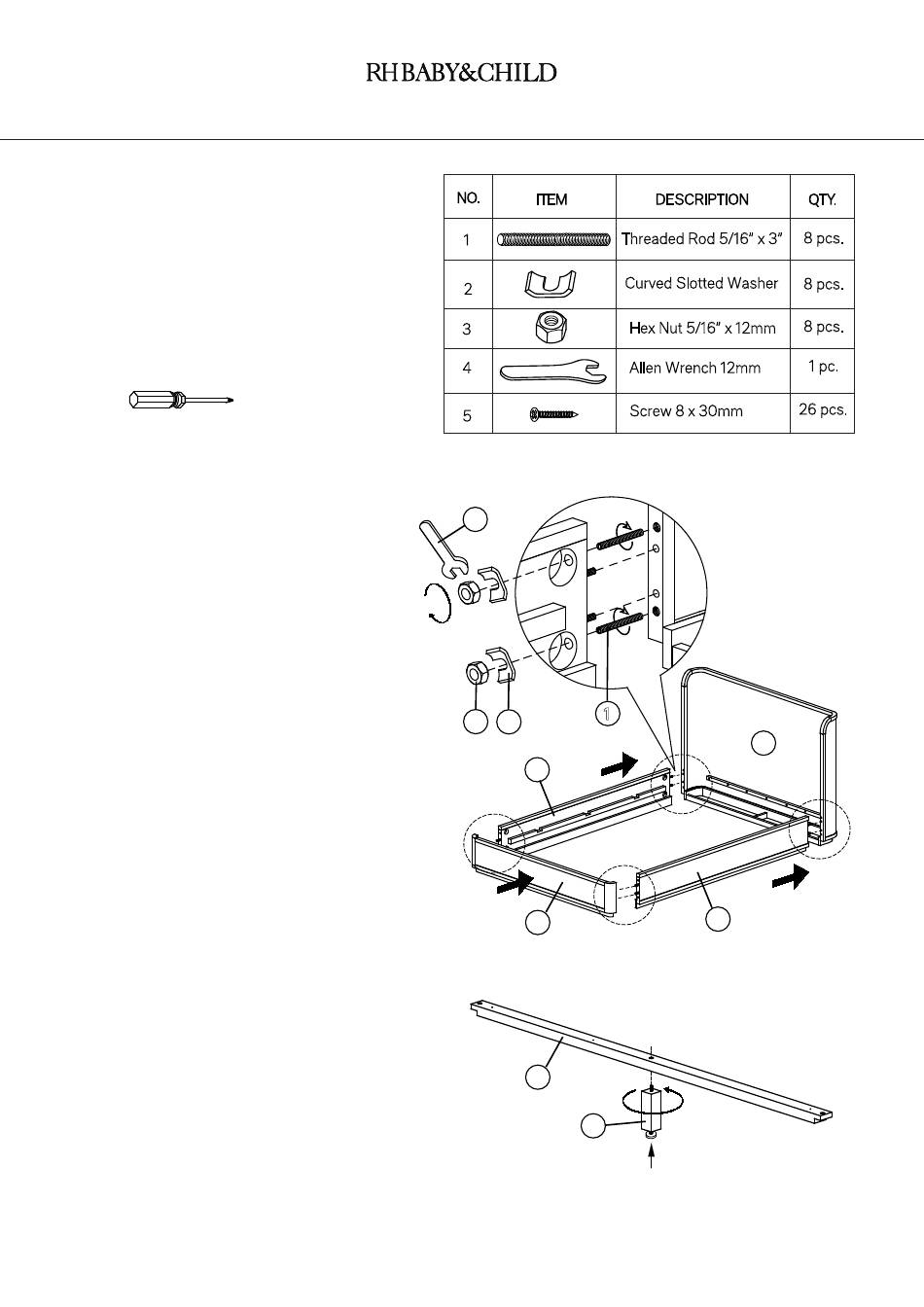

STEP 1:
Place the Headboard (A) upright in the
position you wish the bed to be in
when fully assembled. The Headboard
bed fast hardware should be facing the
inside, toward the mattress.
Secure the Threaded Rod (1) to the
Headboard (A). Raise the Side Rails (C)
up and place the rod into the Side Rails
(C) at the bore holes' position, insert
Curved Slotted Washer (2) and tighten
Hex Nuts (3) using Wrench (4).
Repeat the procedure with the side rail
end and Footboard (B).
STEP 2:
Tighten the Support Legs (F) to the
bottom of Stretcher Bars (D).
.
D R A K E Q U E E N / F U L L B E D I N S T R U C T I O N S
NO.
Page 1 of 2
ITEM
Threaded Rod 5/16" x 3"
1
Curved Slotted Washer
2
Hex Nut 5/16" x 12mm
3
4 Allen Wrench 12mm
Screw 8 x 30mm
5
4
1
3 2
C
B
D
F
DESCRIPTION QTY.
8 pcs.
8 pcs.
8 pcs.
1 pc.
26 pcs.
A
C
Can be adjusted
by using Levelers.
