DEVYN TUFTED WING BED - ASSEMBLY INSTRUCTIONS

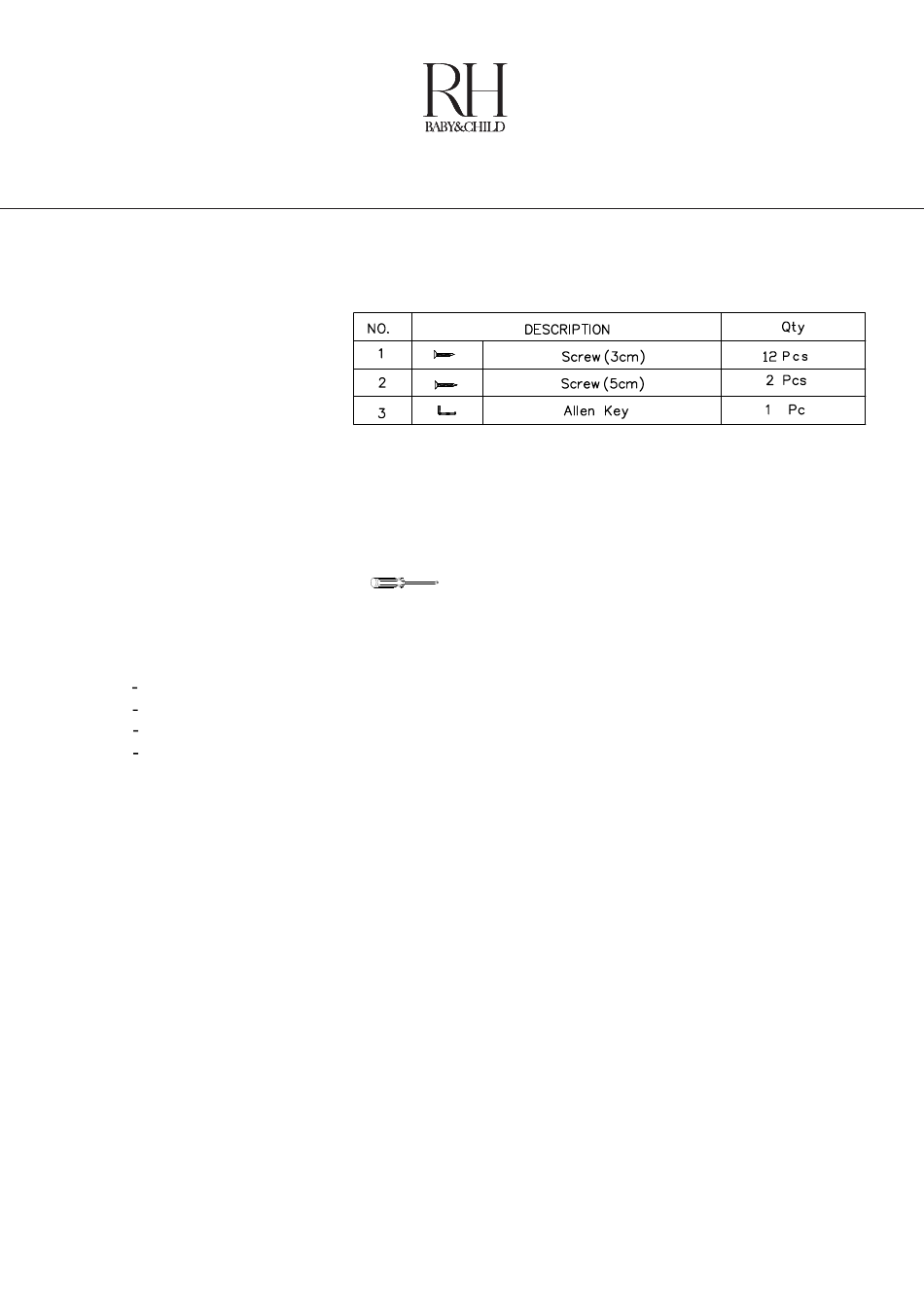

PARTS INCLUDED

A. SIDE RAILS (2)
B. FOOTBOARD (1)
C. HEADBOARD (1)
D. CENTER SUPPORT SLAT (1)
E. SLAT ROLL (1)
E. CENTER SUPPORT SLAT FOOT (WITH ADJUSTABLE GLIDE) (1)

TOOLS NEEDED

Phillips-head Screwdriver (not included)
ASSEMBLY INSTRUCTIONS
Bed must be assembled by at least two people.
Please read instructions carefully before assembling bed.
Use the above parts and hardware list to identify each component.
Keep all packing materials until assembly is complete to avoid loss of smaller parts.
1.
Lay protective material on floor to prevent damage. Place the Headboard (C) flat on the protective material.
2. Stand the Headboard (C) upright and hook Side Rails (A) into Headboard (C) as shown in the Diagram I.
3. Repeat the procedure with the Footboard (B) as shown in Diagram II.
4. Attach the Center Support Slat Foot (F) to the Center Support Slat (D) as shown in Diagram III.
5. Place the Center Support Slat (D) into the U shaped brackets on Side Rails (A), then screw the end of the slats into
the U shaped brackets using Screw ( ) as shown in Diagram IV.
-
6. Place the Slat Roll (E) into the cleats on the inside of the Headboard (C) and Footboard (B).
Screw the ends of the slats into the cleats using Screws (1), as shown in Diagram V.
-
2
