3onedata IPS3110 Series Quick Installation Manual

IPS3110 Series
Unmanaged Industrial Ethernet
Switch Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check whether the package and accessories are intact
while using the switch for the first time.
1. Industrial Ethernet switch
3. Quick installation guide
5. DIN-Rail mounting attachment
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】

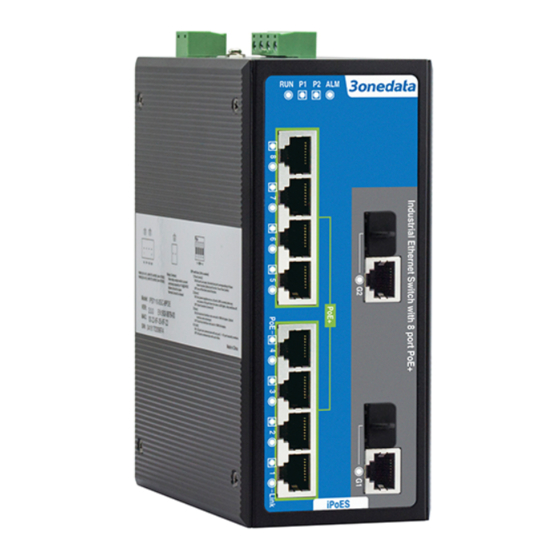

This series are unmanaged industrial Ethernet switches.
Models as follows:
Model I. IPS3110-2GC-8POE (2 Gigabit Combo + 8 100M
PoE copper ports)
Model II. IPS3110-2GC-4T-4POE (2 Gigabit Combo + 4
100M copper ports + 4 100M PoE copper ports)
【Panel Design】
Top view, Bottom view and Rear view,

Front view

Nanshan District,
2. Certification
4. Warranty card
1. Grounding screw
2. Relay alarm output terminal block
3. Console port
4. Power supply input terminal block (PWR1, PWR2)
5. DIP switch
6. DIN-Rail mounting kit
7. Power supply indicator
8. Alarm indicator
9. System running indicator
Model I Model Il
10. POE port indicator
11. 10/100Base-T(X)POE port
12. Ethernet Link/Act indicator:
13. Gigabit SFP port of Combo port
14. Gigabit copper port of Combo port
15. 10/100Base-T(x) copper port
【Mounting Dimension】
Unit: mm
Attention before mounting:
Dont place or install the device in area near water or

moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;

please dont directly contact to avoid scalding.
【DIN-Rail Mounting】
For convenient usage in industrial environments, the product
adopts 35mm DIN-Rail mounting, mounting steps as below:
