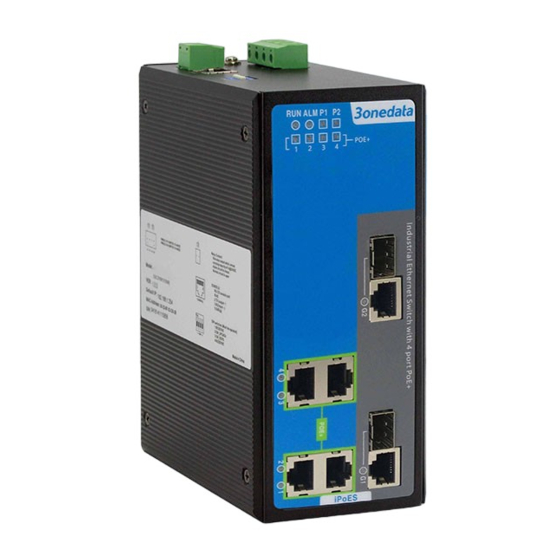

IPS716-2GC-4POE
Industrial PoE Switch User Manual
Shenzhen 3onedata Technology Co., Ltd.
Add: 3/B, Zone 1, Baiwangxin High Technology Industrial park,
Nanshan District, Shenzhen, 518108 China
Tel: +86-755-26702668
Fax: +86-755-26703485
E-mail: sales@3onedata.com
Website: www.3onedata.com
【Summarize】
IPS716-2GC-4POE is an industrial grade, managed and
redundancy PoE Ethernet switch. The IPS716-2GC-4POE switch
provides 4 ports Fast Ethernet PoE and 2 ports Combo Gigabit
SFP slots or 10/100/1000Base-T(X) ports. The PoE port supports
POE function (IEEE802.3af/at). It provided some kinds of
advanced network managed function, such as: SW-Ring
redundancy ring network, VLAN, LLDP, Trunking, Quality of
Service, Speed control, port mirroring and fault alarm. SW-Ring
can bring your Ethernet to intelligent redundancy. The -40～75℃
working temperature, can meet all kinds of industrial environment
requirement and provide the solution of the economy.
【Packing list】
The industrial PoE switch is shipped with the following items. If
any of these items are missing or damaged, please contact your
customer service representative for assistance.
Industrial PoE switch ⅹ 1
User manual ⅹ 1
Documentation and software CD ⅹ 1
DIN-Rail mounting kit ⅹ 1
Warranty card ⅹ 1
【Feature】
Support
IEEE802.3,
IEEE802.3u,
IEEE802.3z/ab, IEEE802.1Q, IEEE802.1p, IEEE802.1D/W
Compatible
with
both
IEEE802.3at(30W)
IEEE802.3af(15.4W)
Supports 2 Gigabit combo ports and 4 Fast Ethernet PoE
ports
SW-Ring ring network patent technology (Fault recovery
time<20ms)
Support RSTP for network redundancy
Support static multicast, IGMP Snooping and LLDP
Support Port based VLAN and IEEE802.1Q VLAN
Support QoS absolutely and opposite priority
- 1 -
Support WEB, SNMP and Telnet configuration
Support port status display, data update.
Industrial grade design, -40~75℃work temperature
IP40 protection grade, DIN rail mounted

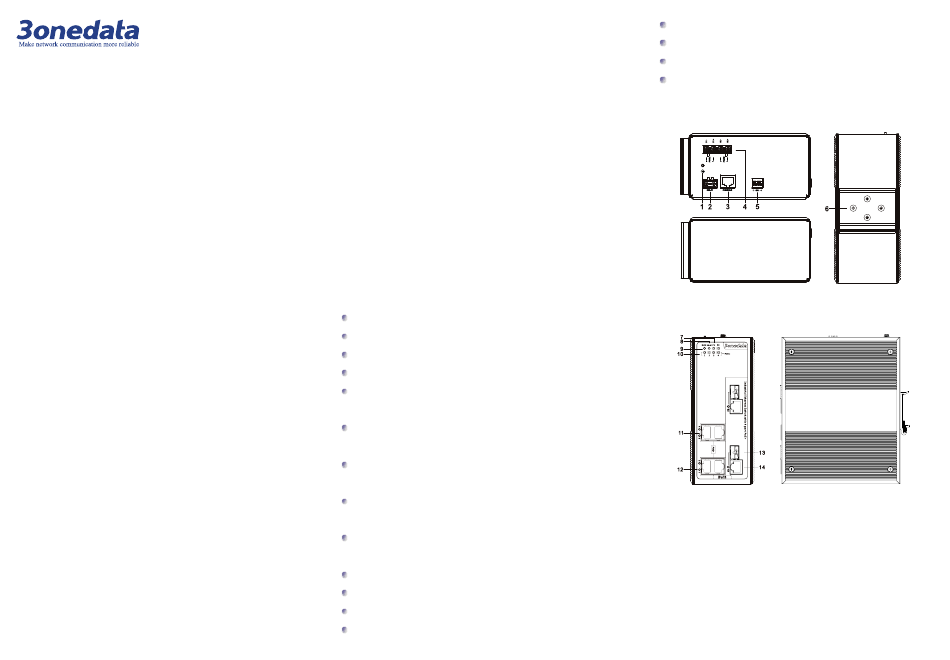

【Panel layout】
Vertical view and bottom view
Front view
IEEE802.3x,
and
1.
Ground screw
2.
Terminal block for relay output
3.
4.
Terminal block for power input (PWR1, PWR2)
5.
6.
DIN-Rail mounting kit
7.
Power input P1(P2) LED
8.
Relay alarm indicator
Rear view
Side view
