3onedata IPS7112G-4GS-8GPOE User Manual

IPS7112G-4GS-8GPOE
Industrial PoE Switch User Manual
Shenzhen 3onedata Technology Co., Ltd.
Add: 3/B, Zone 1, Baiwangxin High Technology Industrial
park, Nanshan District, Shenzhen, 518108 China
Tel: +86-755-26702668
Fax: +86-755-26703485
E-mail: sales@3onedata.com
Website: www.3onedata.com
【Summarize】
IPS7112G-4GS-8GPOE is an industrial grade, managed
and redundancy Ethernet switch which supports 8 Gigabit
PoE ports and 4 Gigabit SFP slots. The switches are
classified as power source equipment (PSE) which can be
used to power IEEE802.3af/at standard devices (PD),
eliminating the need for additional wiring. It provided some
kinds of advanced network managed function, such as:
SW-Ring redundancy ring network, STP/RSTP/MSTP, VLAN,
Trunking, 802.1X, SNMP, LLDP, SSH, Quality of Service,
Speed control, port mirroring, fault alarm and firmware
upgrade online. SW-Ring can bring your Ethernet to
intelligent redundancy. Standard Industry design, can
satisfied every requirement of the industry scene. All
components use industrial design, which makes product
high reliability. It provided wide voltage power supply input.
The switch accorded to CE, FCC standard and Industry
grade 4 design requirement, support 2 channel DC power
input and 1 channel relay alarm output, and -40～70℃
working temperature, can meet all kinds of industrial
environment requirement and provide the solution of the
economy.
【Packing list】
The industrial PoE switch is shipped with the following items.
If any of these items are missing or damaged, please
contact your customer service representative for assistance.
Industrial PoE switch ⅹ 1
User manual ⅹ 1
Documentation and software CD ⅹ 1
DIN-Rail mounting kit ⅹ 1
Warranty card ⅹ 1
【Feature】
Support IEEE802.3, IEEE802.3u,
IEEE802.3x, IEEE802.3af/at, IEEE802.1Q, IEEE802.1p,
- 1 -
IEEE802.1W/D, IEEE802.1s, IEEE802.3ad, IEEE802.1X
Support 8 10/100/1000Base-T(X) PoE RJ45 Ethernet
ports and 4 Gigabit SFP slots
SW-Ring ring network patent technology (Fault recovery
time<20ms）
Support STP/RSTP/MSTP to enhance network stability
Support IEEE802.1X, HTTPS, and SSH to enhance
network security
Support ACL function to enhance flexibility and security
of network management
Support static multicast, IGMP Snooping and GMRP
Support Port based VLAN and IEEE 802.1Q VLAN
Support QoS absolutely and opposite priority
Support bandwidth management and storm suppression
Support WEB, SNMP, LLDP and Telnet configuration
Support port mirror and port trunking
Support configuration file up and download
Support redundancy DC power supply(48VDC)
Support 1 channel relay alarm output
Industrial grade 4 design, -40-70℃ work temperature
IP40 protection grade, DIN-Rail mounting

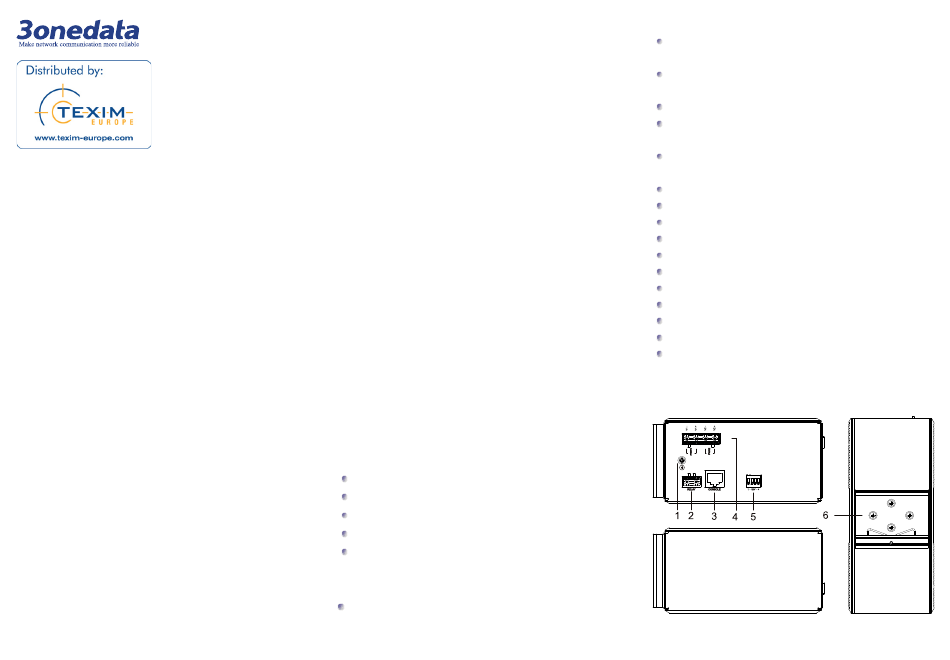

【Panel layout】
Vertical view and bottom view
IEEE802.3z/ab,
Rear view
