Control Setup - Capacity Control Setpoints Screens - Frick QUANTUM Operation

S90-010 O
Page 16
The "Control Setup" screen is accessible from the Main
Menu screen. The following are the "Control Setup" screen
selections:
[Capacity Control] - Shows a screen with selections
for the Capacity Control setpoints that were enabled in
Panel Setup. Only two types of Capacity Control set-
points can be enabled in Panel Setup. Only one Ca-
pacity Control mode can be active. The message "Ac-
tive - Current Capacity Control" displays at the selected
Capacity Control mode. The following setpoint displays
are possible:
•
Suction Pressure Mode 1
•
Suction Pressure Mode 2
•
Process Temperature Mode 1
•
Process Temperature Mode 2
•
Discharge Pressure Mode 1
•
Discharge Pressure Mode 2
•
Discharge Temperature Mode 1
•
Discharge Temperature Mode 2
[Compressor Safeties] - Shows a screen with selec-
tions to the compressor safeties displays. Following
are the compressor safeties screens:
•
Discharge Safeties
•
Suction Safeties
•
Entering Process Safeties (If applicable)
The following safety setpoint can be changed:
Hi Level Shutdown Delay - The time in seconds to
delay after the High Liquid Level input is ener-
gized before the compressor will shut down.

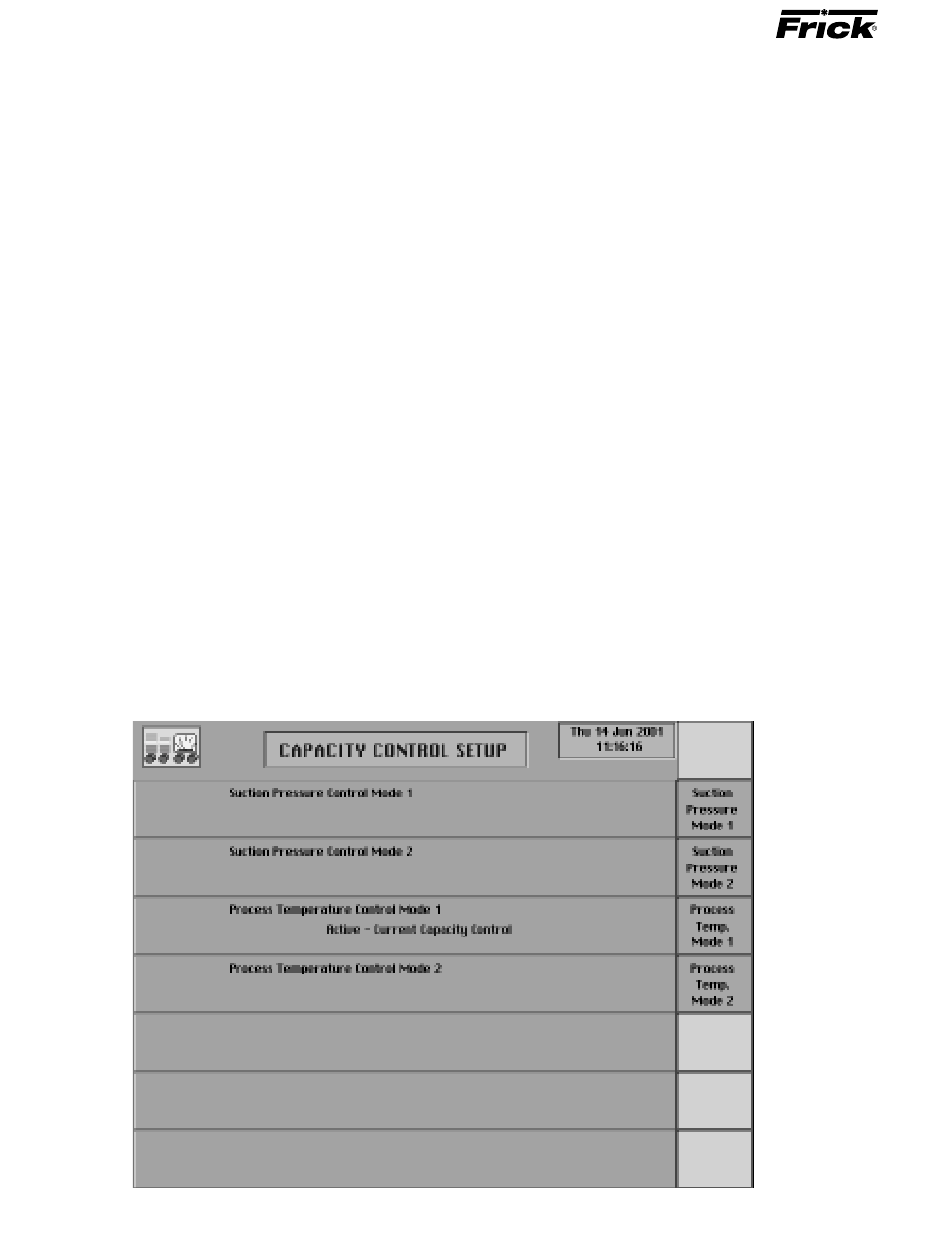

The Capacity Control selections that were enabled in Panel
Setup, are shown. Only two types of Capacity Controls can
FRICK QUANTUM CONTROL PANEL
OPERATION
CONTROL SETUP -
CAPACITY CONTROL SETPOINTS SCREENS
[Motor Setpoints]
[Oil Setpoints]
[Slide Valve Setpoints] (If applicable)
[Setback Setpoints]
[Options Setup] - Shows a screen with selections to
other screens of enabled options. The following screens
are possible:
•
Condenser Control (If applicable, see Panel
Setup)
•
Compressor Sequence Control or Compres-
sor Interlock (If applicable, see Panel Setup)
•
Input Module Capacity Control Selection (If
applicable, see Panel Setup)
•
Auxiliary Setup - Shows the "Auxiliary Setup"
display for the analog auxiliaries 1-2 setpoints.
(If applicable, see Panel Setup)
•
Suction Pull Down (If applicable, see Panel
Setup)
[Additional Auxiliaries] - Shows the "Auxiliaries Setup"
screen for the digital input auxiliaries 3-8 setpoints. (If
applicable, see Panel Setup)
[Auxiliary Analog] - Shows the "Auxiliary Analog"
screen for setup of the Auxiliary Analog Temperatures
and Pressures. (If applicable, see Panel Setup)
[Pumpdown/DX Circuit] (If applicable, see Panel Setup)
be enabled in Panel Setup. Each type of Capacity Control
has a Mode 1 and a Mode 2 setpoint screen.
