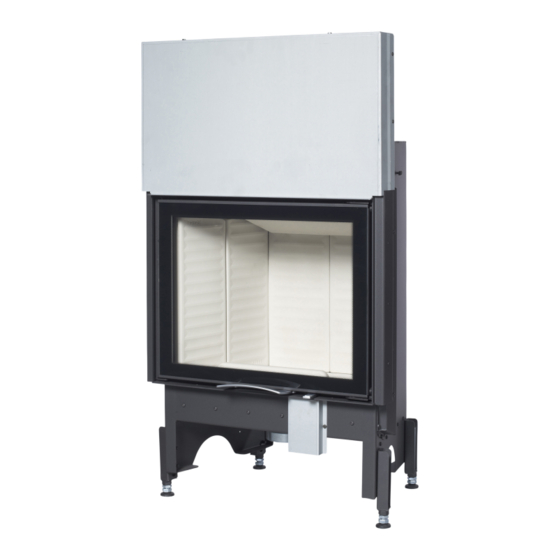

Austroflamm 65x51 S 2.0 Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
65x / 75x / 75x39 SII / 75x51 SII
80x64 / 80x64 SII
97x / 120x45
Operating manual
Fireplac inserts schieb flat +
II
www.austroflamm.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 65x51 S 2.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Austroflamm 65x51 S 2.0

Summary of Contents for Austroflamm 65x51 S 2.0

  • Page 1 65x / 75x / 75x39 SII / 75x51 SII 80x64 / 80x64 SII 97x / 120x45 Operating manual Fireplac inserts schieb flat + www.austroflamm.com...
  • Page 2 Tel: +43 (0) 7249 / 46 443 www.austroflamm.com info@austroflamm.com Edited by: Olivera Stojanovic Illustrations: Konstruktion Text: Technical department (Austroflamm) Copyright All Rights reserved. The contents of these instructions may be reproduced or distributed only with the consent of the publisher! Printing, spelling and typographical errors reserved.

  • Page 3: Table Of Contents

    Operating manual Fireplac inserts schieb flat + II Contents Contents General information ............................Copyright.............................. Regulations to be observed ....................... Purpose of the operating manual........................Storing the operating manual ......................Structure of the operating manual ....................Representations used.......................... Version control............................. Abbreviations ............................Safety ..................................
  • Page 4 Contents Operating manual Fireplac inserts schieb flat + II Multiple occupancy ..........................44 Flue pipe connecting pieces......................44 Fuel material/-quantity ............................45 Fuel material............................45 Fuel quantity............................47 Installation instructions ............................48 Set-up in front of or next to a wall to be protected ................. 48 Convection air cladding........................
  • Page 5 Operating manual Fireplac inserts schieb flat + II Contents 13.1 Initial Commissioning.......................... 93 14 Operation................................94 14.1 Controls..............................94 14.2 Before heating up..........................94 14.3 Fuel ................................ 95 14.4 Firing ..............................95 14.5 Heating..............................96 14.6 Putting on wood ..........................96 14.7 Heating in the transition period......................

  • Page 6: General Information

    Operating manual Fireplac inserts schieb flat + II General information You have decided in favour of an Austroflamm fireplace insert. Congratulations on your decision and thank you for your trust. Correct operation and care are essential for trouble-free operation and long service life. Likewise, please follow the instructions in the operating manual.

  • Page 7: Regulations To Be Observed

    Operating manual Fireplac inserts schieb flat + II 1 | General information Regulations to be observed • EN 13229 • DIN 18896 • DIN EN 13384 Part 1 and Part 2 • DIN 18160-1 Exhaust systems - Part 1 • EN 12831 •...

  • Page 8: Purpose Of The Operating Manual

    Storing the operating manual Store this manual in case you need it. The current version of the manual can be found on-line at our homepage www.austroflamm.com. Structure of the operating manual The table of contents can be found on page 3.

  • Page 9: Abbreviations

    Operating manual Fireplac inserts schieb flat + II 2 | Purpose of the operating manual Abbreviations Abbreviation Meaning Heat Memory System Fireplace insert Ceramic flue Convection cladding...

  • Page 10: Safety

    3 | Safety Operating manual Fireplac inserts schieb flat + II Safety In this manual we give you numerous safety instructions for the safe operation of your fireplace insert. These instructions are characterized differently as follows, depending on their importance: Importance of the safety instructions NOTICE Particular behaviour and/or activities that are required for safe working.

  • Page 11: Special Types Of Danger And Personal Protective Equipment

    Operating manual Fireplac inserts schieb flat + II 3 | Safety Special types of danger and personal protective equipment For certain activities such as installation/dismantling, particular care must be taken that the following safety equipment is worn: Safety gloves Safety shoes...

  • Page 12: Product Overview

    Operating manual Fireplac inserts schieb flat + II Product overview Intended use The Austroflamm fireplace inserts described in this manual are manufactured and tested with a type A1 self-closing and locking door under EN test EN 13229. NOTICE Operation is only permissible with the door closed.
  • Page 13 Operating manual Fireplac inserts schieb flat + II 4 | Product overview 75x39/51 SII 2.0 Width (body installation dimension) [mm] Door frame, height [mm] 390/510 Pane curvature straight on both sides Width [mm] Depth [mm] Height [mm] 1123-1323 / 1284-1484 Weight [kg] 186/202 Nominal heat efficiency [kW]...

  • Page 14: Positioning Of The Nameplates

    4 | Product overview Operating manual Fireplac inserts schieb flat + II 4.2.2 Positioning of the nameplates Here we show where you can find the nameplate. You received a copy of the nameplate with the fire- place insert. You can find a copy of the nameplate of your fireplace insert on the back of the manual you get with your fireplace insert.

  • Page 15: Technical Data

    Technical data Technical data under Directive (EU) 2015/1185 and del. as per Regulation (EN) 2015/1186 5.1.1 65x51-S-2.0 Contact details for the manufacturer or their authorized representative Manufacturer: Austroflamm GmbH Contact: Address: Austroflamm-Platz 1 4631 Krenglbach Austria Appliance details Model identification(s): 65x51-S-2.0...
  • Page 16 5 | Technical data Operating manual Fireplac inserts schieb flat + II Lignite briquettes Peat briquettes Briquettes made from a mixture of fossil fuels Other fossil fuels Briquettes made from a mixture of biomass and fossil fuels Other mixture of biomass and solid fuels (*) PM = dust, OGC = organic gaseous connections, CO = carbon monoxide, NOx = nitrogen oxide (**) Only required when using correction factors F(2) or F(3).

  • Page 17: 65X57-S-2.0

    2 and 3.) Specifications are made here for the preferred fuel only. 5.1.2 65x57-S-2.0 Contact details for the manufacturer or their authorized representative Manufacturer: Austroflamm GmbH Contact: Address: Austroflamm-Platz 1 4631 Krenglbach Austria Appliance details Model identification(s): 65x57-S-2.0...
  • Page 18 5 | Technical data Operating manual Fireplac inserts schieb flat + II Peat briquettes Briquettes made from a mixture of fossil fuels Other fossil fuels Briquettes made from a mixture of biomass and fossil fuels Other mixture of biomass and solid fuels (*) PM = dust, OGC = organic gaseous connections, CO = carbon monoxide, NOx = nitrogen oxide (**) Only required when using correction factors F(2) or F(3).

  • Page 19: 75X39-S-2.0

    2 and 3.) Specifications are made here for the preferred fuel only. 5.1.3 75x39-S-2.0 Contact details for the manufacturer or their authorized representative Manufacturer: Austroflamm GmbH Contact: Address: Austroflamm-Platz 1 4631 Krenglbach Austria Appliance details Model identification(s): 75x39-S-2.0...
  • Page 20 5 | Technical data Operating manual Fireplac inserts schieb flat + II Peat briquettes Briquettes made from a mixture of fossil fuels Other fossil fuels Briquettes made from a mixture of biomass and fossil fuels Other mixture of biomass and solid fuels (*) PM = dust, OGC = organic gaseous connections, CO = carbon monoxide, NOx = nitrogen oxide (**) Only required when using correction factors F(2) or F(3).

  • Page 21: 75X39-Sii-2.0

    2 and 3.) Specifications are made here for the preferred fuel only. 5.1.4 75x39-SII-2.0 Contact details for the manufacturer or their authorised representative Manufacturer: Austroflamm GmbH Contact: Address: Austroflamm-Platz 1 4631 Krenglbach Austria Appliance details Model identification(s): 75x39-SII-2.0...
  • Page 22 5 | Technical data Operating manual Fireplac inserts schieb flat + II Peat briquettes Briquettes made from a mixture of fossil fuels Other fossil fuels Briquettes made from a mixture of biomass and fossil fuels Other mixture of biomass and solid fuels (*) PM = dust, OGC = organic gaseous connections, CO = carbon monoxide, NOx = nitrogen oxide (**) Only required when using correction factors F(2) or F(3).

  • Page 23: 75X57-S-2.0

    2 and 3.) Specifications are made here for the preferred fuel only. 5.1.5 75x57-S-2.0 Contact details for the manufacturer or their authorized representative Manufacturer: Austroflamm GmbH Contact: Address: Austroflamm-Platz 1 4631 Krenglbach Austria Appliance details Model identification(s): 75x57-S-2.0...
  • Page 24 5 | Technical data Operating manual Fireplac inserts schieb flat + II Peat briquettes Briquettes made from a mixture of fossil fuels Other fossil fuels Briquettes made from a mixture of biomass and fossil fuels Other mixture of biomass and solid fuels (*) PM = dust, OGC = organic gaseous connections, CO = carbon monoxide, NOx = nitrogen oxide (**) Only required when using correction factors F(2) or F(3).

  • Page 25: 75X51-S-Ii-2.0

    2 and 3.) Specifications are made here for the preferred fuel only. 5.1.6 75x51-S-II-2.0 Contact details for the manufacturer or their authorized representative Manufacturer: Austroflamm GmbH Contact: Address: Austroflamm-Platz 1 4631 Krenglbach Austria Appliance details Model identification(s): 75x51-S-II-2.0...
  • Page 26 5 | Technical data Operating manual Fireplac inserts schieb flat + II Peat briquettes Briquettes made from a mixture of fossil fuels Other fossil fuels Briquettes made from a mixture of biomass and fossil fuels Other mixture of biomass and solid fuels (*) PM = dust, OGC = organic gaseous connections, CO = carbon monoxide, NOx = nitrogen oxide (**) Only required when using correction factors F(2) or F(3).

  • Page 27: 80X64-S-2.0

    2 and 3.) Specifications are made here for the preferred fuel only. 5.1.7 80x64-S-2.0 Contact details for the manufacturer or their authorised representative Manufacturer: Austroflamm GmbH Contact: Address: Austroflamm-Platz 1 4631 Krenglbach Austria Appliance details Model identification(s): 80x64-S-2.0...
  • Page 28 5 | Technical data Operating manual Fireplac inserts schieb flat + II Peat briquettes Briquettes made from a mixture of fossil fuels Other fossil fuels Briquettes made from a mixture of biomass and fossil fuels Other mixture of biomass and solid fuels (*) PM = dust, OGC = organic gaseous connections, CO = carbon monoxide, NOx = nitrogen oxide (**) Only required when using correction factors F(2) or F(3).

  • Page 29: 80X64-S-Ii-2.0

    2 and 3.) Specifications are made here for the preferred fuel only. 5.1.8 80x64-S-II-2.0 Contact details for the manufacturer or their authorised representative Manufacturer: Austroflamm GmbH Contact: Address: Austroflamm-Platz 1 4631 Krenglbach Austria Appliance details Model identification(s): 80x64-S-II-2.0...
  • Page 30 5 | Technical data Operating manual Fireplac inserts schieb flat + II Peat briquettes Briquettes made from a mixture of fossil fuels Other fossil fuels Briquettes made from a mixture of biomass and fossil fuels Other mixture of biomass and solid fuels (*) PM = dust, OGC = organic gaseous connections, CO = carbon monoxide, NOx = nitrogen oxide (**) Only required when using correction factors F(2) or F(3).

  • Page 31: 97X45-S

    2 and 3.) Specifications are made here for the preferred fuel only. 5.1.9 97x45-S Contact details for the manufacturer or their authorized representative Manufacturer: Austroflamm GmbH Contact: Address: Austroflamm-Platz 1 4631 Krenglbach Austria Appliance details...
  • Page 32 5 | Technical data Operating manual Fireplac inserts schieb flat + II Peat briquettes Briquettes made from a mixture of fossil fuels Other fossil fuels Briquettes made from a mixture of biomass and fossil fuels Other mixture of biomass and solid fuels (*) PM = dust, OGC = organic gaseous connections, CO = carbon monoxide, NOx = nitrogen oxide (**) Only required when using correction factors F(2) or F(3).

  • Page 33: 97X74-S-2.0

    1) or g/kg for measurement in dilution tunnel (in compliance with Annexe III, number 4, let- ter a, section i, point 2 and 3.) Specifications are made here for the preferred fuel only. 5.1.10 97x74-S-2.0 Contact details for the manufacturer or their authorised representative Manufacturer: Austroflamm GmbH Contact: Address: Austroflamm-Platz 1 4631 Krenglbach Austria...
  • Page 34 5 | Technical data Operating manual Fireplac inserts schieb flat + II Peat briquettes Briquettes made from a mixture of fossil fuels Other fossil fuels Briquettes made from a mixture of biomass and fossil fuels Other mixture of biomass and solid fuels (*) PM = dust, OGC = organic gaseous connections, CO = carbon monoxide, NOx = nitrogen oxide (**) Only required when using correction factors F(2) or F(3).

  • Page 35: 120X45-S-2.0

    1) or g/kg for measurement in dilution tunnel (in compliance with Annexe III, number 4, let- ter a, section i, point 2 and 3.) Specifications are made here for the preferred fuel only. 5.1.11 120x45-S-2.0 Contact details for the manufacturer or their authorized representative Manufacturer: Austroflamm GmbH Contact: Address: Austroflamm-Platz 1 4631 Krenglbach Austria...
  • Page 36 5 | Technical data Operating manual Fireplac inserts schieb flat + II Peat briquettes Briquettes made from a mixture of fossil fuels Other fossil fuels Briquettes made from a mixture of biomass and fossil fuels Other mixture of biomass and solid fuels (*) PM = dust, OGC = organic gaseous connections, CO = carbon monoxide, NOx = nitrogen oxide (**) Only required when using correction factors F(2) or F(3).

  • Page 37: General Specifications

    Operating manual Fireplac inserts schieb flat + II 5 | Technical data Specification mg/m³ for heated filter method (in compliance with Annexe III, number 4, letter a, sec- tion i, point 1) or g/kg for measurement in dilution tunnel (in compliance with Annexe III, number 4, let- ter a, section i, point 2 and 3.) Specifications are made here for the preferred fuel only.

  • Page 38: Data For The Chimney/Flue Dimensioning

    Hypocaust heating**) Suitable subject to technical rules *) under examination **) The Austroflamm appliances marked with “suitable subject to technical rules” are suitable for oper- ation in closed systems (hypocausts) ***) at the device connection at nominal heat efficiency The design of the hypocaust must ensure the transport of heat and the even distribution of heat within the cladding so that no part of the heating chamber can be overheated.
  • Page 39 Operating manual Fireplac inserts schieb flat + II 5 | Technical data When the draft is too great, the draft must be limited. Ensuring the correct draft is a matter for the stove/tiled stove builder. For a chimney draft above 18 Pa it is urgently recommended that a throttle valve (available as an ac- cessory) be incorporated into the connecting piece! NOTICE Operation allowed only with closed firebox.

  • Page 40: Transport And Storage

    6 | Transport and storage Operating manual Fireplac inserts schieb flat + II Transport and storage Transportation Immediately checked the goods delivered for complete- ness and damage in transit. Before installing the fireplace insert, check that all movable parts are working. Any defects before the installation of the fireplace insert must be reported.

  • Page 41: Storage

    Operating manual Fireplac inserts schieb flat + II 6 | Transport and storage The counterweight of the sliding door is secured on each device side with a screw. Should the appliance have to be transported again, then it is vital to reinstall this transport lock screw so that the weight is safely secured.

  • Page 42: Requirements At The Installation Location

    Observe the guidelines on fire safety, such as thermal insulation and air grille sizes. DANGER Fire hazard Operating your Austroflamm fireplace insert with too high a fuel feed will create a risk of the chimney and adjacent components or furniture overheating. Combustion air supply For heat-producing appliances that draw their combustion air from the installation room an adequate supply of combustion air into the room must be provided.

  • Page 43: Combustion Air Duct

    (see state building regulations). Chimney requirements Before set-up or installation of the Austroflamm fireplace insert, the chimney must be checked for its size and quality under the existing local regulations (respectively state building regulations, heating regulations and DIN 18160, Part 1). The mathematical proof of the adequate function of the chimney must be provided in accordance with EN 13384.

  • Page 44: Multiple Occupancy

    Operating manual Fireplac inserts schieb flat + II Multiple occupancy All Austroflamm fireplace inserts in this manual have been checked and approved under DIN EN 13229 with self-closing and locking door (designated BA1). Appliances intended to operate BA1 can be connected to a multiple-occupied chimney (if multiple occupancy is possible). The calculation is made according to DIN EN 13384 Part 2.

  • Page 45: Fuel Material/-Quantity

    Operating manual Fireplac inserts schieb flat + II 8 | Fuel material/-quantity Fuel material/-quantity Fuel material Wood Many of our native types of wood can, after being appropriately dried, be burnt CO2-neutral in heat- producing appliances. Wood stands out because it grows again, can be sustainably harvested, re- quires little or no extra external energy to be invested in the fuel, and has a short journey from the pro- ducer to the consumer, which provides an optimal climate balance.
  • Page 46 8 | Fuel material/-quantity Operating manual Fireplac inserts schieb flat + II Please observe at all times the maximum specified amount to be laid, even when putting on more wood! Otherwise your fire will not provide the desired efficiency - but above all considerable damage may be caused to your appliance, to gaskets and material and to the flue gas duct.

  • Page 47: Fuel Quantity

    Operating manual Fireplac inserts schieb flat + II 8 | Fuel material/-quantity Approved fuel Dry, properly stored, unrefined log (preferably hard wood) is permitted as fuel for our hybrid stoves Round wood must be split at least once so that it lights better. The diameter of the split piece of wood must not exceed 7 cm.

  • Page 48: Installation Instructions

    9 | Installation instructions Operating manual Fireplac inserts schieb flat + II Installation instructions NOTICE Damage to the appliance The fireplace insert must not have any connection to the housing (minimum gap width 3 mm), as oth- erwise damage may be caused to the appliance. Set-up in front of or next to a wall to be protected 9 10 Fig. 5: Set-up in front of/next to a wall to be protected...

  • Page 49: Convection Air Cladding

    Operating manual Fireplac inserts schieb flat + II 9 | Installation instructions Fig. 6: Set-up in front of/next to a wall to be protected Wall / building wall Thermal insulation layer (flue pipe) Connector Thermal insulation layer (rear panel) Convection room Exterior air intake Concrete slab at least 6 cm (only when being set Ceiling...
  • Page 50 9 | Installation instructions Operating manual Fireplac inserts schieb flat + II 65x/75x Fig. 7: Casing 75x39 SII Fig. 8: Casing 80x64 S 97x45/74 S 120x45 S Fig. 9: Casing...

  • Page 51: Convection Space

    Operating manual Fireplac inserts schieb flat + II 9 | Installation instructions Convection space • If the convection cladding (appliance part) is not used, a convection space of at least 6 cm depth between fire- place insert (4) and insulation layer (16) to the rear and on both sides must be allowed for.

  • Page 52: Fireplace System Without Air Grille (Hypocaust)

    9 | Installation instructions Operating manual Fireplac inserts schieb flat + II Fireplace system without air grille (hypocaust) The convection air circulates within the closed cladding. The heat is emitted via radiation above the cladding. Protecting the installation base Installation bases (8) with flammable construction materials with a concrete slab (7) at least 6 cm thick (dimension E), which must be reinforced above installation bases without adequate lateral distribution, and above that by a thermal...

  • Page 53: Ceiling Above The Fireplace Insert

    Operating manual Fireplac inserts schieb flat + II 9 | Installation instructions 9.11 Ceiling above the fireplace insert If the cavity above the fireplace insert reaches as far as the room ceiling (8), then the latter must be protected if: •...

  • Page 54: Electric Cable Runs

    9 | Installation instructions Operating manual Fireplac inserts schieb flat + II Insulation materials Delivery Insulation capacity Upper maximum applic- Bulk density ation temperature Stone fibre Fibres, -300 granulate Slag fibre Felts -350 Lamin- -400 ated mat Mats -450 Slabs -500 Shells -550...

  • Page 55: Balanced Flue-Tested Fireplace Inserts

    Operating manual Fireplac inserts schieb flat + II 9 | Installation instructions 9.16 Balanced flue-tested fireplace inserts Flue pipe connection • The flue pipe connection must be permanently tight • The flue pipes used must be DIN EN 1856-2 tested. Combustion air connection: •...

  • Page 56: Connection To Ceramic Flues

    10 | Connection to ceramic flues Operating manual Fireplac inserts schieb flat + II Connection to ceramic flues The specifications given in advance in respect of mounting instructions and installation regulations re- main valid (see distances, thermal insulation, exhaust pipe connection). The appliances are particularly suitable for installation with ceramic flues.

  • Page 57: Stove With Ceramic Flue

    Operating manual Fireplac inserts schieb flat + II 10 | Connection to ceramic flues Make the operator of the stove aware that the system with a downstream heat recovery surface must only be operated with the door closed! 10.1 Stove with ceramic flue Example using KMS system Example with CVC flue module...

  • Page 58: Connection To Heat Recovery Surfaces

    10 | Connection to ceramic flues Operating manual Fireplac inserts schieb flat + II 10.2 Connection to heat recovery surfaces The specifications given in advance in respect of mounting instructions and installation regulations re- main valid (see distances, thermal insulation, exhaust pipe connection). The metallic heat exchanger can be placed to the left or right side or behind the fireplace insert.
  • Page 59 Operating manual Fireplac inserts schieb flat + II 10 | Connection to ceramic flues Mounting wall Heat insulation Inside edge cladding Dimension A: 75 mm Dimension B: 90 mm (insulation materials pursuant to AGI Q 132) Dimension C: 50 mm Fig. 16: Connection to ceramic flue heat exchanger...

  • Page 60: Installation

    11 | Installation Operating manual Fireplac inserts schieb flat + II Installation Installation must only be carried out by an authorized specialist company. Before installing the fireplace insert, check that all movable parts are working. Any defects before the installation of the fireplace insert must be reported. 11.1 Risks and dangers Schutzausrüstung The following protective equipment must be used:...

  • Page 61: Durchführung

    Operating manual Fireplac inserts schieb flat + II 11 | Installation 11.2 Durchführung 11.2.1 Placing the fireplace insert 1) Place appliance on prepared load-bearing base. 2) Adjust the four adjustable feet with an SW24 spanner. – Should the length of the threaded rod be insuffi- cient, the four mountings can be adjusted in height.
  • Page 62 11 | Installation Operating manual Fireplac inserts schieb flat + II 2) Remove Keramott support plate (1). 3) Remove left and right transport brackets (2). Fig. 19: Remove Keramott support plate 4) Install the deflector plates (1). Fig. 20: Install the deflector plates...

  • Page 63: Installing The Firebox Lining (Keramott)

    Operating manual Fireplac inserts schieb flat + II 11 | Installation 11.2.3 Installing the firebox lining (Keramott) Keramott 65x, 75x Numbering = installation sequence Sequence for 75x39 SII and 75x51SII 1) Keramott floor 1 - 3 2) Keramott wall 4 3) Top Keramott deflection 7 4) Bottom Keramott deflection 5 - 6 80X64 S / SII...

  • Page 64: Install The Deflector Plates

    11 | Installation Operating manual Fireplac inserts schieb flat + II Keramott 120x45S KII Numbering = installation sequence 11.2.4 Install the deflector plates The Keramott elements of the fire are already preinstalled. Only the Keramott deflections need to be installed. 65x, 75x S 1) Insert the baffle plate.

  • Page 65: Removing The Door

    Operating manual Fireplac inserts schieb flat + II 11 | Installation 80x64 S / SII and 97x45/74 S 1) First the upper baffle plates are inserted. 2) Then the lower baffle plates are installed as shown. Fig. 23: 80X64 S/SII Fig. 24: 97x45/74 S 120x45 S 4) First the upper baffle plates are inserted.
  • Page 66 11 | Installation Operating manual Fireplac inserts schieb flat + II 2) Unbolt door. Fig. 27: Unbolting the door 3) Open door. Fig. 28: Opening the door 4) Do not prop the door. Fig. 29: Do not prop the door...

  • Page 67: Converting Door To Construction Type Ba2

    Operating manual Fireplac inserts schieb flat + II 11 | Installation 5) Unhook the door. Fig. 30: Unhooking the door 11.2.6 Converting door to construction type BA2 Conversion from construction type BA1 (self-closing door) to construction type BA2 (non-self-closing door). 11.2.6.1 KE Klapp flat + II 1) Lightly undo the marked screws and move the plates.
  • Page 68 11 | Installation Operating manual Fireplac inserts schieb flat + II The combustion air collar can be mounted on the left- or right-hand side of the fireplace insert as desired. 1) Removing the combustion air collar and the sealing plate Fig. 32: Removing the combustion air collar Fig. 33: Removing the sealing plate 2) Exchange and mount parts.

  • Page 69: Mounting Large Top Storage Box

    Operating manual Fireplac inserts schieb flat + II 11 | Installation 11.2.8 Mounting large top storage box Top storage box is available for all models except for 75x39 SII, 75x51 SII and 80x64 SII. 1) Loosen hexagon nuts, washers and clamping shoe (1). 2) Remove smoke collector.

  • Page 70: Mounting Top Storage Bricks

    11 | Installation Operating manual Fireplac inserts schieb flat + II 4) Place exhaust manifold (5) on to the top storage box and fasten it to the bolt (4) with clamping shoe (3), washer (2) and hexagon nut (3) . 5) If necessary, bring the smoke collector into the correct position.
  • Page 71 Operating manual Fireplac inserts schieb flat + II 11 | Installation 3) Attach bottom ring and fasten to the bolt with clamp- ing shoe, washer and nut. Fig. 39: Attaching the upper ring 4) If an exhaust sensor is used, it will be fastened with the M6x10 hexagon screw (2).
  • Page 72 11 | Installation Operating manual Fireplac inserts schieb flat + II 6) The threaded rods (1) can be cut to the relevant length with a saw before or after mounting. ð Please ENSURE when cutting that the thread turn is not damaged.

  • Page 73: Installing The Hms

    Operating manual Fireplac inserts schieb flat + II 11 | Installation 9) Place smoke collector on the upper ring and fasten with the clamping shoes (3), M8x60 hexagon screws (1), M8 washers (2) and M8 hexagon nut (4). Fig. 44: Mounting the smoke collector 11.2.10 Installing the HMS 11.2.10.1...
  • Page 74 11 | Installation Operating manual Fireplac inserts schieb flat + II 11.2.10.2 HMS 80x64 S / 97x S / 120x45 S 1) Undo marked screws. Fig. 46: Loosening the screws For the following step, for installation you will be using the screws which you have just loosened.

  • Page 75: Mounting The Designer Frame

    Operating manual Fireplac inserts schieb flat + II 11 | Installation 7) Repeat this step for the remaining rear HMS bricks. Fig. 49: attaching the remaining HMS bricks 8) Attach side HMS bricks to the stove and on the lower tension support. 9) Attach side mountings and fasten with screws.
  • Page 76 11 | Installation Operating manual Fireplac inserts schieb flat + II 1) Attach design frame. Fig. 51: Attaching the design frame 2) Unbolt and open door. Fig. 52: Unbolting the door...
  • Page 77 Operating manual Fireplac inserts schieb flat + II 11 | Installation 3) Fasten design frame with the screws. ð For all S II fireplace inserts, the design frame is in- stalled on the rear side, in the same way as already described.
  • Page 78 11 | Installation Operating manual Fireplac inserts schieb flat + II 2) Mount the designer frame at the bottom. ð Only loosely connect the screws to the nuts. Fig. 55: Mounting DF at the bottom...
  • Page 79 Operating manual Fireplac inserts schieb flat + II 11 | Installation 3) Position the design frame sides on the left and right and use the screws to screw up at the top and bottom. Fig. 56: Mounting the DF at the side...

  • Page 80: Mounting The Convection Cladding

    11 | Installation Operating manual Fireplac inserts schieb flat + II 4) Evenly align the design frame and tighten first the bot- tom screws, then the top ones. Fig. 57: Evenly aligning the frame The frame can only be loaded if the weight that is resting on the frame is supported via the extension arm on the wall Fig. 58: Loading the design frame 11.2.12...
  • Page 81 Operating manual Fireplac inserts schieb flat + II 11 | Installation 1) Install the mounting (1) on the left- and right-hand side in the bottom of the fireplace insert on the side. ð 80x and 97x do not have this mounting. 65x, 75x S 75x39 SII 75x51 SII...
  • Page 82 11 | Installation Operating manual Fireplac inserts schieb flat + II 2) Attach right-hand side panel (1) to the mounting (2) and fasten with the screws. 3) Repeat this step for the side panel on the left-hand side. 4) For models without this mounting (2), fasten the side parts to the fireplace insert with the screws.

  • Page 83: Assembling Insertcontrol

    Operating manual Fireplac inserts schieb flat + II 11 | Installation 6) Attach cover and fasten with the screws. Fig. 62: Attaching the cover 11.2.13 Assembling InsertControl 11.2.13.1 Installing InsertControl The control unit consists of: Control unit (1) Power unit (2) Temperature sensor (270 - 20 cm) (3) Bowden cable (100 cm) (4) Fig. 63: Control unit...
  • Page 84 11 | Installation Operating manual Fireplac inserts schieb flat + II There are matching installation kits for the various fireplace inserts. The applicable fireplace inserts and the item num- bers of the installation kits are: 45x, 55x, 65x 75x – 363000 75X II - 363011 45x round –...
  • Page 85 Operating manual Fireplac inserts schieb flat + II 11 | Installation Here you can see the assembly situations: On some fireplace inserts the assembly situation can be se- lected on either the left- or right-hand side. Here you can see the assembly situations: 65x, 75x, (1) –...
  • Page 86 11 | Installation Operating manual Fireplac inserts schieb flat + II 6) Remove centre stone tension support (1). 7) Remove the two M6x12 hexagon head screws (2). 8) Remove primary air cover (3). ð Now InsertControl can be installed. Fig. 69: Removing the parts In the following illustration the 363000 installation kit has been installed in the left-hand version.
  • Page 87 Operating manual Fireplac inserts schieb flat + II 11 | Installation 12) Thread the Bowden cable (1) through the Ø16 hole in the fireplace insert. Fig. 72: Threading the Bowden cable 12 mm 13) Connect the Bowden cable to the installation kit. 27 mm ð...
  • Page 88 11 | Installation Operating manual Fireplac inserts schieb flat + II • Wait about 10 minutes after plugging in the power supply and check in that time that the air regu- lator disc has completely closed and opened • After the 10 minutes has finished the air regulator disc must be either completely opened or closed (depending on the program set) After a successful function test the fireplace insert can be completely reassembled.
  • Page 89 Operating manual Fireplac inserts schieb flat + II 11 | Installation Program overview Selection wheel Mode Function Position 0 Shutter opening, always 60% Position 1 Normal sliding opening Position 2 sliding opening Position 3 Normal sliding closing Position 4 sliding closing Selecting the program 1) Remove power supply from the socket.

  • Page 90: Settings

    12 | Settings Operating manual Fireplac inserts schieb flat + II Settings 12.1 Adjusting the door 97x45 S 1) Unlock door lift. Fig. 78: Locking the door lift 2) Open door. Fig. 79: Opening the door...

  • Page 91: Adjusting The Smoke Collector

    Operating manual Fireplac inserts schieb flat + II 12 | Settings 3) The door can be adjusted at the marked places. 4) Lightly undo the screws and align the door. Fig. 80: Adjusting the door at top and bot- Fig. 81: Adjusting the door at the top Fig. 82: Adjusting the door at the bottom 12.2 Adjusting the smoke collector 1) Loosen screws (1).
  • Page 92 12 | Settings Operating manual Fireplac inserts schieb flat + II 4) Loosen screws (3). 5) Turn the smoke collector collar (4) in order to bring it into the desired position. ð This allows any desired angle to be achieved by turning the exhaust collar (4).

  • Page 93: Commissioning

    Operating manual Fireplac inserts schieb flat + II 13 | Commissioning Commissioning 13.1 Initial Commissioning ü The initial commissioning of your fireplace should take place 4 weeks at the earliest after comple- tion of the cladding, so that all cladding parts are able to dry out completely. 1) Remove all enclosed documents and appliance parts from the fireplace.

  • Page 94: Operation

    14 | Operation Operating manual Fireplac inserts schieb flat + II Operation 14.1 Controls The appliance series is characterised by being extremely simple to use. Operation Convection outlet Door lock Convection inlet Combustion air controller Fig. 85: Operating functions on the appli- ance Door lock Opening the door:...

  • Page 95: Fuel

    Operating manual Fireplac inserts schieb flat + II 14 | Operation 14.3 Fuel NOTICE To avoid damage you must NEVER operate your fireplace insert a greater quantity of fuel than that specified in this manual! Approved fuel Dry, properly stored, unrefined log (preferably hard wood) is permitted as fuel for our hybrid stoves Round wood must be split at least once so that it lights better.

  • Page 96: Heating

    14 | Operation Operating manual Fireplac inserts schieb flat + II 3) Lay 2-3 pieces of log (1) (beech, oak, birch) across the bottom of the firebox. 4) Finely split softwood above it (2). 5) Place a firelighter (3) in the middle and light it. ð...

  • Page 97: Heating In The Transition Period

    Operating manual Fireplac inserts schieb flat + II 14 | Operation Putting more wood on: 1) Fully open air control lever. ð This prevents any eddies that would allow flue gases to escape. If there is one, fully open the throttle valve.

  • Page 98: Operation

    Operating manual Fireplac inserts schieb flat + II 14.9 Operation We would particularly like to point out at this point that Austroflamm fireplace inserts must only be op- erated with doors closed. The best efficiency and thus optimal fuel efficiency is achieved in closed op- eration.

  • Page 99: Cleaning

    2) Before cleaning the glass, the fireplace seat and floor covering must be covered. 3) Spray window with glass cleaner and leave it for a moment to take effect. ð We recommend cleaning the glass with our Austroflamm glass cleaner or a commercially available window cleaner.

  • Page 100: Cleaning The Door Window

    15.4 Cleaning the door window Spray window with glass cleaner and leave it for a moment to take effect. • We recommend cleaning the glass with our Austroflamm glass cleaner or a commercially available window cleaner. • Prevent door- or window seals from coming into contact with water or cleaner, since these will oth- erwise harden and in doing so lose their function.

  • Page 101: Help

    Operating manual Fireplac inserts schieb flat + II 16 | Help Help Problem Cause Solution The glass window is sooty Insufficient draft from time to time (depending on use) the window must be cleaned with glass cleaner Clarification with chimney sweeper (poss.

  • Page 102: Firebox Lining

    16 | Help Operating manual Fireplac inserts schieb flat + II Problem Cause Solution Ceramic windows become sooty Unsuitable wood used Use dry unrefined wood. See inform- very quickly ation about this in the Fuel section Operating temperature not reached Bring fireplace insert to the operat- ing temperature Sooting up of the window after 8- 10 hours of fires is normal...
  • Page 103 Operating manual Fireplac inserts schieb flat + II 16 | Help • Is the firebox door correctly closed? • Is the chimney draft too high? ... the ceramic panes become sooty very quickly? • A gradual accumulation of soot by the windows after 8 to 10 hours of fires is normal. •...

  • Page 104: Spare Parts

    17 | Spare parts Operating manual Fireplac inserts schieb flat + II Spare parts To order spare parts, please contact your Austroflamm dealer.

  • Page 105: Dismantling

    Operating manual Fireplac inserts schieb flat + II 18 | Dismantling Dismantling 18.1 Execution 18.1.1 Removing revision and weight cartridge 1) Remove side Keramott bricks. 2) Remove screws from the revision. 3) Open inspection cover (press downwards). Fig. 90: Removing revision and weight cart- ridge 4) Remove weight cassette.

  • Page 106: Disposal

    (Keramott), ceramic, sensors and baffle plates and dispose of them in the household waste. NOTICE For correct uninstallation and dismantling of the fireplace insert, contact your Austroflamm specialist dealer. Electric and electronic components Remove the electric and electronic components from the appliance by dismounting them.
  • Page 107 Operating manual Fireplac inserts schieb flat + II 19 | Disposal Handles and decorative elements made of metal If present, disassemble or remove handles and decorative elements made of metal and dispose of as metal scrap. Local disposal options must be observed.

  • Page 108: Guarantee And Warranty

    For the replaceability of the warranty case the start-up log must be received by Austroflamm within one month at the latest of the initial commis- sioning. In order to make a claim on the warranty, repairs to your fireplace insert must only be car- ried out by a service engineer authorized by Austroflamm.

  • Page 109: Data Processing

    If you consent to the appropriate handling of your personal data for the following purposes, please tick this box. o I hereby agree that Austroflamm GmbH and AUSTROFLAMM Service GmbH & Co KG may send me service reminders and offers on other products from Austroflamm GmbH for the purposes of advert- ising via E-Mail/ SMS/ telephone.

  • Page 110: Start Up Log

    22 | Start up log Operating manual Fireplac inserts schieb flat + II Start up log Operator / Customer Dealer / Engineer Name Company Street Street Town and postal code Town and postal code Telephone Telephone Email Email Fireplace insert Working Comments Model...

  • Page 111: Service Report

    Operating manual Fireplac inserts schieb flat + II 23 | Service Report Service Report Date Technicians Notes Work carried out, replacement parts installed...
  • Page 112 23 | Service Report Operating manual Fireplac inserts schieb flat + II Date Technicians Notes Work carried out, replacement parts installed...
  • Page 113 Notizen / notes / appunti / remarques...
  • Page 114 Vollständigkeit / completeness / completo / complet Geprüft von / checked by / controlled da / contrôlé par ____________________________________________________ Datum / date / data / date ____________________________________________________ AUSTROFLAMM GMBH Austroflamm-Platz 1 A- 4631 Krenglbach Tel: +43 (0) 7249 / 46 443 www.austroflamm.com info@austroflamm.com...
