Original Set Sensor - Ricoh Aficio MP C3001 Service Manual

1.3.3 ORIGINAL SET SENSOR

1. Open the left cover.
2. Original feed unit (see the "Original Feed Unit")
3. Original Tray (see the "Original Tray")

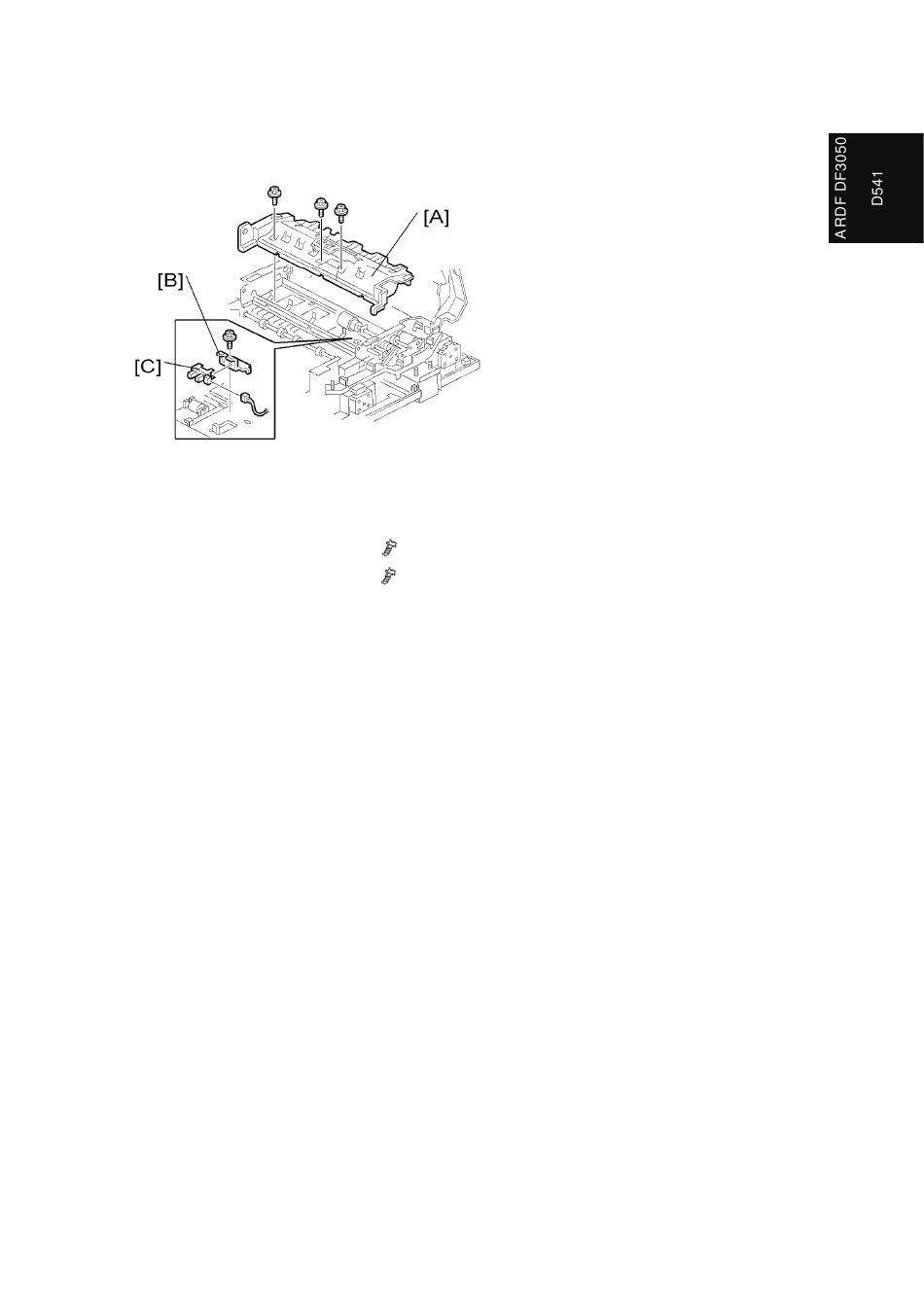

4. Original feed-in guide plate [A] (
5. Original set sensor bracket [B] (
6. Original set sensor [C]
SM
x 3).
x 1)
