Basic Electronics - Telecom Behnke 20-0001B-IP Series Instructions Manual

Instructions for Behnke 20-0001B-IP, 20-0014B-IP, 20-0016B-IP
GB

Basic electronics

BasIc ElEctronIcs
3.

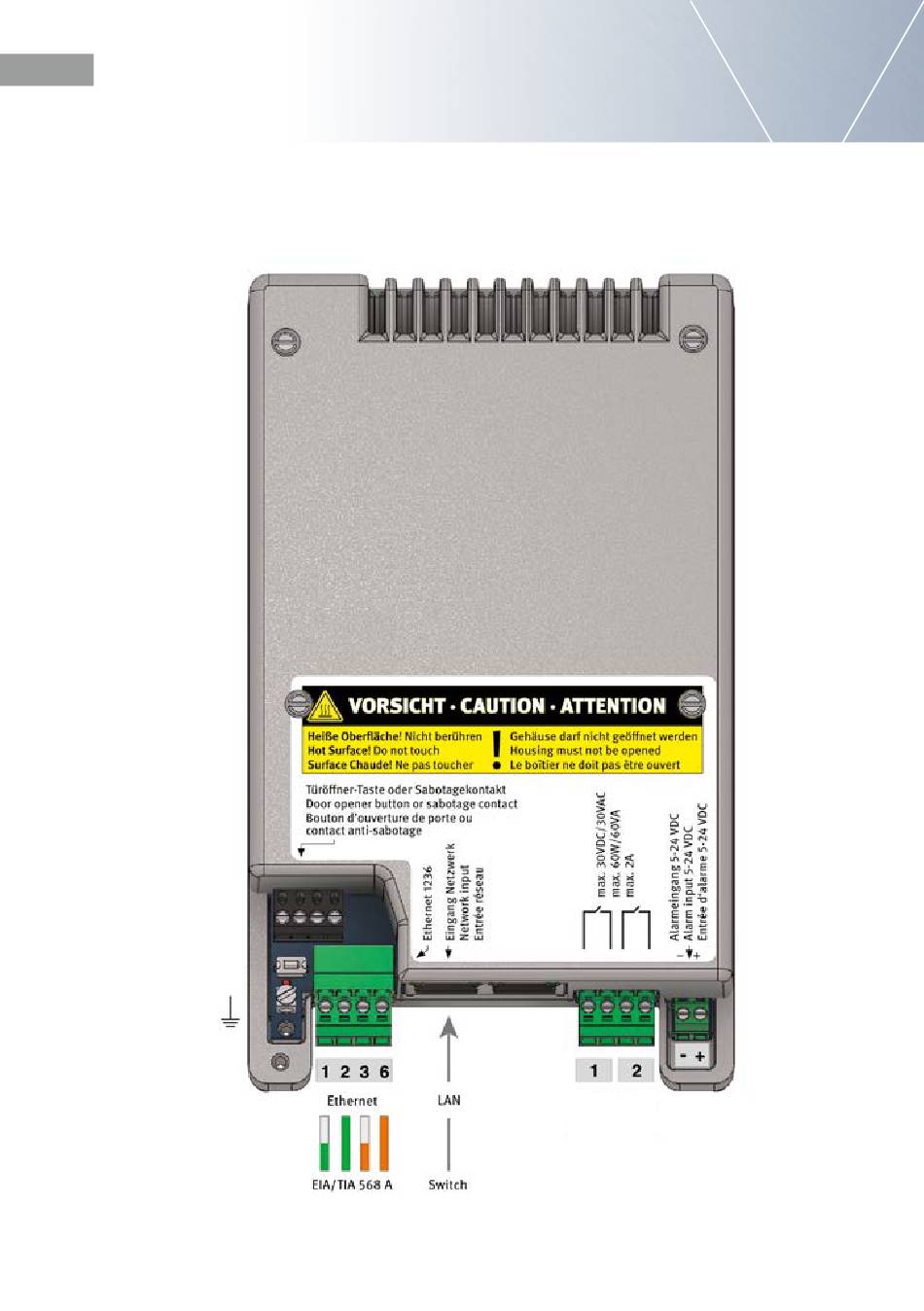

(Electronics box for 20-0014B-IP, 20-0001B-IP, 20-0016B-IP)
Configuration key
Status LED
The earth connection
is required in case of
a TNV-1/ES1 circuit,
e.g. when the device
is integrated into a
column and there is
no fixed connection
to the building.
50
Relay can be
configured Alarm entry
as normally 5-24 VDC
closed or
normally open
contact
