Instructions for Behnke 20-0001B-IP, 20-0014B-IP, 20-0016B-IP
GB
Mounting
Connect the connection components of your
4
intercom station with your basic electronics.
Connect your connection components such as
loudspeaker, microphone, keys, keypad and
nameplates to the basic electronics as shown
as follows. For connecting an IP camera or USB
camera, refer to the instructions of the corre-
sponding products.

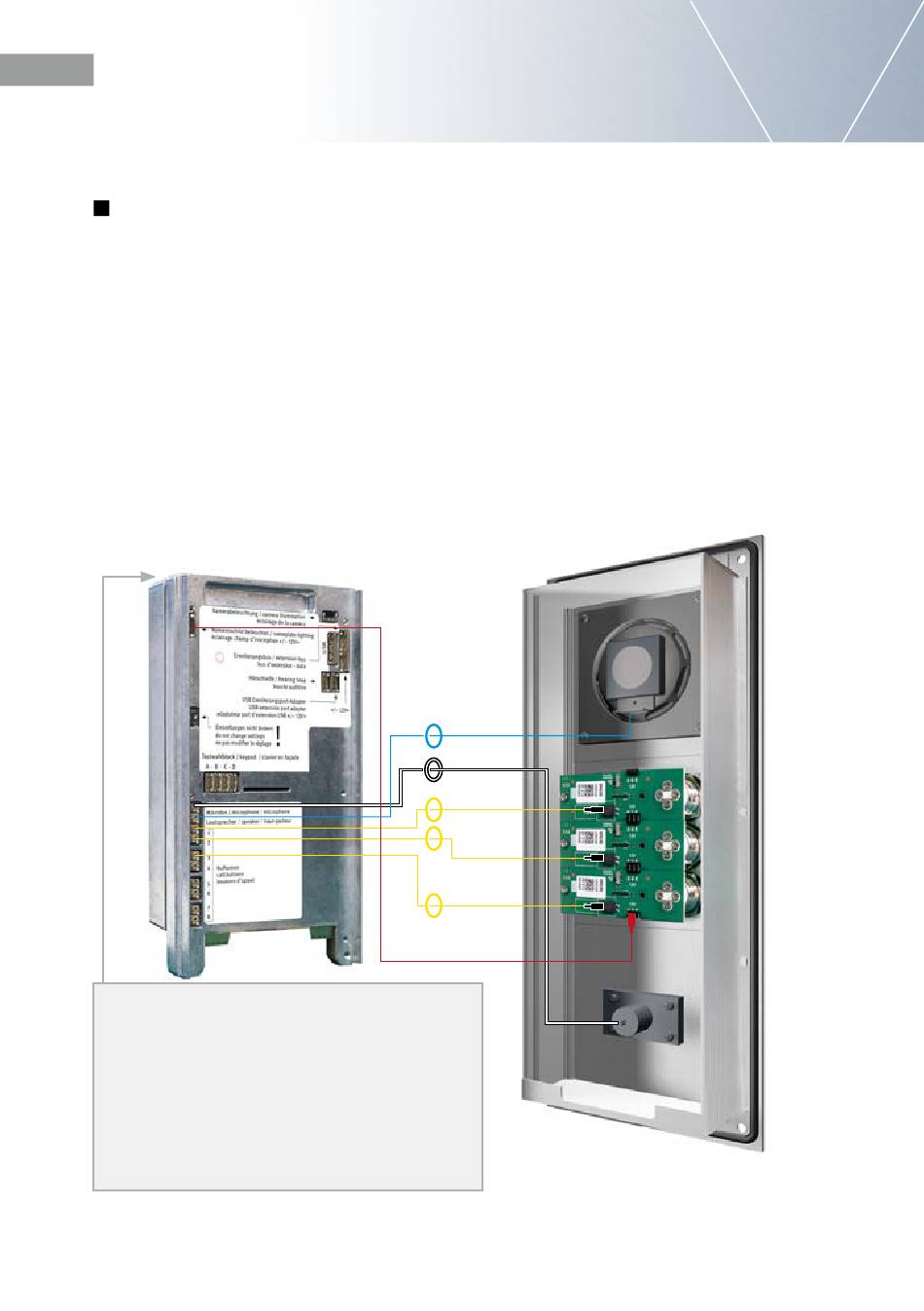

For example: Connecting loudspeaker, micro-
phone and 3 call buttons with their basic elec-
tronics
RT 4
RT 5-6
RT 7-8
In the case of basic electronics 20-0016B-IP,
you will find a mounting bracket in this area for
mounting on on-site mounting points. You can
find the dimensions here:
www.behnke-online.de/masszeichungen
During installation, make sure that the intercom
station is mounted in a moisture-protected area.
46
Pin assignment of the connection cable
Series 20, 40 and 50
LP (Blue)
Mic (White)
T (Yellow)
A/B/C/D
HPI Contact
(White)
+/- 12 V= for
Labeling
fields
LP
MIC
RT 1
RT 2
RT 3
▸ Loudspeaker
▸ Microphone
▸ Key 1 to 8 (plug contact,
illumination board with button
labeled)
▸
Keypad
▸ Lighting 12 V=
Illumination labeling field
of the and keys, see also
page 47.
