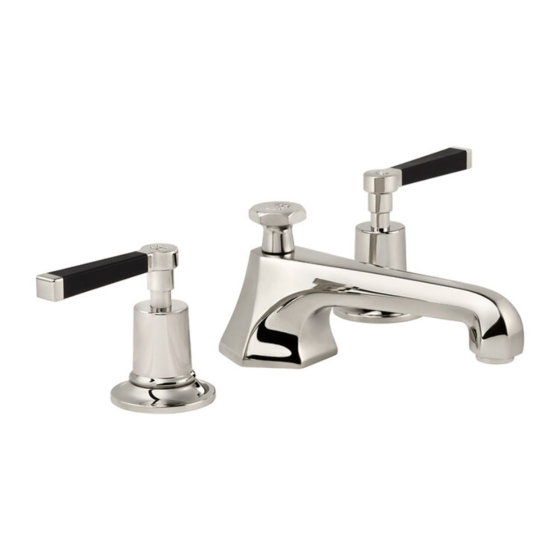

- Page 1 1204 / 1205 / 1216 / 1220 / 1222 / 1224 / 1228 THREE HOLE BASIN MIXER INSTALLATION GUIDE...
- Page 2 MIXER DIMENSIONS 1204 – La Chapelle mixer 1205 – La Chapelle ared spout mixer Ø55 Ø50 Ø21 Ø21 50 max 50 max 247 max 223 max G 1¼ G 1¼ G 1¼ 190 max 190 max 190 max 1216 – Edwardian mixer 1220 –...
- Page 3 MIXER DIMENSIONS 1222 – Janey Mack mixer 1224 – Connaught mixer Ø50 Ø48 Ø21 Ø21 50 max 50 max 268 max 267 max G 1¼ G 1¼ G 1¼ G 1¼ 190 max 190 max 190 max 190 max 1228 – Mackintosh mixer 60A/F Ø25 Ø21...
- Page 4 FLOW VALVE DIMENSIONS 81mm 61mm 86mm 88mm Ø55mm Ø55mm Classic lever white ceramic (WL) Classic cross handle (LB) 82mm 91mm 95mm 86mm Ø55mm Ø55mm Black crystal lever (CR) Classic lever black ceramic (BL) Classic lever metal (MTL) 100mm 65mm 119mm 88mm Ø55mm Ø55mm...
- Page 5 FLOW VALVE DIMENSIONS 70mm 98mm 88mm 78mm Ø55mm Ø55mm La Chapelle cross handle (FH) La Chapelle lever white ceramic (FW) La Chapelle lever metal (FM) La Chapelle lever black ceramic (FB) 68mm 80mm 82mm 81mm Ø55mm Ø55mm Mackintosh lever (ML) Mackintosh cross handle (MH) Mackintosh black lever (MB) 80mm...
- Page 6 FLEXIBLE HOSE CONNECTIONS Shown with classic mixer and flow valves. 180 min - 280 max...
- Page 7 FLEXIBLE HOSE CONNECTIONS It is recommended that the flow valves and hoses are installed as shown...
- Page 8 Note: Balance pressures shown are applied directly to the hot and cold inlets; flow rates indicated are free flowing and may vary subject to restrictions created by installation, pipework, layout or application. 1204 Flow (Litres/minute) Note: Balance pressures shown are applied directly to the hot and cold inlets; flow rates indicated are free...
- Page 9 TYPICAL FLOW RATES 1228 Flow (Litres/minute) Note: Balance pressures shown are applied directly to the hot and cold inlets; flow rates indicated are free flowing and may vary subject to restrictions created by installation, pipework, layout or application. 5 018). t the spout dripping after being turned o .
- Page 10 Suits all systems flexible hoses. This Lefroy Brooks product is potentially suitable for every possible application, type of boiler and Water quality water supply pressure. However, if your supply...
-
Page 11: Parts Identification
PARTS IDENTIFICATION Shown with classic mixer. The same procedure applies to all mixers Pop-up rod Spout Mounting surface Washer Backnut Four way connector ‘O’ ring Reducing bush Plug Adjustment screw Pop-up rod Plug housing Foam seal Control rod link Basin Control rod Rubber seal Ball joint retainer... -
Page 12: Spout Installation
SPOUT INSTALLATION Shown with classic mixer. The same procedure applies to all mixers Washer Backnut Four way connector ‘O’ ring Reducing bush 1 Where necessary drill a suitable sized hole in 5 Unscrew (clockwise) and remove the backnut the mounting surface. and washer from the threaded tail (D). - Page 13 SPOUT INSTALLATION Shown with classic mixer. The same procedure applies to all mixers Washer Backnut 6 Pass the threaded tail of the spout through 8 Screw the backnut (counter clockwise) onto the hole in the mounting surface (E). Align the the threaded tail and tighten to secure the spout.
- Page 14 SPOUT INSTALLATION Shown with classic mixer. The same procedure applies to all mixers Locate the ‘o’ ring into the four way ‘O’ ring connector before inserting the reducing bush and tightening the compression nut. Reducing bush Four way connector Do not overtighten nut. ‘O’...
- Page 15 FLOW VALVE INSTALLATION Shown with classic cross handle. The same procedure applies to all handle and lever models Before continuing please be aware that on 1 Where necessary drill Ø28–30mm holes in lever models it is important to keep the flow the mounting surface.
- Page 16 FLOW VALVE INSTALLATION Shown with classic deck plates. The same procedure applies to all deck plates Splines Ceramic cartridge Deck plate below ceramic cartridge 4 Locate the flow valve through the hole in the 7 Rotate the flow valve body so that the side mounting surface (M).
- Page 17 FLOW VALVE INSTALLATION Shown with classic cross handle. The same procedure applies to all handle and lever models Lateral movement Splines Rotate the shroud until lateral handwheel/lever movement is eliminated 8 With the handle/lever hot and cold indicators 9 With the lateral movement adjustment aligned, locate the handle/lever assembly completed, rotate the deck plate counter onto the splines of the cartridge (P).
- Page 18 POP-UP WASTE INSTALLATION Shown with classic rod. The same procedure applies to all rods Plug Adjustment screw Pop-up rod Plug housing Foam seal Control rod link Basin Control rod Rubber seal Ball joint retainer Body Ball joint washer 1 Insert the pop-up waste lever into the hole in 4 Gently clamp the control rod link to the the top of the spout.
- Page 19 SERVICING – CARTRIDGE REPLACEMENT Shown with classic cross handle. The same procedure applies to all handle and lever models Before continuing please ensure that the To remove the ceramic cartridge(s), unscrew water supplies have been isolated and drained (counter clockwise) and remove the handle/ where necessary.
- Page 20 SERVICING – CLEANING THE SPOUT AERATOR/FLOW STRAIGHTENER Shown with model 1228 mixer. The same procedure applies to 1204, 1216, 1220 and 1222 models. Not applicable on 1205 and 1224 models Washer Aerator/flow straightener Cover 1 There is an aerator/flow straightener located 2 The aerator/flow straightener can be cleaned in the end of the spout.
-
Page 21: Fault Finding
Water flow from the spout is reduced. • On 1204, 1216, 1220, 1222 and 1228 models debris from the water supply may be causing restriction at the aerator/flow straightener located in the end of the spout. The aerator/flow straightener can be removed for cleaning (see ‘servicing –... -
Page 22: Replacement Parts
PPW017 – Horizontal rod and ball (longer length of 500mm) PSH029 – Aerator, washer & housing for 1228 model PSH030 – Aerator, washer & housing for 1216, 1220 models PSH033 – Aerator, washer & housing for 1204 model PSH108 – Aerator, washer & housing for 1222 model... - Page 24 20.065.092B / OCTOBER 2018 CUSTOMER SUPPORT +4 4 (0)1992 70 8 316 L E F R O Y B R O O K S . C O . U K Whilst every effort is made to ensure the accuracy of these, they are subject to change without notice as part of the company’s product development process.
