Summary of Contents for Lefroy Brooks K1-1301

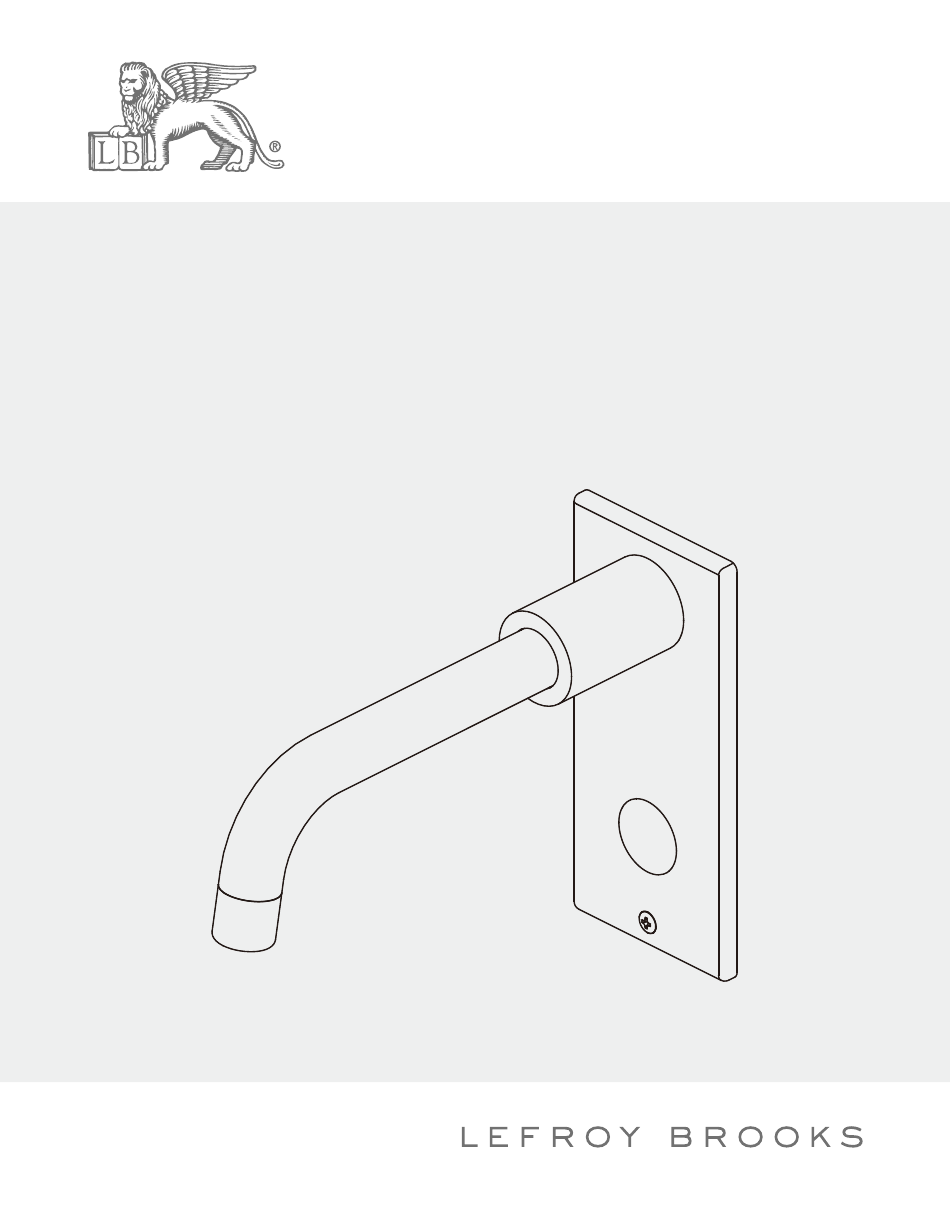

- Page 1 INSTALLATION INSTRUCTIONS K1-1301 WALL HANDS-FREE ELECTRONIC BASIN FAUCET...
- Page 2 Dimensions in Inches (& Millimetres) K1-1301 1/2"-14NPSM 2 15/16" (74mm) 1 11/16" (43mm) 2 3/4"~3 15/16" (70mm~100mm) 2 15/16" (75mm) 10˚ 8" (202.7mm) Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process.
-
Page 3: What You Need To Know
What you need to know Tools: Maintenance Adjustable Wrench Your new bathroom faucet is designed for years Groove Joint Pliers of trouble-free performance. Hacksaw Keep it looking new by cleaning it periodically with Phillips Screwdriver a soft cloth. Avoid abrasive cleaners, wire wool and Pipe Tape harsh chemicals as these will dull the finish and Spatula... - Page 4 Sensor Power On Procedure Please read this chapter carefully and make sure you understand before you start the installation. 1. The optimum detective range has been set up already.In general circumstance, you do not need to set or adjust it again. 2.
-
Page 5: Installation Procedure
Steps 1-3 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Connect Flexible Hose to Rough inlet. Connect another Flexible Hose 3 to Sole- noid Valve. Connect Flexible Hose to Solenoid Valve.Please make sure that you connect to... - Page 6 Steps 4 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. 70~100 65max 15.5 Turn on water valve to remove any leftover Connect power supply wire from AC Adaptor to debris.
- Page 7 Steps 5-6 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Connect Spout to Front Panel. Install Front Panel and Spout assembly to Conncetion Tube from Rough. Please make...
- Page 8 Steps 7-8 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Fix Canopy in place. Installation finish.
-
Page 9: Troubleshooting
Trouble-Shooting If you’ve followed the instructions carefully and your faucet still does not work properly, take these corrective steps: PROBLEM CAUSE ACTION Aerator (1) leaks or has an Aerator (1) is dirty or misfitted. Unscrew the aerator (1) to check inconsistent water flow pattern. -
Page 10: Exploded View
Exploded View Parts List K1-1301 Aerator assembly (500951N) O-ring (004010N) Fixing plate (120282) Spout assembly (139646W) Body (002629W) Cable P-clip (540286) Set screw (008198) Fixing plate (120283) Screw (008063) O-ring (004007) Screw (008013) Plug-in adaptor (540484) Canopy (018965) Flexible hose (105540N) - Page 12 The right to modify designs and dimensions is reserved. Christo Lefroy Brooks is a member of ACID (Anti Copying in Design).
