Summary of Contents for Lefroy Brooks 1135

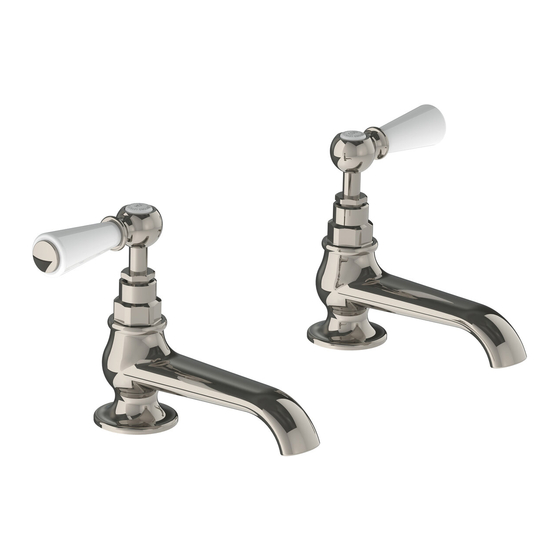

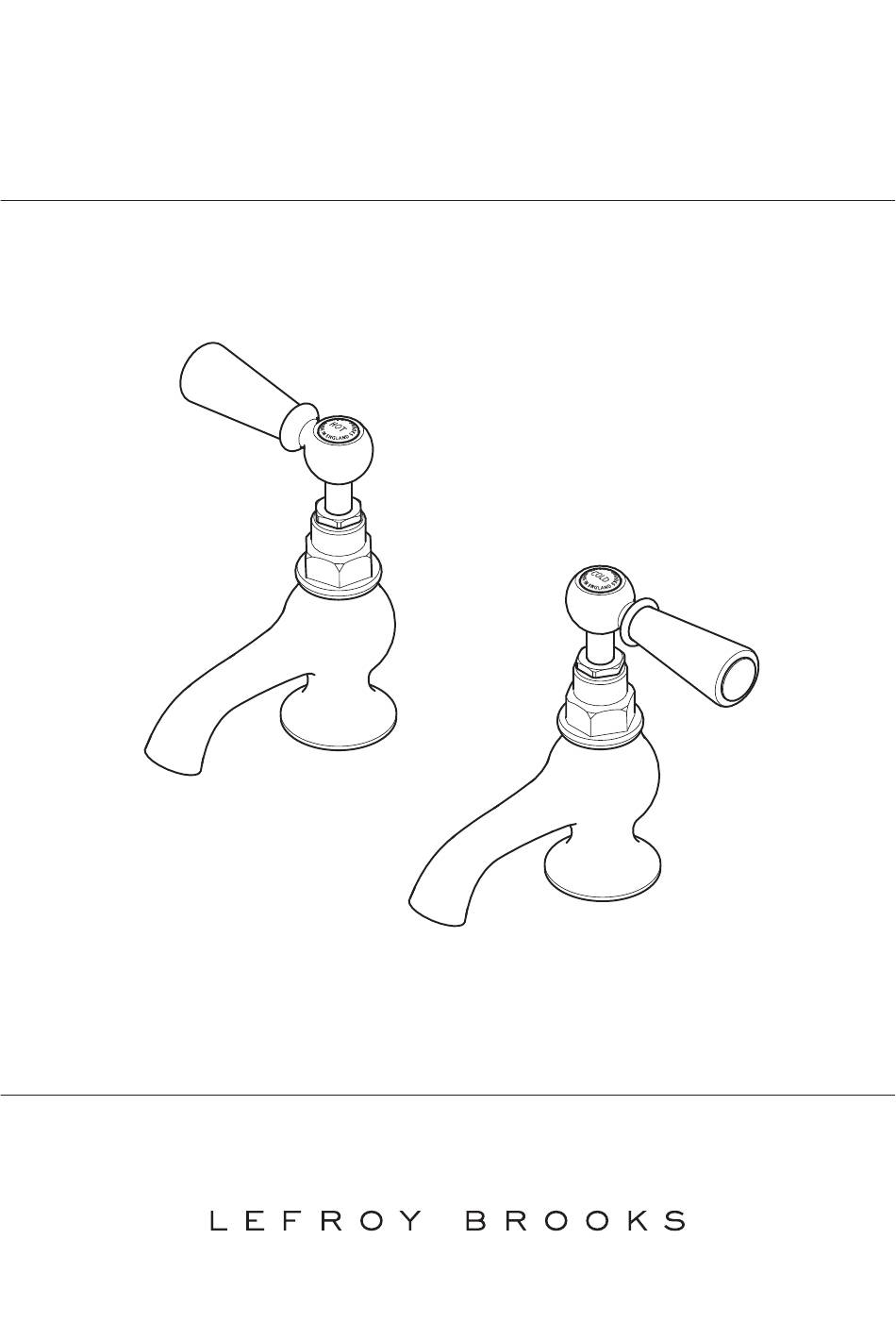

- Page 1 1135 / 1422 / 1154 / 8022 / 8030 / 8054 BATH AND BASIN PILLAR TAPS INSTALLATION GUIDE...
- Page 2 Supply connections Lefroy brooks do not supply any pipework or connections for taps as they can be installed in a variety of configurations subject to each customers installation design or requirement.
- Page 3 DIMENSIONS Short nosed taps 1135 8022 65mm 90mm 24mm 15mm 26mm max 26mm max Ø21mm Ø21mm 50mm 50mm G½ G½ Ø45mm Ø45mm Long nosed taps 8030 1422 85mm 124mm 18mm 15mm 26mm max 26mm max Ø21mm Ø21mm 50mm 50mm G½...
- Page 4 TYPICAL FLOW RATES Basin taps (The flow rate indicated is for a single tap.) Flow (Litres/minute) Bath taps (The flow rate indicated is for a single tap.) rtridge, for this deck valve in the ving full flow to the hose attached. Flow (Litres/minute) Note: Pressures shown are applied directly to the inlets;...
-
Page 5: Installation
INSTALLATION 1 Remove the backnut and rubber sealing 4 Locate and screw the backnut onto the washer from the threaded tail of the tap. threaded tails. 2 Locate the threaded tail of the tap through the 5 Ensure the tap is aligned correctly then tighten hole in the mounting surface. - Page 6 SERVICING – CARTRIDGE REPLACEMENT Before continuing please ensure that the 2 Unscrew and remove the ceramic cartridge water supplies have been isolated and drained in a counterclockwise direction using a 17mm where necessary. Always support the spout spanner. when removing/fitting handwheel/lever 3 Fit a new ceramic cartridge.
-
Page 7: Fault Finding
FAULT FINDING The tap is turned off but the spout drips continuously. • Replace the ceramic cartridge. See below for spare part numbers and the ‘servicing – cartridge replacement’ section Noisy operation • Reduce water pressure REPLACEMENT PARTS Spare cartridges for lever models PHL035 –... - Page 8 20.065.116B / AUGUST 2017 CUSTOMER SUPPORT +4 4 (0)1992 70 8 316 L E F R O Y B R O O K S . C O . U K Whilst every effort is made to ensure the accuracy of these, they are subject to change without notice as part of the company’s product development process.
