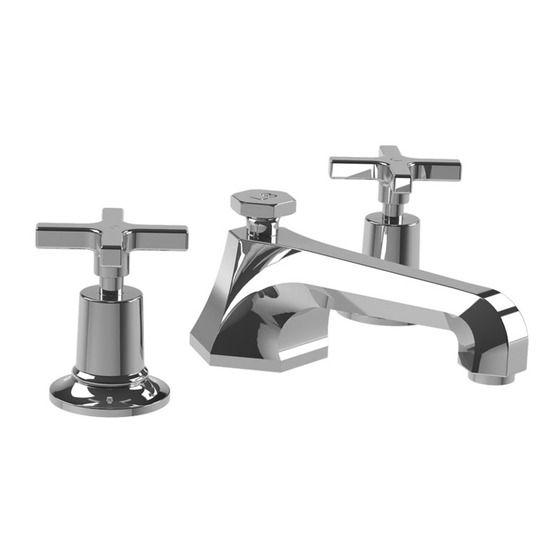

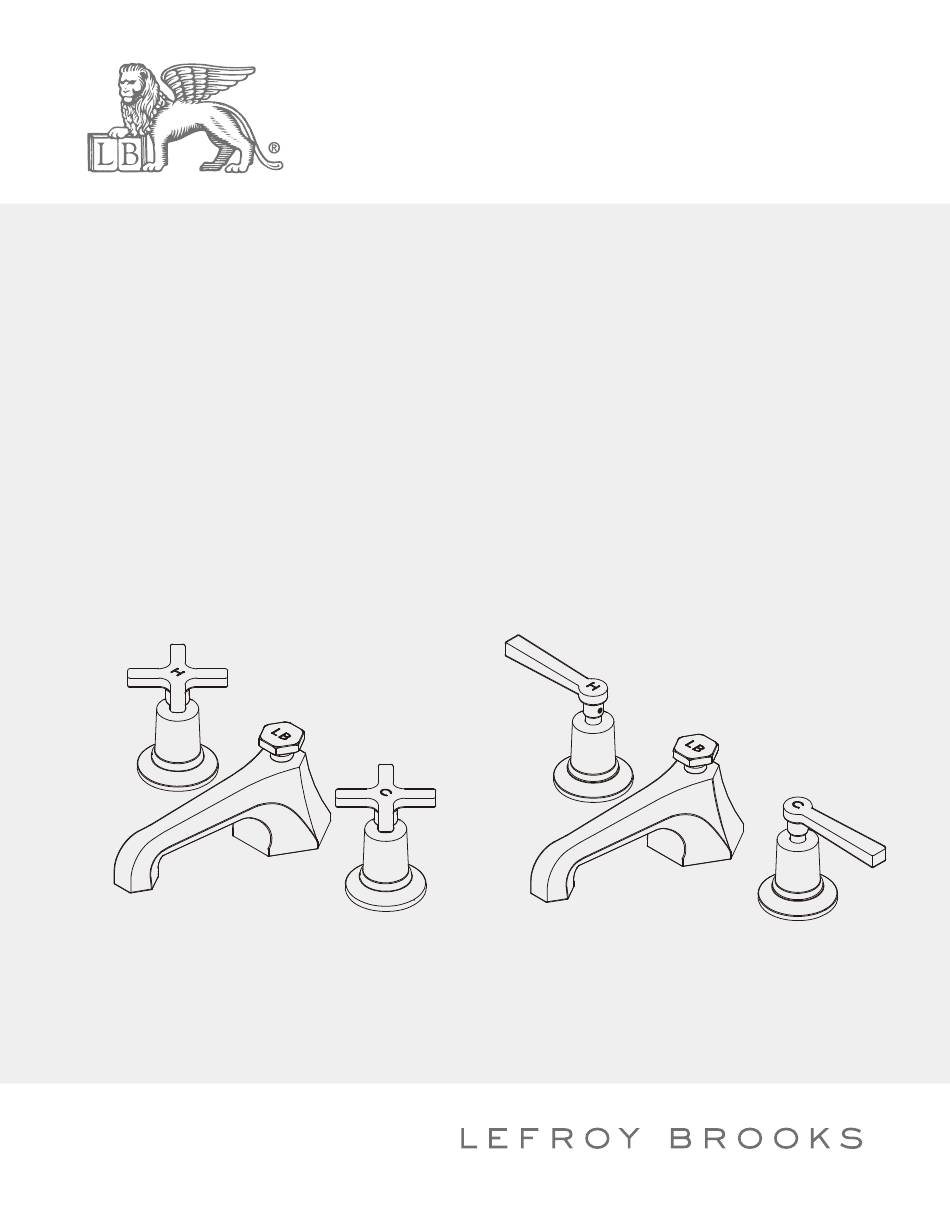

- Page 1 INSTALLATION INSTRUCTIONS M1-1100 (MH 1228) CROSS HANDLE 3-HOLE BASIN MIXER WITH P.U.W. M1-1101 (ML 1228) LEVER 3-HOLE BASIN MIXER WITH P.U.W. M1-1100 (MH 1228) M1-1101 (ML 1228)
- Page 2 Dimensions in Inches (& Millimetres) M1-1100 (MH 1228) 7 1/4" 6"~12" (183.5mm) (152.4~305mm) 5 1/2" (140mm) H2 3/8" Ø2 3/16" (H60mm) (Ø55mm) 1/2"-14NPSM 1"-20UNEF 1/2"-14NPSM 8"Max (203mm) 2 1/4" (56.5mm) 1 1/2"-18UNEF Ø1 1/4" Ø(31.75mm) M1-1101 (ML 1228) 7 1/4"...
-
Page 3: What You Need To Know
What you need to know Tools: Maintenance Adjustable Wrench Your new bathroom faucet is designed for years Groove Joint Pliers of trouble-free performance. Hacksaw Keep it looking new by cleaning it periodically with Phillips Screwdriver a soft cloth. Avoid abrasive cleaners, wire wool and Pipe Tape harsh chemicals as these will dull the finish and Spatula... -
Page 4: Installation Procedure
Steps 1-3 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Install left handle assembly, headwork Fit spout and install the connector assembly. cover and side body. - Page 5 Steps 4-6 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Install Pop-up rod. Connect flexi-hoses. Connect Pop-up rod. Warning! When installing flexible hose, please notice: 1. There should be no torsion or deformation 2.
-
Page 6: Exploded View
Exploded View Parts List M1-1100 (MH 1228) Handle ( C ) (029685C-T) Pop-up knob (124386) Pop-up rod (125412) Canopy (018295) O-ring (048027N) Spout (002252W) Stem extension (110409) O-ring (004072N) Oil-seal (010095N) Clip (012242) O-ring (004001N) Aerator insert (553648N) Adaptor (057507) - Page 7 Exploded View Parts List M1-1101 (ML 1228) Handle ( C ) (029686C-T) Pop-up knob (124386) Nut (009002) Canopy (018295) O-ring (048027N) Oil-seal (010095N) Clip (012242) Spout (002252W) Aerator insert (553648N) Stem extension (110409) O-ring (004072N) Aerator housing (305800N-50) Screw (008486) O-ring (004001N) Pop-up rod (125412) Adaptor (057507)
- Page 8 The right to modify designs and dimensions is reserved. Christo Lefroy Brooks is a member of ACID (Anti Copying in Design).
