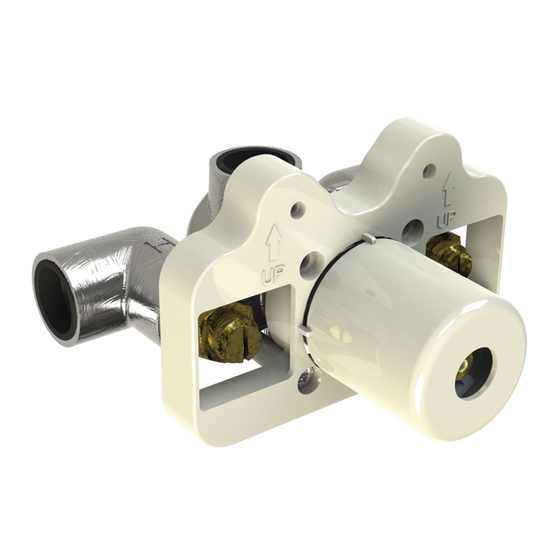

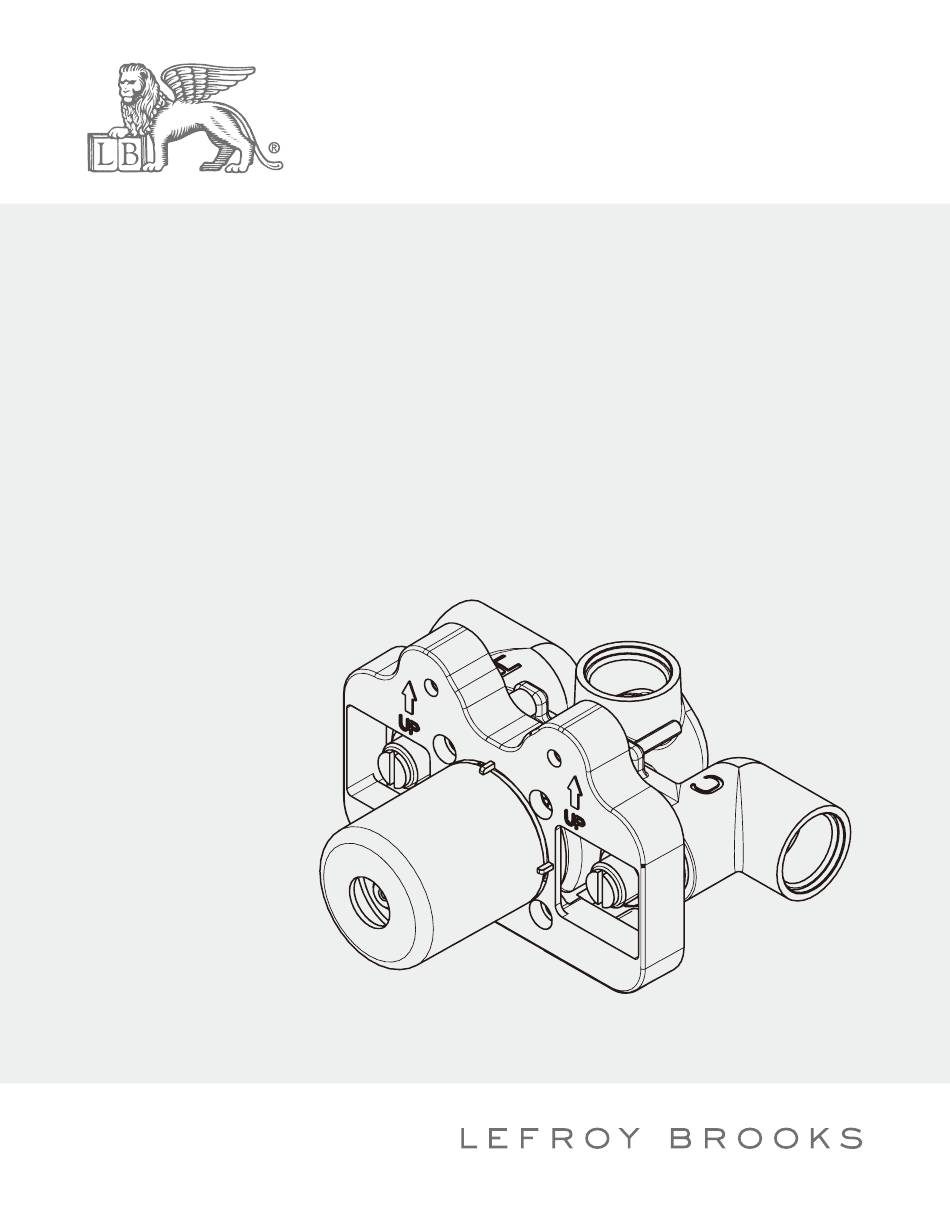

- Page 1 INSTALLATION INSTRUCTIONS M1-4200 SINGLE HANDLE THERMOSTATIC ROUGH, TO SUIT M1-4400, M1-4401, X1-2008, X1-2009, CW-4075 & CB-4075...
- Page 2 Dimensions in Inches (& Millimetres) 5 3/16" (132mm) 2 3/16" (55mm) 3/4-14NPT 3/4-14NPT 2 3/16" (55mm) 3/4-14NPT 5 5/16" 3/4-14NPT (135mm) 6 5/16" (160mm) 3 1/8" (80mm) Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process.
-
Page 3: What You Need To Know
What you need to know Tools: Maintenance Adjustable Wrench Your new bathroom faucet is designed for years Groove Joint Pliers of trouble-free performance. Hacksaw Keep it looking new by cleaning it periodically with Phillips Screwdriver a soft cloth. Avoid abrasive cleaners, wire wool and Pipe Tape harsh chemicals as these will dull the finish and Spatula... -
Page 4: Installation Procedure
Steps 1-2 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. For round trim plates: CW-4075, CB-4075 For rectangular trim plates: M1-4400, M1-4401, X1-2008, X1-2009 80mm-105mm 87mm-112mm... - Page 5 Steps 3-4 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. For round trim plates: CW-4075, CB-4075 For rectangular trim plates: M1-4400, M1-4401, X1-2008, X1-2009 136mm~140mm Ø145mm-Ø150mm...
- Page 6 Steps 5-6 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Fix the stopper and make sure its "A" Turn on the flow controller. Turn the plane as mentioned is horizontal and on the thermostatic cartridge till you get the water left side.
-
Page 7: Exploded View
Exploded View Parts List Spindle (017119) Oil-seal (010113) Plaster guard (127215) O-ring (048038) Body (002552) Screw (008241) Spring (005060) Thermostatic cartridge (507132) Plug (028612) Nut (009111) Pin (003146) O-ring (063060) Adjusting ring (104061) Cartridge (024092) Stopper (049108) - Page 8 The right to modify designs and dimensions is reserved. Christo Lefroy Brooks is a member of ACID (Anti Copying in Design).
