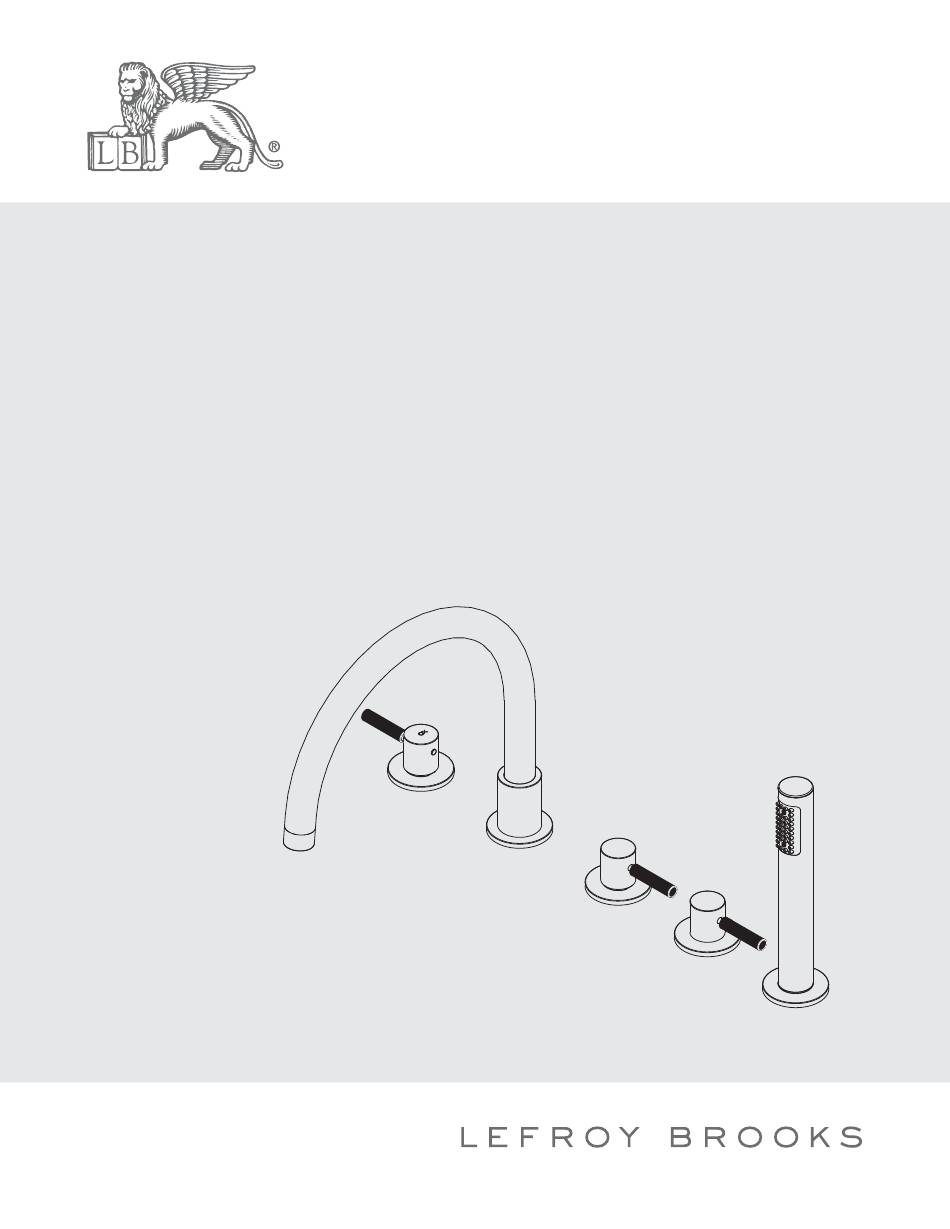

- Page 1 INSTALLATION INSTRUCTIONS X1-1056 ZU DECK 5-HOLE BATH SET & PULL-OUT HAND SHOWER WITH DECK DIVERTER - TRIM ONLY, TO SUIT R1-4007 ROUGH...
- Page 2 Dimensions in Inches (& Millimetres) Ø1 9/16" (Ø40mm) 4-Ø2 3/8" (4-Ø60mm) Ø2 3/8" (Ø60mm) 9 15/16" (252mm) 11 1/8" (282mm) Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process.
- Page 3 What you need to know Tools: Maintenance Adjustable Wrench Your new bathroom faucet is designed for years Groove Joint Pliers of trouble-free performance. Hacksaw Keep it looking new by cleaning it periodically with Phillips Screwdriver a soft cloth. Avoid abrasive cleaners, wire wool and Pipe Tape harsh chemicals as these will dull the finish and Spatula...
-
Page 4: Installation Procedure
Steps 1-2 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Make sure that main water supply is shut Install escutcheons and handles. off before further installation. Take off all... - Page 5 Steps 3-4 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Attach hand shower with final trim Install spout and finish installation by installation. inserting set screw into access hole in back...
- Page 6 Steps 5 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. After installing faucet, remove aerator and open the hot and cold supplies. Check for leaks. Turn on faucet handle for one minute to flush debris from faucet.
-
Page 7: Exploded View
Exploded View Parts List Handle sleeve (038104) Aerator insert (114237R) Adaptor (067591) Handle stem (108926) Plug (028008) Escutcheon (303454) Handle seat (215502-51) Set screw (292562) Handle seat (215502) Screw (053031) Spout assembly (139842) Handshower (S2111104) Handle adaptor (110325) Pin (003150) Escutcheon (071390) Escutcheon (215462) O-ring (004007) - Page 8 The right to modify designs and dimensions is reserved. Christo Lefroy Brooks is a member of ACID (Anti Copying in Design).
