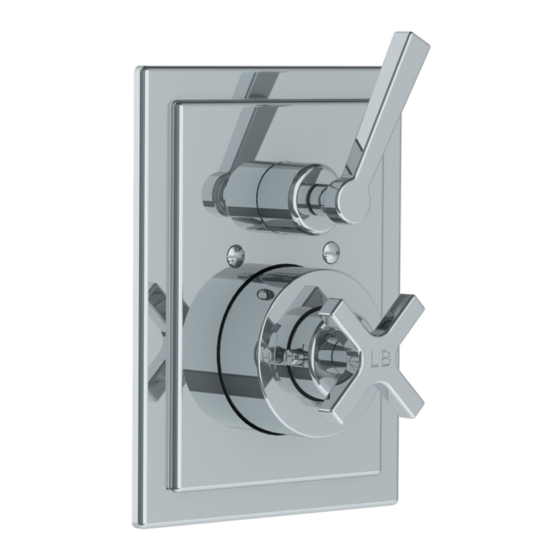

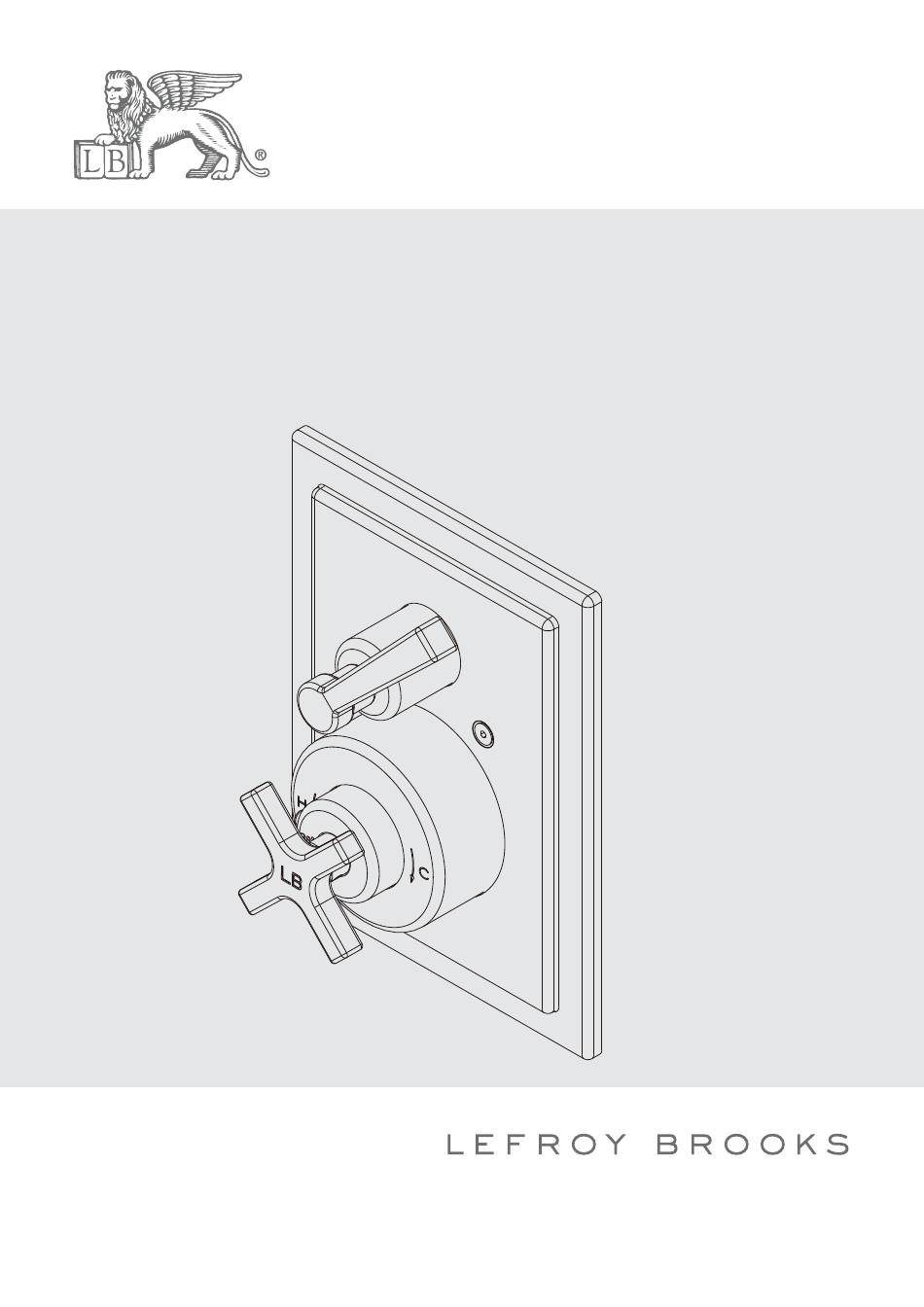

- Page 1 INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS M1-4405 (MK 8706) CROSS HANDLE with “LB” LOGO THERMOSTATIC WITH LEVER FLOW CONTROL TRIM ONLY, TO SUIT M1-4201 ROUGH...
-
Page 2: Table Of Contents
Contents Dimensions Instalation Procedure Parts List Fault Finder Safety Tips, Care and Maintenance Guarantee... -
Page 3: Dimensions
Dimensions in Inches (& Millimetres) 5 7/8" (150mm) 15/16" 4 3/4" (24mm) (120mm) 45° 1 7/16" (36mm) 1 9/16"~2 15/16" (40~75mm) 3 3/8" (86mm) Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process. -
Page 4: Instalation Procedure
Installation Procedure Steps 1-4 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. 1 3/8"~1 5/8" Wall surface (35mm ~ 42mm) 3 1/8”-4 1/8” 80mm~105mm Outlet Cold supply Hot supply... - Page 5 Installation Procedure Steps 5-8 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Take out the stopper. Turn on the flow controller. Turn the thermostatic cartridge until the water temperature is at 38.
- Page 6 Installation Procedure Steps 9-12 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Horizontal Install the canopies. Fix the front plate with screws. Fix the canopy with screw. When it is fixed, check that the temperature-limit-button is in the horizontal position.
-
Page 7: Parts List
Parts List Exploded view Canopy (018960) Pin (003147) Stem extension (110386) Canopy (018959-52) Clip (012242) Adjusting ring (104295) Screw (008196) Set screw (065086) Handle (029686) Screw (008186) Set screw (292598) Front plate (006584) Limit button (036272) Oil seal (010940) Spring (005157) Spacer (013816) Handle (029685-51) Allen key (031000) -
Page 8: Fault Finder
Fault Finder Fault Cause Rectification Wobbling of handle. The fixing screw comes loose. Check for fixing screw and re-tighten it properly. Wobbling of canopy. The canopy comes loose. Check and tighten the canopy. -
Page 9: Safety Tips, Care And Maintenance
Safety Tips, Care and Maintenance Safety Tips If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to applying flame, otherwise you will void the warranty. Cover drain openings to avoid losing small parts. When cutting or soldering pipe, use safety glasses to protect your eyes. Important Points Prior to beginning installation. -
Page 10: Guarantee
Not Covered by this Guarantee Damage or defects arising from incorrect installation, improper use or lack of maintenance. Installed product damaged in transit Consequential loss, damage or product removal and installation costs. Lefroy Brooks is not responsible for any on site labour charges. - Page 11 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
