Summary of Contents for Lefroy Brooks M2-1121

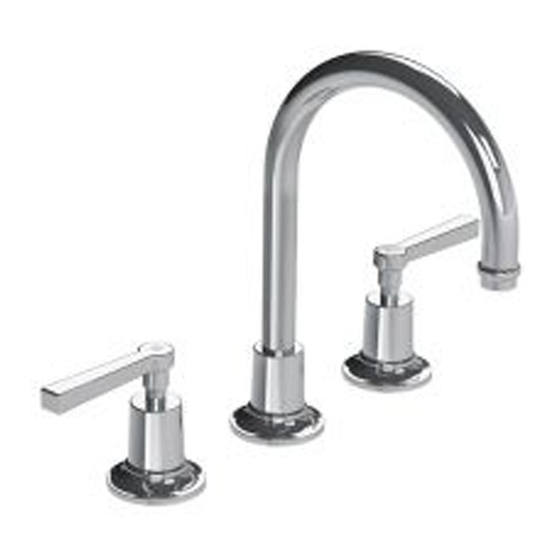

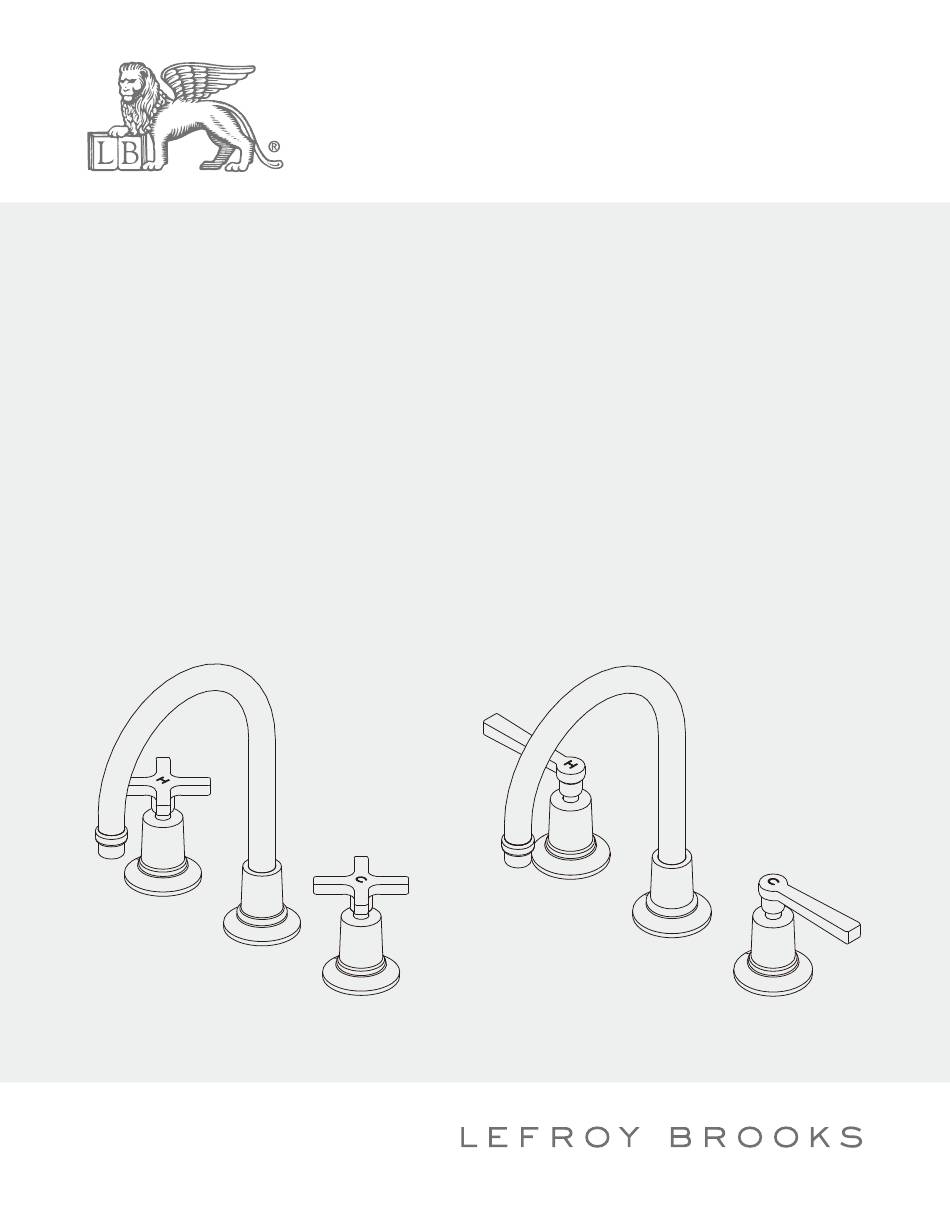

- Page 1 INSTALLATION INSTRUCTIONS M2-1120 FLEETWOOD CROSS HANDLE 3-HOLE BASIN MIXER M2-1121 FLEETWOOD LEVER 3-HOLE BASIN MIXER M2-1120 M2-1121...
- Page 2 Dimensions in Inches (& Millimetres) M2-1120 Ø 2 3/16" 6" (Ø55mm) (152mm) Ø2 3/16" (Ø55mm) Ø2 3/16" (Ø55mm) 2-1/2-14NPSM-2A M2-1121 6" (152mm) Ø 2 3/16" (Ø55mm) 3 1/8" (80mm) Ø 2 3/16" Ø 2 3/16" (Ø55mm) (Ø55mm) 2-1/2-14NPSM-2A Whilst every effort is made to ensure accuracy, design and dimensions are subject to...
- Page 3 What you need to know Tools: Maintenance Adjustable Wrench Your new bathroom faucet is designed for years Groove Joint Pliers of trouble-free performance. Hacksaw Keep it looking new by cleaning it periodically with Phillips Screwdriver a soft cloth. Avoid abrasive cleaners, wire wool and Pipe Tape harsh chemicals as these will dull the finish and Spatula...
-
Page 4: Installation Procedure
Steps 1-4 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Set Screw Alternative nuts Install left handle assembly, headwork Fit spout and install the connector assem- cover and side body. - Page 5 Steps 5 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Remove aerator and turn on water to remove any left over debris. Re-assemble aerator. Warning! When installing flexible hose, please notice: 1.
-
Page 6: Exploded View
Exploded View Parts List M2-1120 Spout assembly (139376W) Oil-seal (058094) Cartridge (507907N) Oil-seal (010519N) Washer (013006) Escutcheon (071473) Aerator insert (553661N) Nut (009015) O-ring (004617) Aerator housing (305856-54) Connector (015004W) Oil-seal (010017) Handle (029685H-T) Handle (029685C-T) Washer (013158) Set screw (075209) Canopy (018295) Nut (009834) O-ring (004026N) - Page 7 Exploded View Parts List M2-1121 Spout assembly (139376W) Washer (013797) Stem extension (110409) Oil-seal (010519N) Oil-seal (058094) Adaptor (057507) Aerator insert (553661N) Washer (013006) Cartridge ( C ) (507176N) Aerator housing (305856-54) Nut (009015) Escutcheon (071473) Handle (029686H-T) Connector (015004W)
- Page 8 The right to modify designs and dimensions is reserved. Christo Lefroy Brooks is a member of ACID (Anti Copying in Design).
