Summary of Contents for Lefroy Brooks 1250

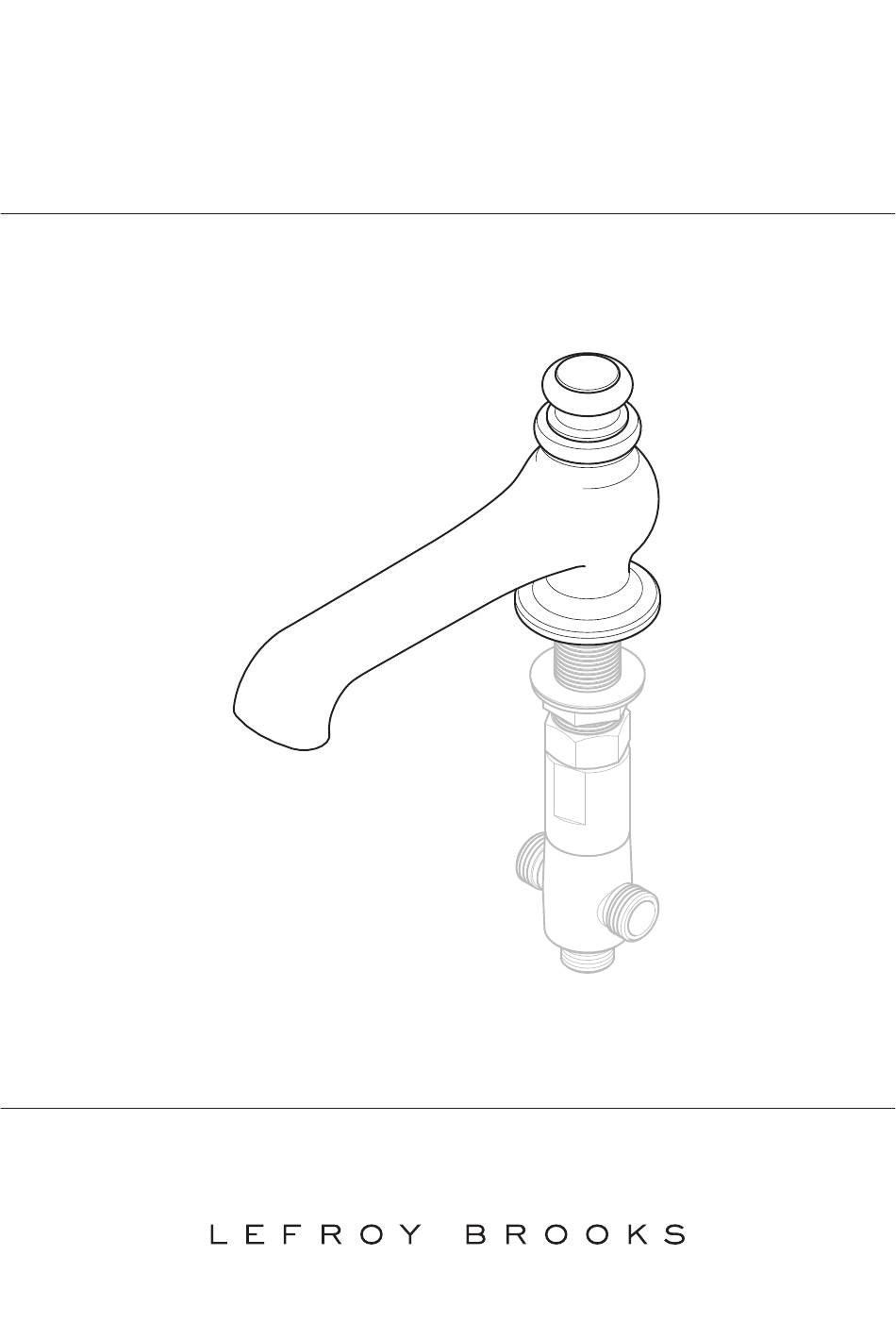

- Page 1 1250 / 1252 FOUR HOLE BATH SET (SPOUT AND DIVERTER) INSTALLATION GUIDE...
- Page 3 DIMENSIONS 1250 750mm maximum 170mm Ø73mm Ø55mm 177mm 113mm Ø55mm Ø26mm 40mm max. Ø32mm 55mm max. 27mm Ø32mm 60mm max. G¾ G¾ 1500mm long 1252 750mm maximum Ø75mm 207mm 215mm 104mm Ø50mm Ø65mm Ø32mm Ø26mm 57mm Ø33mm 50mm max. 40mm max.
- Page 4 TYPICAL FLOW RATES 1250 Handset Spout Flow (Litres/minute) Note: Balanced pressures shown are applied directly to the hot and cold inlets; flow rates indicated are free flowing and may vary subject to restrictions created by installation, pipework, layout or application.
- Page 5 Suits all systems Servicing This Lefroy Brooks product is potentially All serviceable parts are available to maintain suitable for every possible application, type of your Lefroy Brooks product. boiler and water supply pressure. However,...
- Page 6 INSTALLING THE SPOUT/DIVERTER 1 Disassemble the spout and diverter • There is a set screw located in the diverter knob. After removing the spout and diverter assembly from the packaging unscrew the set screw using the hexagonal key (included) (A). •...
- Page 7 3 Fit the diverter • Carefully insert the diverter rod assembly back into the spout (F). It is important to check that the green fibre washer is still located inside the locking nut. Important note: There are two ‘o’ rings at the top of the plastic tube.
- Page 8 4 Setting the diverter • Before fitting the diverter knob, turn both hot and cold water supplies on. • Check that water flows from the spout only. • Pull the threaded rod upward and check water flows from the shower handset only. •...
-
Page 9: Fault Finding
INSTALLING THE FLOW VALVES Please refer to the separate guide ‘Deck mounted flow valves’ for installation details FAULT FINDING The hot/cold taps are turned off but the spout drips continuously. • Replace the ceramic cartridge(s). See ‘Replacement parts’ section for spare part numbers. With the hot/cold taps turned on, water comes from the spout and handset at the same time. - Page 10 SERVICING – CLEANING THE SPOUT AERATOR Only applicable on 1252 models Washer Aerator Cover 1 There is an aerator located in the end of the 2 The aerator can be cleaned in warm soapy spout. To remove this unscrew and remove water.
- Page 11 PHL037 – ¾" x ½ turn ceramic cartridges for cross handles/handwheels (pair) PBS019 – ¾" x ½" braided hoses (pair) LB2101 – Shower hose PSH071 – 1250 spout diverter assembly only (May 2016 onward) PSH079 – 1252 spout diverter assembly only PSH127 – 1252 spout aerator assembly...
- Page 12 20.065.097E / MARCH 2024 CONTRACT ENQUIRIES +44 (0)1992 708 316 info@lefroybrooks.co.uk CUSTOMER SERVICE, SPARES & TECHNICAL ENQUIRIES +44 (0)1902 390 894 technical@lefroybrooks.co.uk L E F R O Y B R O O K S . C O . U K Whilst every effort is made to ensure the accuracy of these, they are subject to change without notice as part of the company’s product development process.
- Page 13 2143 DECK MOUNTED HAND SHOWER INSTALLATION GUIDE...
- Page 15 Servicing Suitable access should be available to aid any Suits all systems future maintenance/servicing. Installing isolation This Lefroy Brooks product is potentially suitable valves will make servicing much easier (not for every possible application, type of boiler and supplied). water supply pressure. However, if your supply...
- Page 16 DIMENSIONS Ø53mm 84mm Ø75mm 187mm 55mm Ø33mm maximum Hand shower hose 2000mm (2 metres) long. Not to scale...
- Page 17 TYPICAL FLOW RATES min Total 10.0 14.0 18.0 22.0 25.0 a a PSH081 raided hose connected to nd shower. This gave 10.0 15.0 20.0 25.0 ed to a shower hose Flow (Litres/minute) Note: Balance pressures shown are applied directly to the hot and cold inlets; flow rates indicated are free flowing and may vary subject to restrictions created by installation, pipework, layout or application.
-
Page 18: Installation
INSTALLATION 1 Cut a suitable hole in the work surface for the 5 Screw the shower hose onto the bottom of holster. the hand shower then rest the hand shower 2 Locate the holster into the hole (A). in the holster (D). 3 With the washer in place, screw the flange nut 6 Connect the shower to a mixed water supply. - Page 19 SERVICING GUIDELINE Washer Washer Braided hose Washer Flexi-hose Washer Flange nut Holster REPLACEMENT PARTS PSH043 – Flexible & braided hose set, excluding holster. PSH105 – Deck mounted holster including washer and flange nut. MK 2104 – Hand shower rose.
- Page 20 20.065.310A / MARCH 2021 CONTRACT ENQUIRIES +44 (0)1992 708 316 info@lefroybrooks.co.uk CUSTOMER SERVICE, SPARES & TECHNICAL ENQUIRIES +44 (0)1902 390 894 technical@lefroybrooks.co.uk L E F R O Y B R O O K S . C O . U K Whilst every effort is made to ensure the accuracy of these, they are subject to change without notice as part of the company’s product development process.
- Page 21 DECK MOUNTED FLOW VALVES INSTALLATION GUIDE...
- Page 22 DIMENSIONS 72mm 82mm 68mm 93mm 95mm 86mm 88mm 75mm Ø55mm Ø55mm Ø55mm Ø55mm 1900 Classic lever 1900 Classic 1900 Classic star 1900 Classic lever cross handle (LB) white ceramic (WL) handle (LS) black ceramic (BL) 65mm 100mm 90mm 69mm 119mm 84mm 90mm 85mm...
- Page 23 DIMENSIONS AND IDENTIFICATION Shown with cross handle. The dimensions shown also apply to lever models. Cross handle or lever assembly Ceramic cartridge Deck plate Mounting surface/deck Washer Basin valve – 28mm diameter nominal Backnut Basin valve – 50mm maximum Bath valve – 34mm diameter nominal Bath valve –...
- Page 24 TYPICAL FLOW RATES Bath valve Flow (Litres/minute) Basin valve Flow (Litres/minute) Note: Balanced pressures shown are applied directly to the inlet of the valve; flow rates indicated are free flowing and may vary subject to restrictions created by installation, pipework, layout or application.
- Page 25 Suits all systems will increase the pressure in the flexible hoses. This Lefroy Brooks product is potentially suitable for every possible application, type of boiler and Water quality water supply pressure. However, if your supply...
- Page 26 FLOW VALVE INSTALLATION Shown with cross handle. The same procedure also applies to lever models. Before continuing please be aware that on 2 Support the flow valve body then unscrew and lever models it is important to keep the flow remove the cross handle/lever assembly (A) valve bodies and lever assemblies together as from the valve body.
- Page 27 FLOW VALVE INSTALLATION Splines Deck plate below ceramic cartridge Ceramic cartridge 4 Locate the flow valve through the hole in the 7 Rotate the flow valve body so that the side mounting surface (C). outlet port is facing the required direction for 5 Screw the deck plate onto the top of the connection.
- Page 28 FLOW VALVE INSTALLATION Shown with cross handles. The same procedure applies to lever models. Vertical movement Splines Rotate the shroud until vertical cross handle/lever movement is eliminated 8 With the cross handle/lever ‘hot/H’ or 9 Rotate the deck plate to meet the cross ‘cold/C’...
- Page 29 SERVICING – CARTRIDGE REPLACEMENT Shown with cross handle. The same procedure applies to lever models. Before continuing please ensure that the 2 Support the flow valve body. Unscrew and water supplies have been isolated and drained remove the ceramic cartridge using a 17mm where necessary.
- Page 30 SERVICING – REPLACING THE LEVER CERAMIC/CRYSTAL HANDLE ON BL, WL & CR MODELS 1 Push the threaded screw throught the centre 3 To secure, grip the ceramic handle and rotate of the replacement ceramic handle. it in a clockwise direction (M). 2 Locate the end of the threaded screw into the hole in the lever body.
- Page 31 FAULT FINDING The hot/cold flow valves are turned off but the spout drips continuously. • Replace the ceramic cartridge(s). See below for spare part numbers and the ‘servicing – cartridge replacement’ section. The cross handle/lever feels loose and has vertical/up and down movement. •...
- Page 32 20.065.105E / JANUARY 2022 CONTRACT ENQUIRIES +44 (0)1992 708 316 info@lefroybrooks.co.uk CUSTOMER SERVICE, SPARES & TECHNICAL ENQUIRIES +44 (0)1902 390 894 technical@lefroybrooks.co.uk L E F R O Y B R O O K S . C O . U K Whilst every effort is made to ensure the accuracy of these, they are subject to change without notice as part of the company’s product development process.
