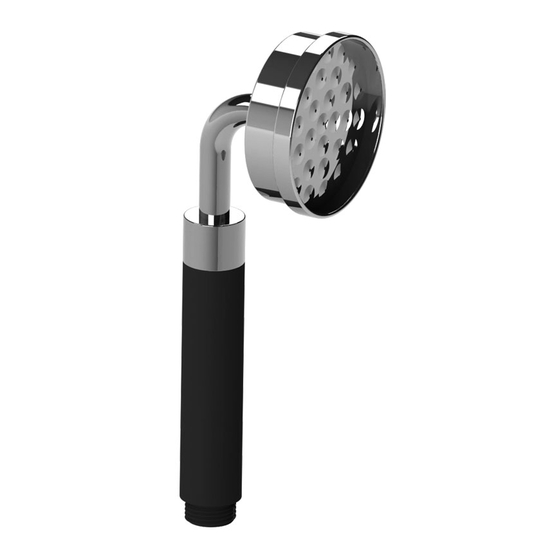

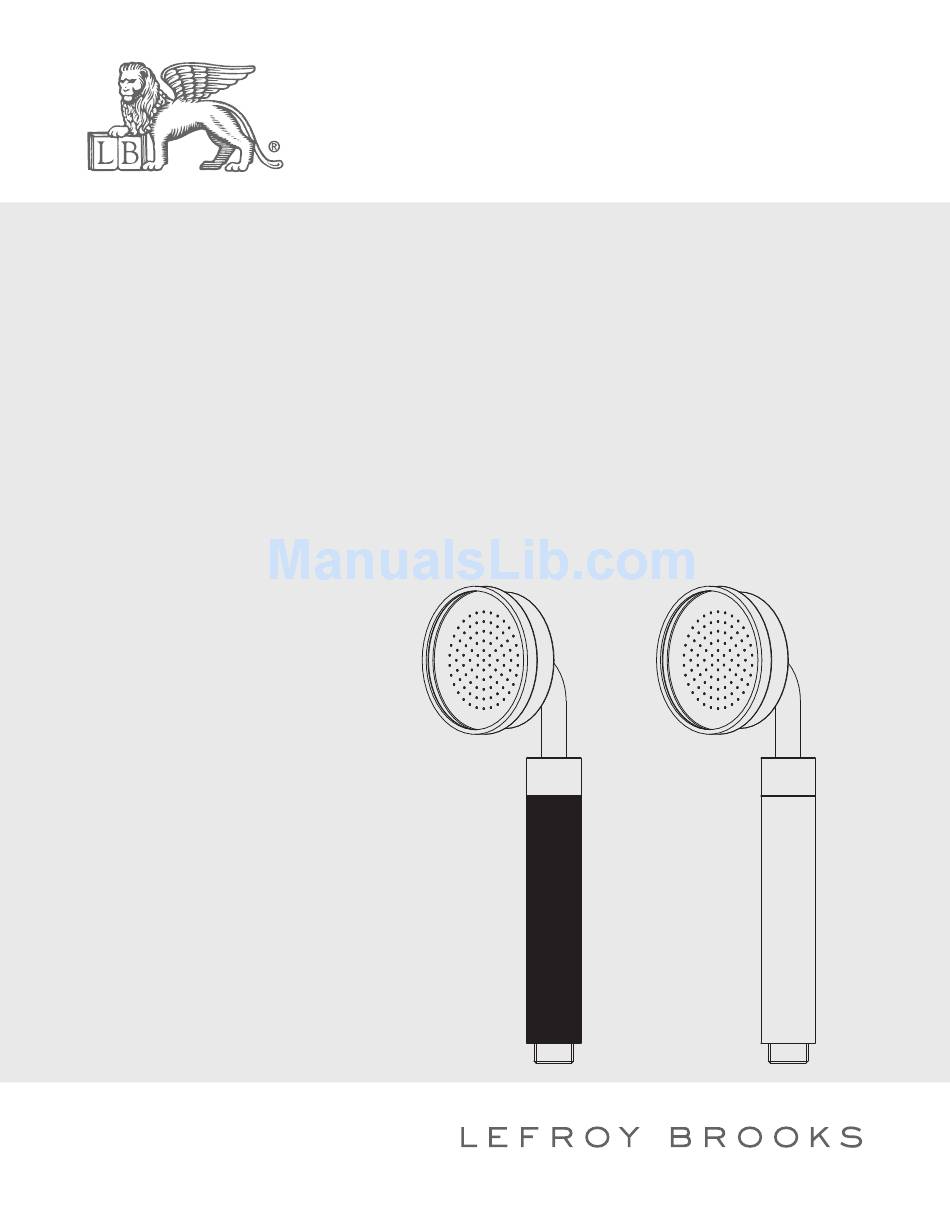

- Page 1 INSTALLATION INSTRUCTIONS Y1-1055 BLACK HAND SHOWER Y1-1056 WHITE HAND SHOWER Y1-1057 Y1-1055 Y1-1056 Y1-1057 METAL-FINISH HAND SHOWER...
- Page 2 Dimensions in Inches (& Millimetres) Y1-1055, Y1-1056, Y1-1057 2 7/8" (72.5mm) 1/2-14NPSM Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process.
- Page 3 What you need to know Tools: Maintenance Adjustable Wrench Your new bathroom faucet is designed for years Groove Joint Pliers of trouble-free performance. Hacksaw Keep it looking new by cleaning it periodically with Phillips Screwdriver a soft cloth. Avoid abrasive cleaners, wire wool and Pipe Tape harsh chemicals as these will dull the finish and Spatula...
-
Page 4: Installation Procedure
Steps 1 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Tighten the handshower to a shower hose (which is not included in this product package) by hand. -
Page 5: Exploded View
Exploded View Parts List Y1-1055 Shower head (112695) Blocker (112693) O-ring (004037N) Shower arm assembly (020307) O-ring (004509) Adaptor (057263) Handle grip (112607) Check-valve (519236) Spring (112694) - Page 6 Parts List Y1-1056 Y1-1057 Shower head (112695) Disperser (112693) O-ring (004037N) Shower arm assembly (020307) O-ring (004509) Adaptor (057263) Handle grip (117213) Inner pipe (117214) O-ring (048033N) Check-valve (519236) Spring (112694)
- Page 8 The right to modify designs and dimensions is reserved. Christo Lefroy Brooks is a member of ACID (Anti Copying in Design).
