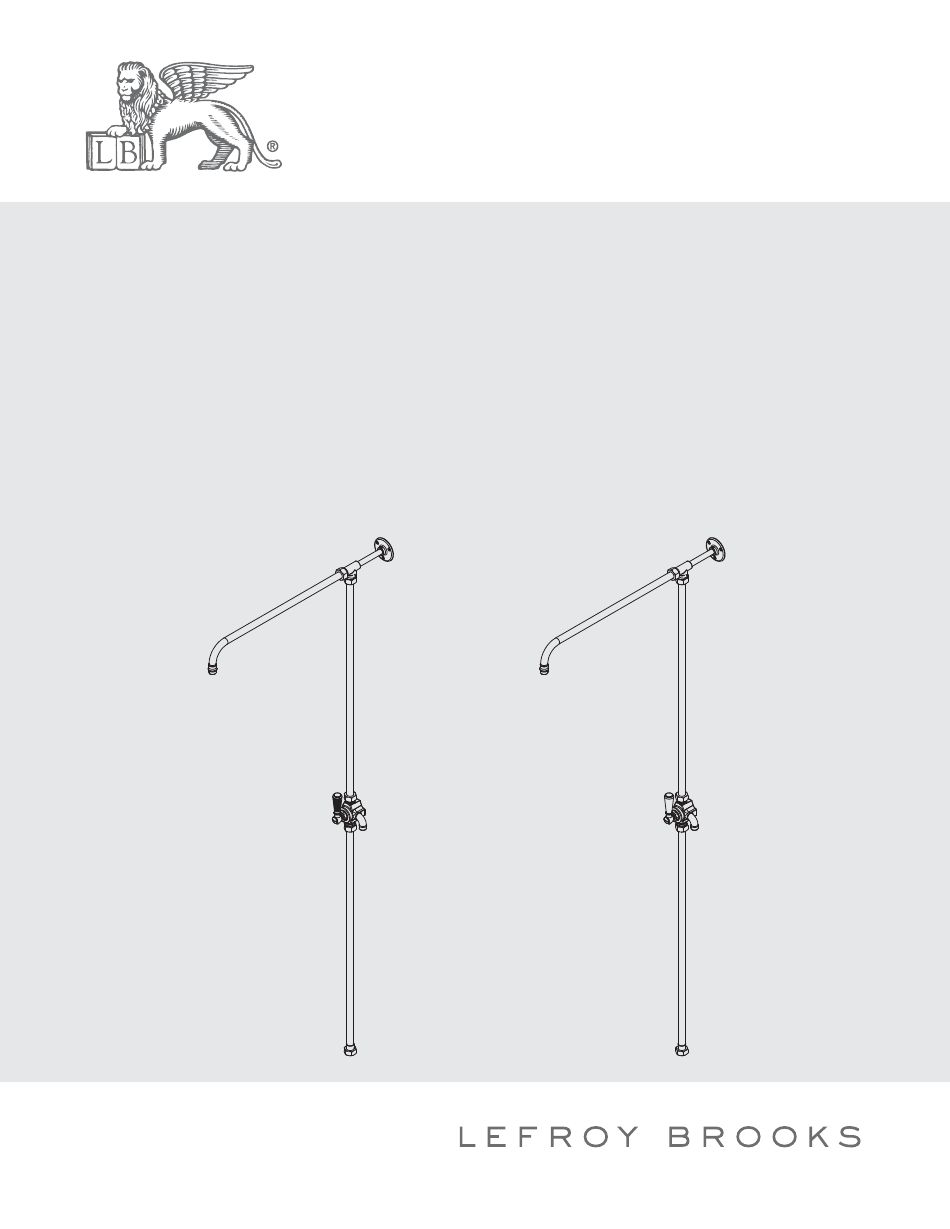

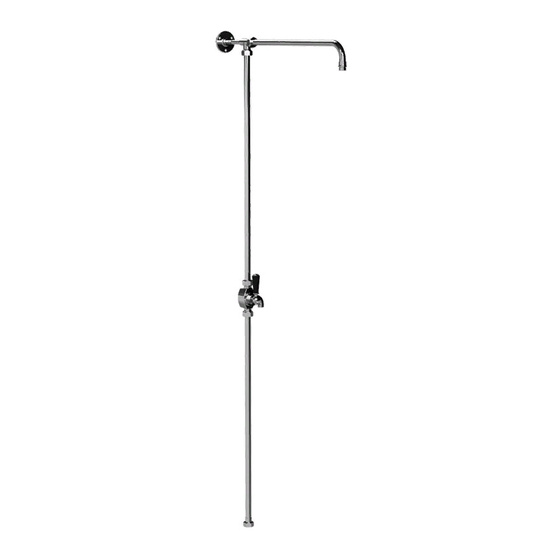

- Page 1 INSTALLATION INSTRUCTIONS CB-4626 RISER KIT WITH BLACK LEVER DIVERTER TO SUIT WALLMOUNTED EXPOSED VALVES & BATH/ SHOWER VALVES CW-4626 RISER KIT WITH WHITE LEVER DIVERTER TO SUIT WALLMOUNTED EXPOSED VALVES & BATH/ SHOWER VALVES CB-4626 CW-4626...
- Page 2 Dimensions in Inches (& Millimetres) CB-4626 CW-4626 Ø2 3/4" (70mm) 5 3/16" 7/8" (131.5mm) (530mm) 1/2-14NPSM-2A 3/4" (19mm) 3/4-14NPSM-2B Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process.
- Page 3 What you need to know Tools: Maintenance Adjustable Wrench Your new bathroom faucet is designed for years Groove Joint Pliers of trouble-free performance. Hacksaw Keep it looking new by cleaning it periodically with Phillips Screwdriver a soft cloth. Avoid abrasive cleaners, wire wool and Pipe Tape harsh chemicals as these will dull the finish and Spatula...
-
Page 4: Installation Procedure
Steps 1-2 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Product shown as example only Fix riser kit with shower cradle of choice Assemble connecting tube with riser (model shown is for example only) by bracket. - Page 5 Steps 3 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Put the compression olive into the riser bracket and then fix the riser with the bracket. Put the compression olive into the diverter body and then fix the riser with the diverter body.
- Page 6 Steps 4-5 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Product shown as example only Product shown as example only Product shown as example only Fix riser kit to the faucet of choice (model Connect the shower head of choice (model shown is for example only).
-
Page 7: Exploded View
Exploded View Parts List CB-4626 CW-4626 Oil seal (010077) Screw (008245) Wall bracket (120289) Nut (009078) Lever seat (205461) Plastic anchor (291000) Riser kit (064044) Rod (017094) Screw (008003) Body (066014) Lever (108924) Connecting tube (017981) Diverter Cartridge (507775N) Lever cap (109376) - Page 8 The right to modify designs and dimensions is reserved. Christo Lefroy Brooks is a member of ACID (Anti Copying in Design).
