FRAMES AND WORKSURFACES
Description:
120 HA FRAME
ATTACH POWER POLE MOUNT (OPTIONAL)
Power Pole
Mount
NOTE: For Power Pole assembly,
refer to HABN_324.

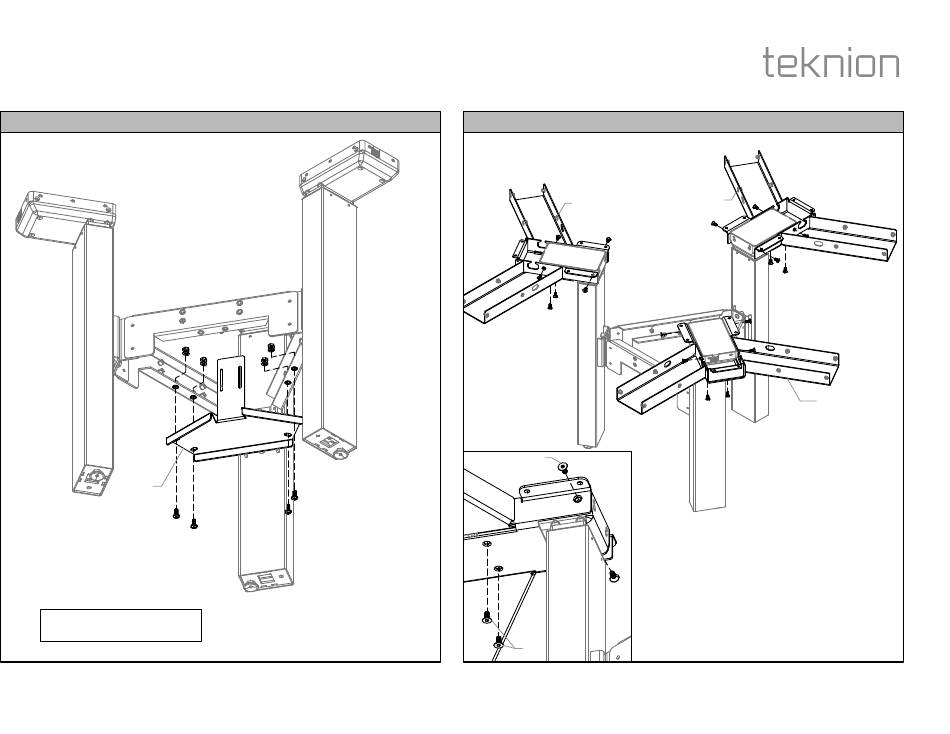

STEP 3: Attach Power pole mount as shown above with screws and washers provided.
Installation Guides
ASSEMBLE CENTRE LEG TOP MOUNT
A17b
A17b
STEP 4: Assemble Centre Top mount with screws provided.
A3
A3
Date:
May 2022
Page No:
5 of 18
HABN_123
A3
