Teknion Navigate 120 HA Frame HNBFNT Installation Manuals page 4

height-adjustable bench
Section: FRAMES AND WORKSURFACES
Description:
120 HA FRAME

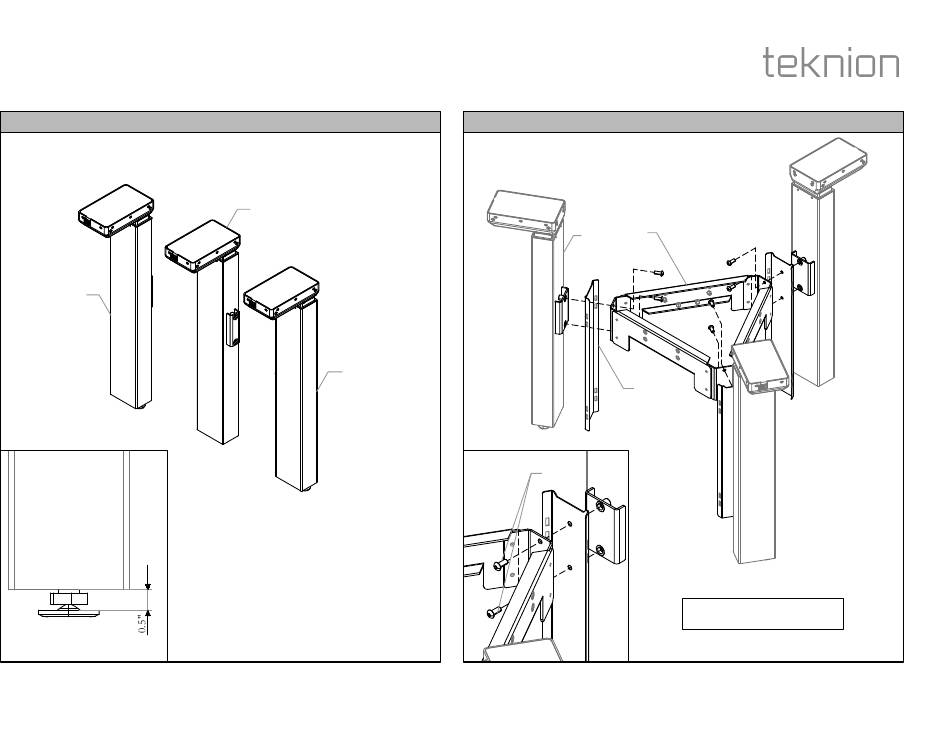

LEVELLER ADJUSTMENT
A2
STEP 1: Adjust the Leveller to have a 0.5" Gap on all the Legs.
Installation Guides
A6
A5
ASSEMBLE LEG AND MID GABLE STRATCHER
A1
A2
Hanger
Plate
A17c
STEP 2: Assemble legs and Mid Gable stretcher as shown above. Assemble Hanger Plate if mid
gable is specified. Secure it using the Screws provided.
Date: May 2022 Page No:
HABN_123
NOTE: For Mid Gable assembly,
refer to HABN_224b.
4 of 18
