- Page 1 RTVS8 115—230 VAC TRANSFORMER FAN SPEED CONTROLLER WITH MODBUS RTU COMMUNICATION Mounting and operating instructions...
-
Page 2: Table Of Contents
RTVS8 115—230 VAC TRANSFORMER FAN SPEED CONTROLLER WITH MODBUS RTU COMMUNICATION Table of contents SAFETY AND PRECAUTIONS PRODUCT DESCRIPTION ARTICLE CODES INTENDED AREA OF USE TECHNICAL DATA STANDARDS WIRING AND CONNECTIONS MOUNTING INSTRUCTIONS IN STEPS OPERATING INSTRUCTIONS VERIFICATION OF INSTALLATION TRANSPORT AND STORAGE WARRANTY AND RESTRICTIONS MAINTENANCE... -
Page 3: Safety And Precautions
RTVS8 115—230 VAC TRANSFORMER FAN SPEED CONTROLLER WITH MODBUS RTU COMMUNICATION SAFETY AND PRECAUTIONS Read all the information, the datasheet, Modbus map, mounting and operating instructions and study the wiring and connection diagram before working with the product. For personal and equipment safety, and for optimum product performance, make sure you entirely understand the contents before installing, using, or maintaining this product. -
Page 4: Product Description

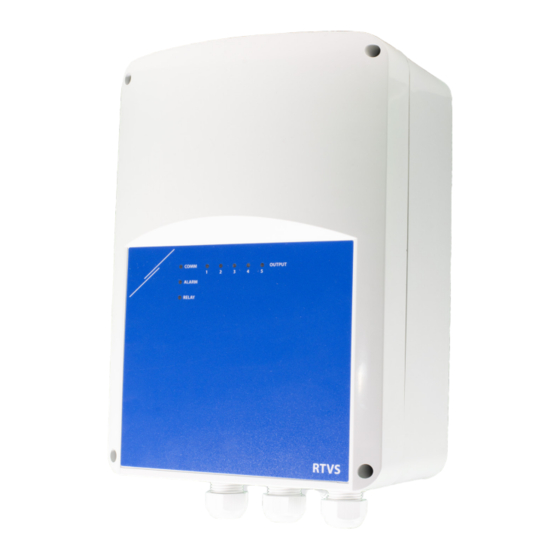

CONTROLLER WITH MODBUS RTU COMMUNICATION PRODUCT DESCRIPTION The RTVS8 series of transformer fan speed controllers are intended for regulating the speed of single-phase voltage controllable motors (115—230 VAC / 50—60 Hz) in five steps by varying the output voltage. They are equipped with auto-transformer(s) and feature Modbus RTU communication and TK monitoring for thermal motor protection. -
Page 5: Wiring And Connections
RTVS8 115—230 VAC TRANSFORMER FAN SPEED CONTROLLER WITH MODBUS RTU COMMUNICATION ■ EMC Directive 2014/30/EC: EN 60730-1:2011 Automatic electrical controls for household and similar use - ► Part 1: General requirements ► EN 61000-6-1:2007 Electromagnetic compatibility (EMC) - Part 6-1: Generic standards - Immunity for residential, commercial and light-industrial environments ►... -
Page 6: Mounting Instructions In Steps
RTVS8 115—230 VAC TRANSFORMER FAN SPEED CONTROLLER WITH MODBUS RTU COMMUNICATION ATTENTION Make sure you use cables with an appropriate diameter. MOUNTING INSTRUCTIONS IN STEPS Before you start mounting the unit, read carefully “Safety and Precautions” and follow these steps. Choose a smooth solid surface for installation (a wall, panel, etc.). - Page 7 RTVS8 115—230 VAC TRANSFORMER FAN SPEED CONTROLLER WITH MODBUS RTU COMMUNICATION Insert the cables through the cable glands and do the wiring according to the wiring diagram (see Fig. 3) while adhering to the information from section “Wiring and connections” above. Connect the power supply line (terminals L, N marked as INPUT and Pe);...
- Page 8 In automatic mode, a Sentera potentiometer with Modbus RTU communication can be connected to RTVS8. Via the optional DADCM analogue input module, RTVS8 series can be controlled via an external 0-10 Volt signal. To obtain demand based fan speed control, RTVS8 can be combined with a Sentera HVAC sensor.
- Page 9 RTVS8 115—230 VAC TRANSFORMER FAN SPEED CONTROLLER WITH MODBUS RTU COMMUNICATION Application example 4: Automatic mode - control via a digital potentiometer RTVS8 series To assure correct communication, the NBT needs to be activated in only two devices on the Modbus RTU network. If necessary, enable the NBT resistor via 3SModbus or Sensistant (Holding register 9).
-
Page 10: Operating Instructions
RTVS8 115—230 VAC TRANSFORMER FAN SPEED CONTROLLER WITH MODBUS RTU COMMUNICATION Operational diagram 115 VAC / 50—60 Hz power supply U (VAC)/ Speed Hysteresis 2—10 % (40) Digital Control signal (40) (dynamic percentage) [%] 230 VAC / 50—60 Hz power supply U (VAC)/ Speed Hysteresis... - Page 11 RTVS8 115—230 VAC TRANSFORMER FAN SPEED CONTROLLER WITH MODBUS RTU COMMUNICATION 3.2.1 Automatic forward mode. See operational diagram below: Each level can take a value from 0 to 100 % with the following restrictions: 0 = OFF, i.e. the step is skipped. For example: Step 1 = 17 %, Step 2 = 34 %, Step 3 = 0 %, Step 4 = 68 %, Step 5 = 85 %, from 34 to 68 % the device will be in Step 2 and above 68% - in Step 4.
-
Page 12: Verification Of Installation
RTVS8 115—230 VAC TRANSFORMER FAN SPEED CONTROLLER WITH MODBUS RTU COMMUNICATION Explanation of specific Modbus registers The unit has factory pre-set parameters written in Modbus map. It can function without any other settings. However, there are some special registers you may need to set depending on you combination of products. -
Page 13: Transport And Storage
RTVS8 115—230 VAC TRANSFORMER FAN SPEED CONTROLLER WITH MODBUS RTU COMMUNICATION TRANSPORT AND STORAGE Avoid shocks and extreme conditions; stock in original packing. WARRANTY AND RESTRICTIONS Two years from the delivery date against defects in manufacturing. Any modifications or alterations to the product after the date of publication relieve the manufacturer of any responsibilities.
