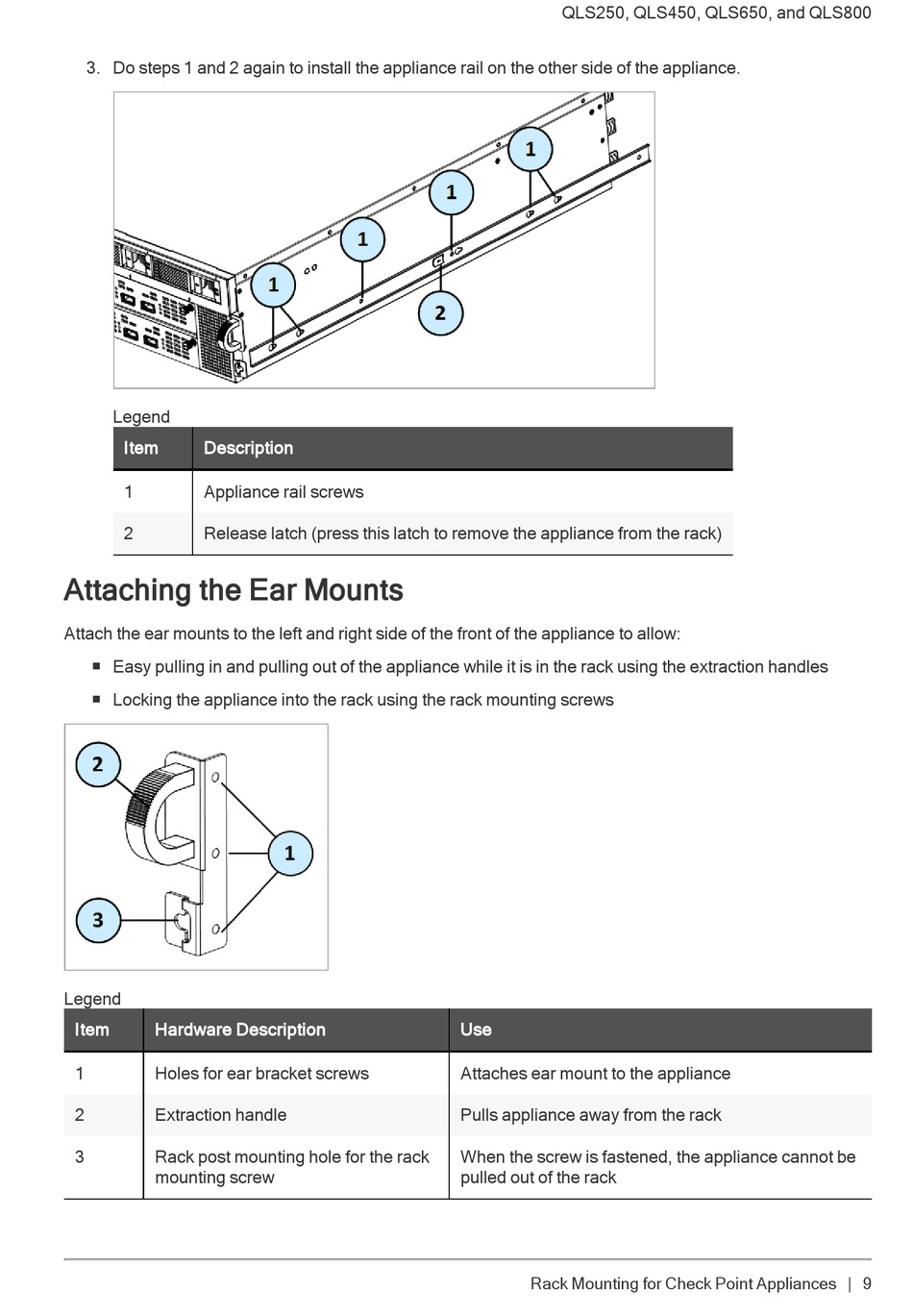

3. Do steps 1 and 2 again to install the appliance rail on the other side of the appliance.
Legend
Item
Description
1
Appliance rail screws
2
Release latch (press this latch to remove the appliance from the rack)

Attaching the Ear Mounts

Attach the ear mounts to the left and right side of the front of the appliance to allow:
Easy pulling in and pulling out of the appliance while it is in the rack using the extraction handles
n
n
Locking the appliance into the rack using the rack mounting screws
Legend
Item
Hardware Description
1
Holes for ear bracket screws
2
Extraction handle
3
Rack post mounting hole for the rack
mounting screw
QLS250, QLS450, QLS650, and QLS800
Use
Attaches ear mount to the appliance
Pulls appliance away from the rack
When the screw is fastened, the appliance cannot be
pulled out of the rack
Rack Mounting for Check Point Appliances   |   9
