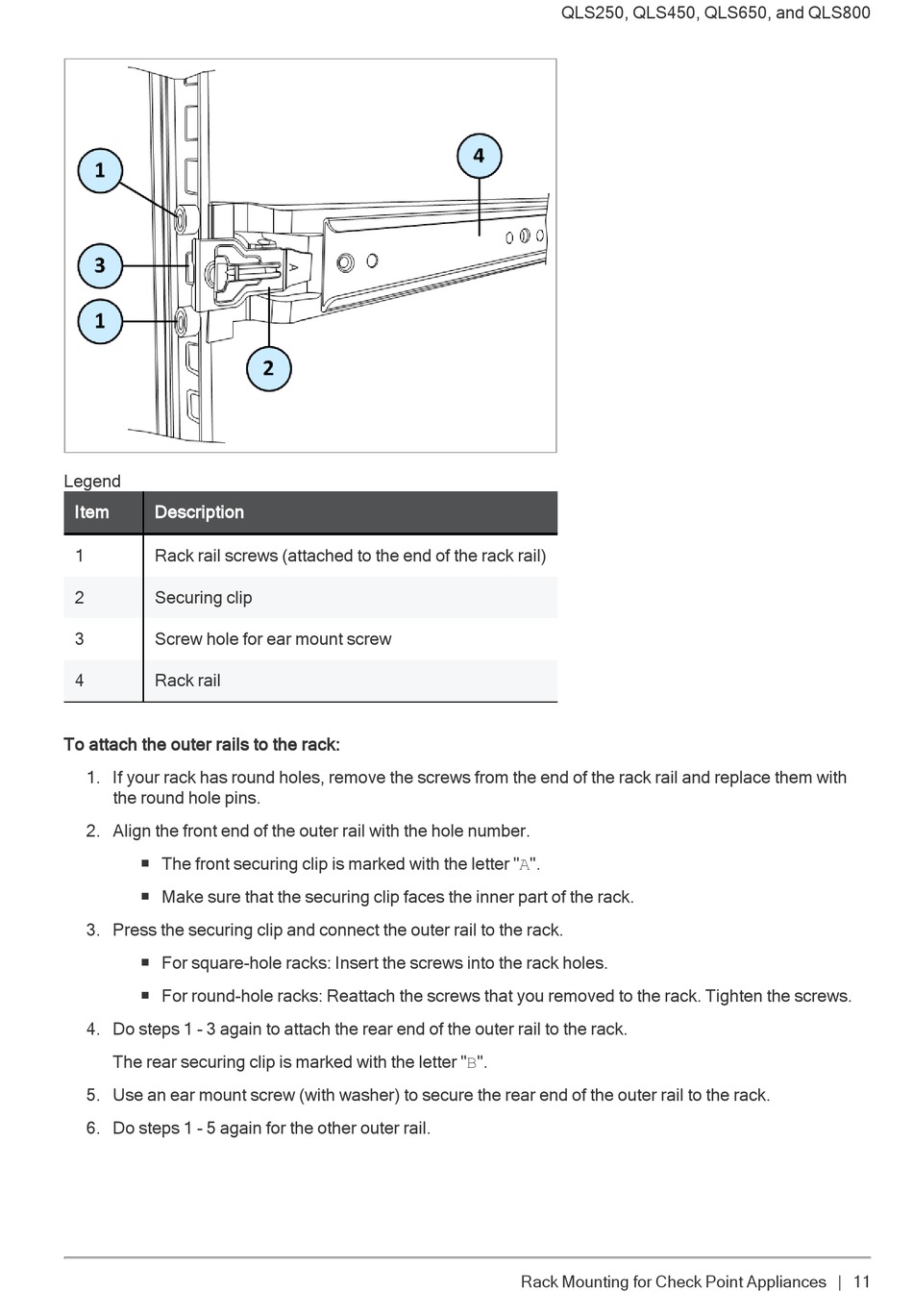

Legend
Item Description
1 Rack rail screws (attached to the end of the rack rail)
2 Securing clip
3 Screw hole for ear mount screw
4 Rack rail
To attach the outer rails to the rack:
1. If your rack has round holes, remove the screws from the end of the rack rail and replace them with
the round hole pins.
2. Align the front end of the outer rail with the hole number.
The front securing clip is marked with the letter "A".
n
Make sure that the securing clip faces the inner part of the rack.
n
3. Press the securing clip and connect the outer rail to the rack.
n For square-hole racks: Insert the screws into the rack holes.
For round-hole racks: Reattach the screws that you removed to the rack. Tighten the screws.
n
4. Do steps 1 - 3 again to attach the rear end of the outer rail to the rack.
The rear securing clip is marked with the letter "B".
5. Use an ear mount screw (with washer) to secure the rear end of the outer rail to the rack.
6. Do steps 1 - 5 again for the other outer rail.
