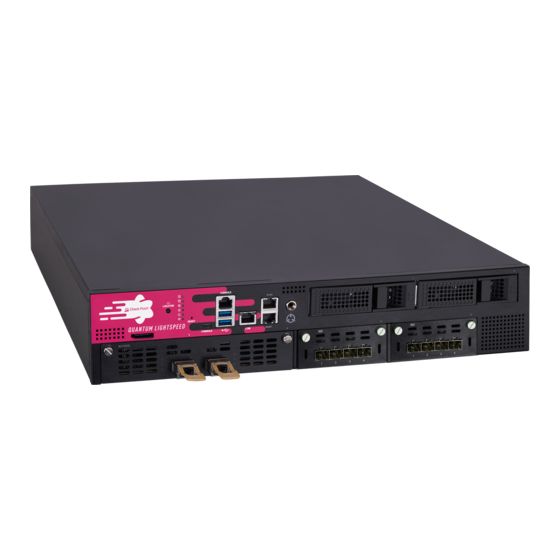

Check Point Quantum LightSpeed Appliance QLS250 Installing And Removing
Installing and removing fans in appliances
Hide thumbs
Also See for Quantum LightSpeed Appliance QLS250:
- Installation manual (17 pages) ,
- Rack mounting manual (24 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Check Point Quantum LightSpeed Appliance QLS250
Summary of Contents for Check Point Quantum LightSpeed Appliance QLS250
- Page 1 21 February 2022 INSTALLING AND REMOVING FANS IN CHECK POINT APPLIANCES...
- Page 2 Check Point. While every precaution has been taken in the preparation of this book, Check Point assumes no responsibility for errors or omissions. This publication and features described herein are subject to change without notice.
- Page 3 Web browser. Download the latest version of this document in PDF format. Feedback Check Point is engaged in a continuous effort to improve its documentation. Please help us by sending your comments. Revision History Date Description 21 February 2022...
- Page 4 Table of Contents Table of Contents Introduction QLS250, QLS450, QLS650, and QLS800 Cooling Fan Units Naming Convention Installing and Removing Fans in Check Point Appliances | 4...
- Page 5 Introduction Introduction This guide applies to these Check Point Appliances: QLS LightSpeed Appliances In This Appliance Document QuantumLightSpeed ApplianceQLS250 QLS250 QuantumLightSpeed ApplianceQLS450 QLS450 QuantumLightSpeed ApplianceQLS650 QLS650 QuantumLightSpeed ApplianceQLS800 QLS800 Important: To protect the appliance and cooling fans from electrostatic discharge, make sure that you are grounded.
- Page 6 Important - When removing a failed cooling fan unit, Check Point recommends that you complete the procedure within 3 minutes to avoid a temporary impact on performance. If you require additional time, Check Point recommends that you shut down the appliance beforehand. QLS250 Appliance Rear Panel...
- Page 7 Do not hot swap more than one cooling fan unit at a time To replace a fan unit: 1. Loosen the screws on the cooling fan unit to be replaced. 2. Hold the screws and pull the cooling fan unit away from the appliance. Installing and Removing Fans in Check Point Appliances | 7...
- Page 8 QLS250, QLS450, QLS650, and QLS800 3. Position the new cooling fan unit in the empty cooling fan tray slot in the appliance. 4. Tighten the screws on the cooling fan unit. Installing and Removing Fans in Check Point Appliances | 8...
- Page 9 System Fan 4 Inside System Fan #5 System Fan 1 Outside System Fan #6 System Fan 2 Outside System Fan #7 System Fan 3 Outside System Fan #8 System Fan 4 Outside Installing and Removing Fans in Check Point Appliances | 9...
