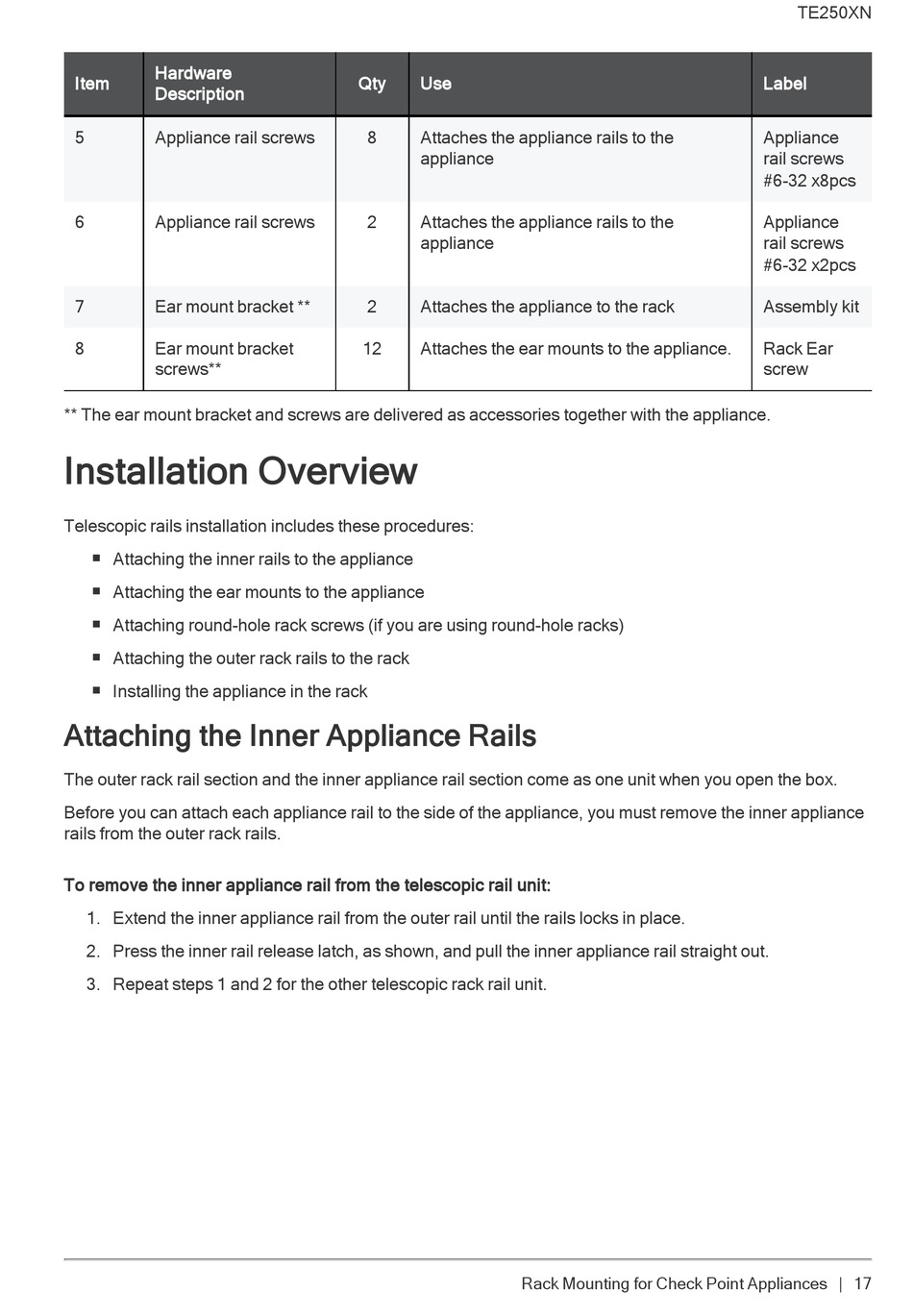

Hardware
Item
Description
5 Appliance rail screws
6 Appliance rail screws
7 Ear mount bracket **
8 Ear mount bracket
screws**
** The ear mount bracket and screws are delivered as accessories together with the appliance.

Installation Overview

Telescopic rails installation includes these procedures:
Attaching the inner rails to the appliance
n
n Attaching the ear mounts to the appliance
Attaching round-hole rack screws (if you are using round-hole racks)
n
Attaching the outer rack rails to the rack
n
n Installing the appliance in the rack

Attaching the Inner Appliance Rails

The outer rack rail section and the inner appliance rail section come as one unit when you open the box.
Before you can attach each appliance rail to the side of the appliance, you must remove the inner appliance
rails from the outer rack rails.
To remove the inner appliance rail from the telescopic rail unit:
1. Extend the inner appliance rail from the outer rail until the rails locks in place.
2. Press the inner rail release latch, as shown, and pull the inner appliance rail straight out.
3. Repeat steps 1 and 2 for the other telescopic rack rail unit.
Qty Use
8 Attaches the appliance rails to the
appliance
2 Attaches the appliance rails to the
appliance
2 Attaches the appliance to the rack
12 Attaches the ear mounts to the appliance.
Rack Mounting for Check Point Appliances | 17
TE250XN
Label
Appliance
rail screws
#6-32 x8pcs
Appliance
rail screws
#6-32 x2pcs
Assembly kit
Rack Ear
screw
