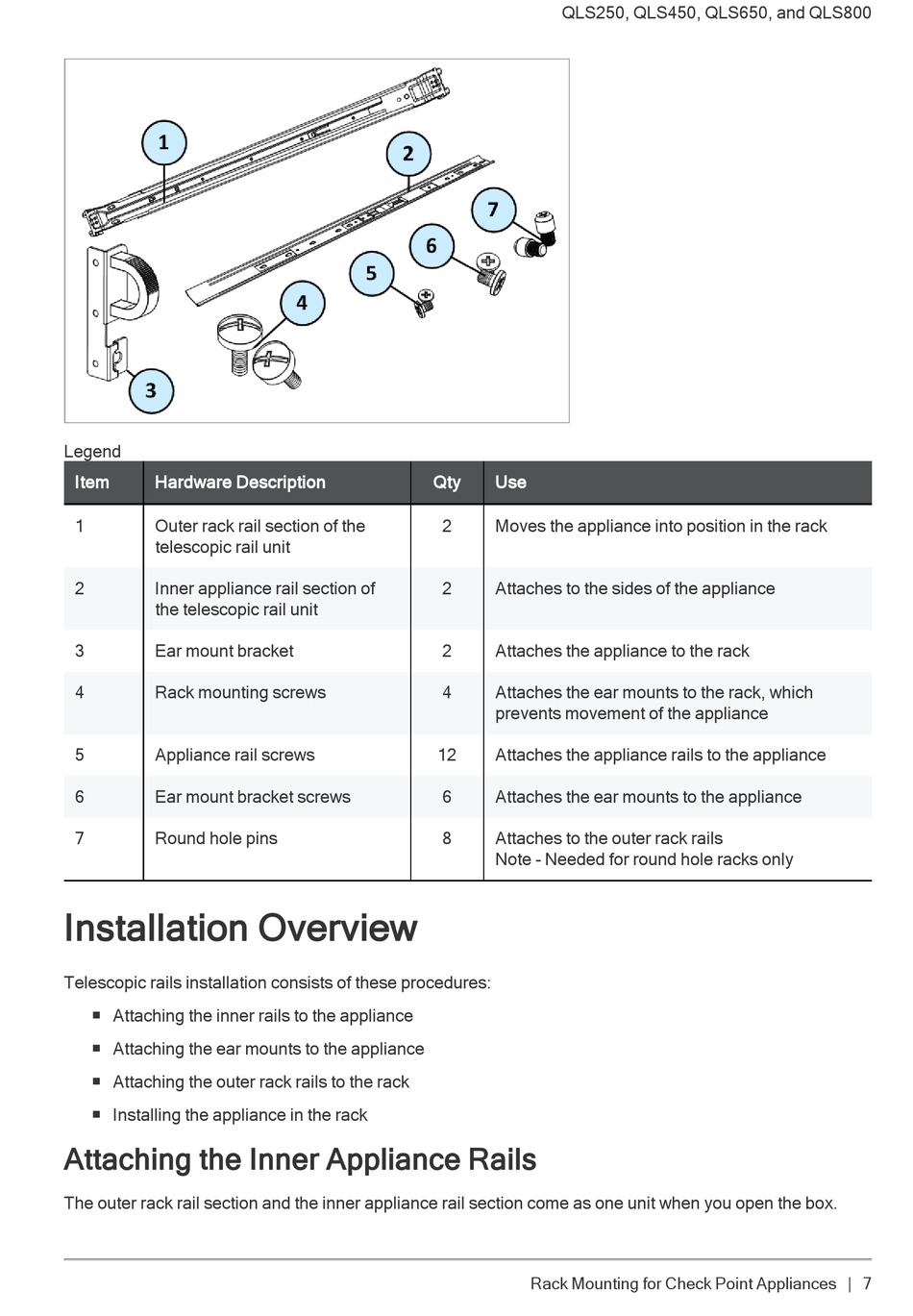

Legend
Item Hardware Description
1 Outer rack rail section of the
telescopic rail unit
2 Inner appliance rail section of
the telescopic rail unit
3 Ear mount bracket
4 Rack mounting screws
5 Appliance rail screws
6 Ear mount bracket screws
7 Round hole pins

Installation Overview

Telescopic rails installation consists of these procedures:
Attaching the inner rails to the appliance
n
Attaching the ear mounts to the appliance
n
Attaching the outer rack rails to the rack
n
Installing the appliance in the rack
n

Attaching the Inner Appliance Rails

The outer rack rail section and the inner appliance rail section come as one unit when you open the box.
QLS250, QLS450, QLS650, and QLS800
Qty Use
2 Moves the appliance into position in the rack
2 Attaches to the sides of the appliance
2 Attaches the appliance to the rack
4 Attaches the ear mounts to the rack, which
prevents movement of the appliance
12 Attaches the appliance rails to the appliance
6 Attaches the ear mounts to the appliance
8 Attaches to the outer rack rails
Note - Needed for round hole racks only
