ASSEMBLY INSTRUCTIONS

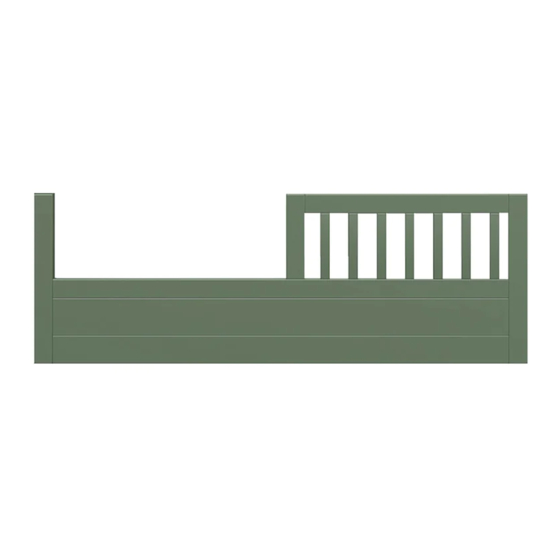

indi toddler rail
a how-to guide that won't leave you in tears

Advertisement

loading
Need help?

Need help?

Do you have a question about the indi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for studioduc indi

Summary of Contents for studioduc indi

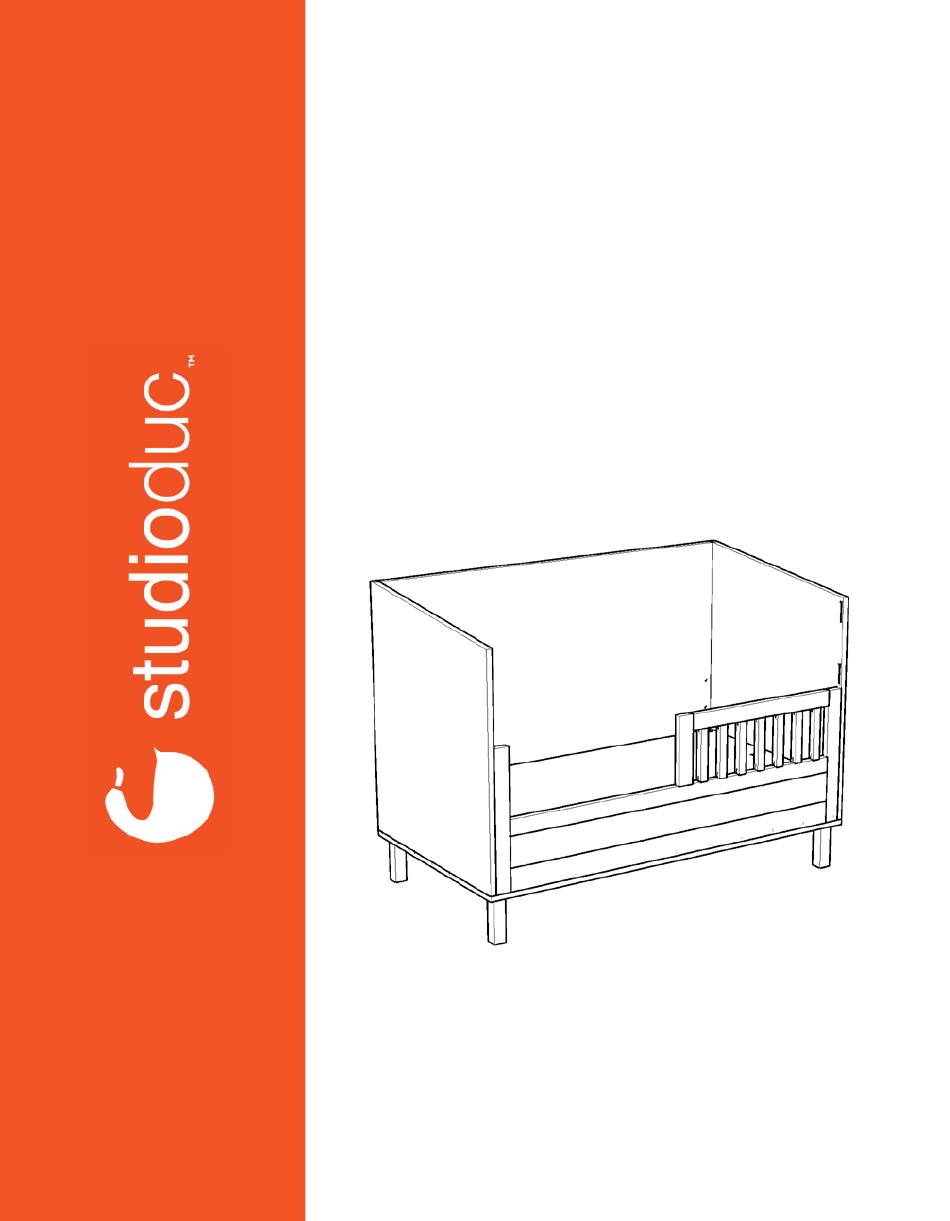

  • Page 1 ASSEMBLY INSTRUCTIONS indi toddler rail a how-to guide that won’t leave you in tears...
  • Page 2 parenting is hard. this is easy. no really, it is. MADE HERE™ MADE WELL™ MADE SAFE MADE SMART...
  • Page 3 want to watch this assembly IRL? (acronym challenged? that means “in real life”.) open the camera on your phone and place it over the QR code below to see our NYC studio dream team do all the heavy lifting (just kidding, there is none!) or go to ducducnyc.com/pages/assembly-instructions...
  • Page 4 thank you for selecting a studio duc product!

  • Page 5: Care And Cleaning

    Please check contents against the components list in these instructions. Also, please ensure there was no damage that may have occurred in shipping. If any components are missing or you find any damage, please contact ducduc before continuing. Read all the instructions before use of the toddler bed/crib. Please remember to securely tighten all bolts and fasteners, and periodically check to make sure every component is properly and securely in place and all bolts and fasteners are tight.
  • Page 6 Read all instructions before assembling crib. KEEP INSTRUCTIONS FOR FUTURE USE. Infants can su ocate on soft bedding. Never add a pillow or comforter. Never place This toddler bed rail is only for use with the indi crib from studio duc, and is not additional padding under infant.
  • Page 7 WHAT’S IN THE BOX: indi toddler rail hammer cap EXISTING PARTS: side rail assembled assembled indi crib upper indi crib base mattress panel G (x4) H (x4) I (x4) J (x4) mattress support bolt 5/16” locking washer 5/16” flat washer...
  • Page 8 WHAT YOU’LL NEED: household hammer or phillips head screwdriver rubber mallet 20 minutes a soft surface to assemble on (or less) (like a rug or some of the corrugate box your piece arrived in) 2 people plus a dog for moral support (unless you’re a cat person)
  • Page 9 use a phillips screwdriver to unscrew all mattress support bolts (H) from mattress panel (E). remove locking washers (I) and flat washers (J) and set all hardware aside for use later. still confused? scan this code to watch the assembly video!
  • Page 10 remove mattress panel (E) and set aside for use later. still confused? scan this code to watch the assembly video!
  • Page 11 remove mattress support pins (G) and set aside for use later. still confused? scan this code to watch the assembly video!
  • Page 12 (B) to the head of a household hammer. have a friend firmly hold on to the assembled indi crib upper (C) and side rail (D) while you tap the assembled crib base (F) with hammer and hammer cap (B). when the assembled indi crib upper (C) is fully detached from the assembled indi crib base (F), gently place both parts on the floor.
  • Page 13 (D), use one hand to firmly hold the assembled indi crib upper (C) in place while pulling up on the side rail (D) to unlock the connection. repeat on the opposite end to fully detach side rail (D).
  • Page 14 (A) into slots on assembled indi crib upper (C). push down at the connections to lock into place. important! be sure the toddler rail bottom is flush with the base of the assembled crib upper.
  • Page 15 (F) as shown in the area where the crib will remain. with a friend, gently lift the assembled indi crib upper (C) and toddler rail (A) and set on top of the assembled crib base (F) making sure the connectors line up with the holes. once everything is aligned, use hammer with hammer cap (B) to tap until secure.
  • Page 16 4 mattress support pins (G) into holes on assembled indi crib upper (C) and toddler rail (A) as shown. make sure all mattress support pins (G) are located at the same height at all 4 corners. still confused? scan this code to watch the assembly video!
  • Page 17 place mattress panel (E) into the assembled crib so each mattress support pin (G) is inserted into a hole. still confused? scan this code to watch the assembly video!
  • Page 18 place flat washer (J) and locking washer (I) on top of mattress support pin (G) as shown. then, use a philips head screwdriver and mattress suport bolt (H) to secure into place. repeat on all 4 sides. still confused? scan this code to watch the assembly video!
  • Page 19 yippee! you did it! give yourself a pat on the back, take a bow, or go house a pint of ice cream…we don’t judge.
  • Page 20 prefer to talk to a human instead? we’re here for you! contact our customer advocate team below: 212.226.1868 quack@ducducnyc.com live chat at 200 lexington, no. 1201 ducducnyc.com ny, ny 10016...
