MT9M024IA3XTRH-GEVB
MT9M024 Evaluation Board
User's Manual

Evaluation Board Overview

The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo 2X system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.

Features

Clock Input
Default – 27 MHz Crystal Oscillator
Optional Demo 2X Controlled MClk
Two Wire Serial Interface
Selectable Base Address
Parallel Interface
HiSPi (High Speed Serial Pixel) Interface
ROHS Compliant

Block Diagram

© Semiconductor Components Industries, LLC, 2016
July, 2016 − Rev. 0
All manuals and user guides at all-guides.com

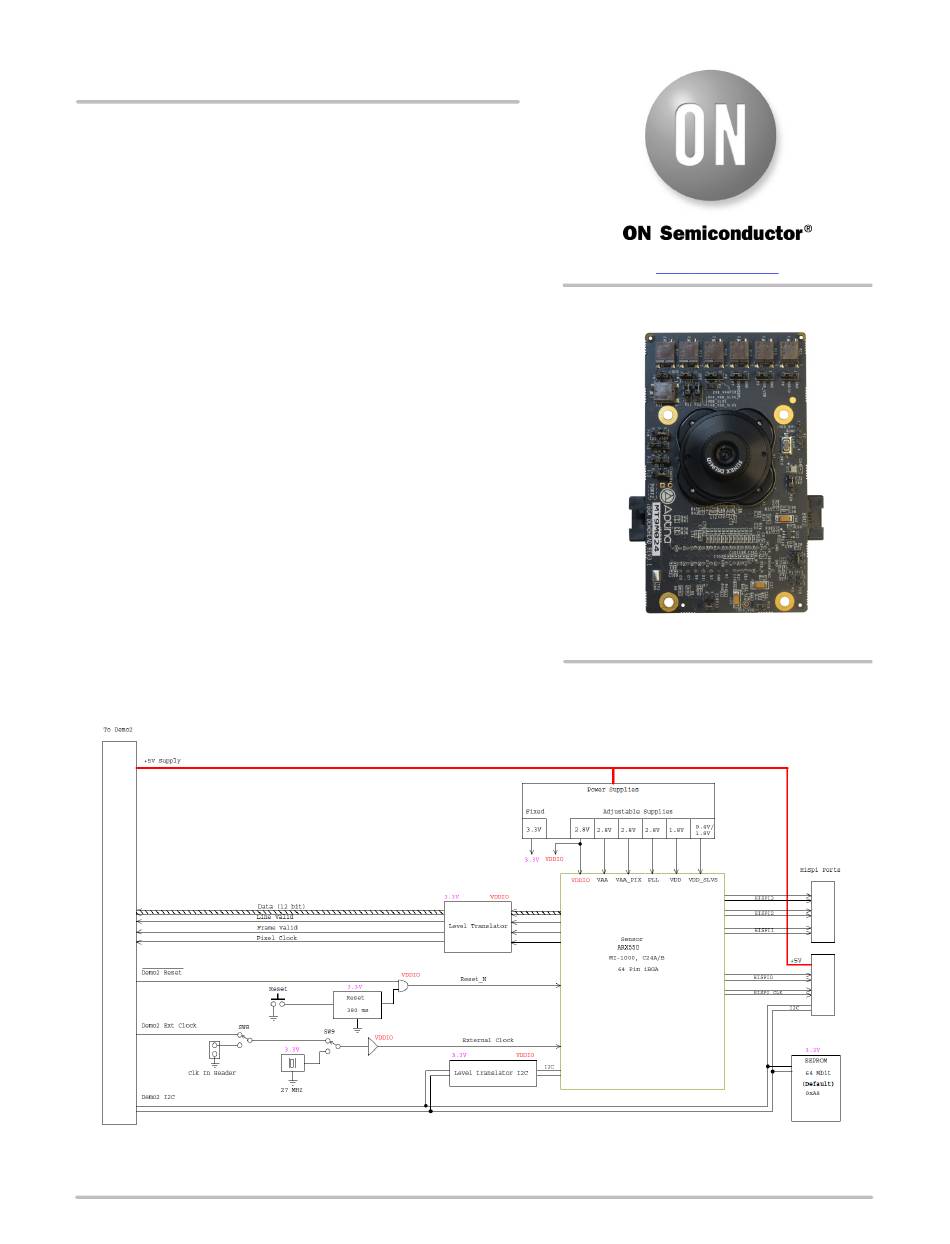

Figure 2. Block Diagram of MT9M024IA3XTRH−GEVB
1
www.onsemi.com
EVAL BOARD USER'S MANUAL

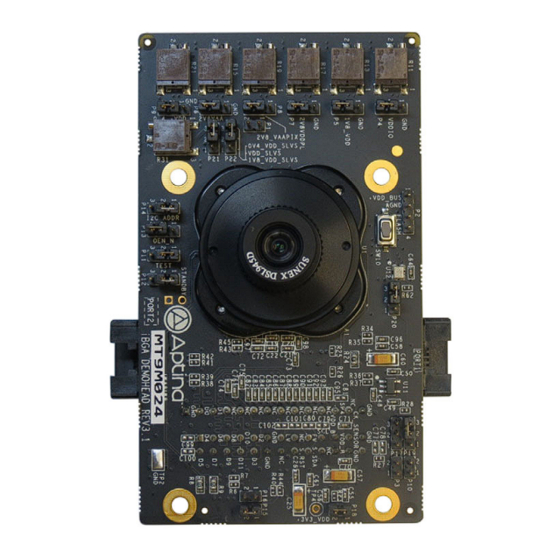

Figure 1. MT9M024 Evaluation Board
Publication Order Number:
EVBUM2430/D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT9M024 and is the answer not in the manual?

Questions and answers

Summary of Contents for ON Semiconductor MT9M024

  • Page 1 Evaluation Board Overview www.onsemi.com The evaluation boards are designed to demonstrate the features of ON Semiconductor’s image sensors products. This headboard is EVAL BOARD USER’S MANUAL intended to plug directly into the Demo 2X system. Test points and jumpers on the board provide access to the clock, I/Os, and other miscellaneous signals.
  • Page 2 All manuals and user guides at all-guides.com MT9M024IA3XTRH−GEVB Top View +2V8_VAAPIX P8 +1V8_VDD P5 +2V8_VAA P6 +0V4_VDD_SLVS P9 +VDDIO P4 +1V8_VDD_SLVS P21 +2V8_VDDPLL P7 +VDD_SLVS_SEL P22 +VPP P1 FLASH P2 SADDR P14 RESET Switch SW10 OEN_N P13 CLK_SELECT P20 TEST P11 STANDBY P12 TRIGGER P17 MCLK_EN P19...
  • Page 3 All manuals and user guides at all-guides.com MT9M024IA3XTRH−GEVB Jumper Pin Locations The jumpers on headboards start with Pin 1 on the leftmost side of the pin. Grouped jumpers increase in pin size with each jumper added. Pin 1 Pins 1−4 Figure 5.
  • Page 4 External power supply connection SW10 RESET When pushed, 380 ms reset signal will be sent to MT9M024 Interfacing to ON Semiconductor Demo 2X Baseboard with J3 and J4 of the headboard. The four mounting holes The ON Semiconductor Demo 2X baseboard has a...
  • Page 5 All manuals and user guides at all-guides.com onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf.
