ON Semiconductor MT9M114 User Manual

MT9M114EBLSTCZDH-GEVB
MT9M114 Evaluation Board
User's Manual

Evaluation Board Overview

The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Stereo Camera system. Test points
and jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.

Features

•
Clock Input
Default – 24 MHz Crystal Oscillator
♦
•
Two Wire Serial Interface
Selectable Base Address
♦
•
Parallel Interface
•
MIPI Interface
•
ROHS Compliant
Block Diagram
© Semiconductor Components Industries, LLC, 2016
July, 2016 − Rev. 0
Figure 2. Block Diagram of MT9M114EBLSTCZDH−GEVB
EVAL BOARD USER'S MANUAL

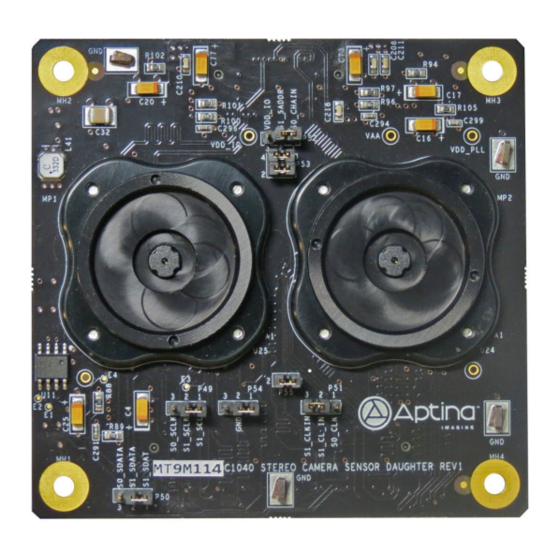

Figure 1. MT9M114 Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2439/D
