MT9M021IA3XTMH-GEVB
MT9M021 Evaluation Board
User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo 2X system. Test points and
jumpers on the board provide access to clock, I/Os and other
miscellaneous signals.
Features
Clock Input
Default − 27 MHz crystal oscillator
Optional Demo 2X controlled MClk
Two Wire Serial Interface
Selectable base address
Parallel Interface
ROHS Compliant
Block Diagram
© Semiconductor Components Industries, LLC, 2016
June, 2016 − Rev. 0
Figure 2. Block Diagram of MT9M021IA3XTMH−GEVB
EVAL BOARD USER'S MANUAL

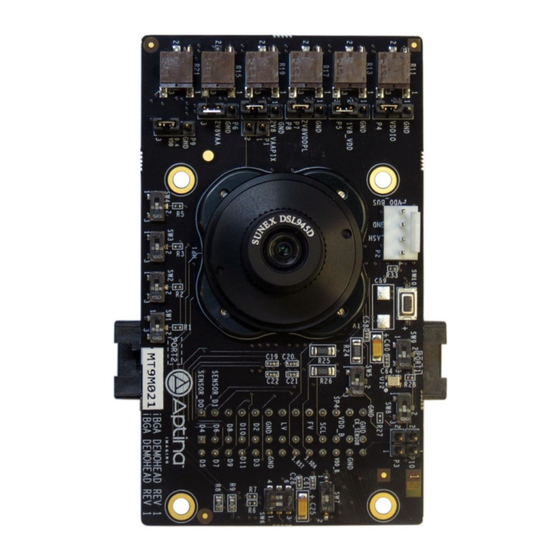

Figure 1. MT9M021 Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2425/D
