MT9M021IA3XTMZH-GEVB
MT9M021 Evaluation Board
User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo 2X system. Test points and
jumpers on the board provide access to clock, I/Os and other
miscellaneous signals.
Features
•
Clock Input
Default − 27 MHz crystal oscillator
♦
Optional Demo 2X controlled MClk
♦
•
Two Wire Serial Interface
Selectable base address
♦
•
Parallel Interface
•
ROHS Compliant
Block Diagram
© Semiconductor Components Industries, LLC, 2016
June, 2016 − Rev. 0

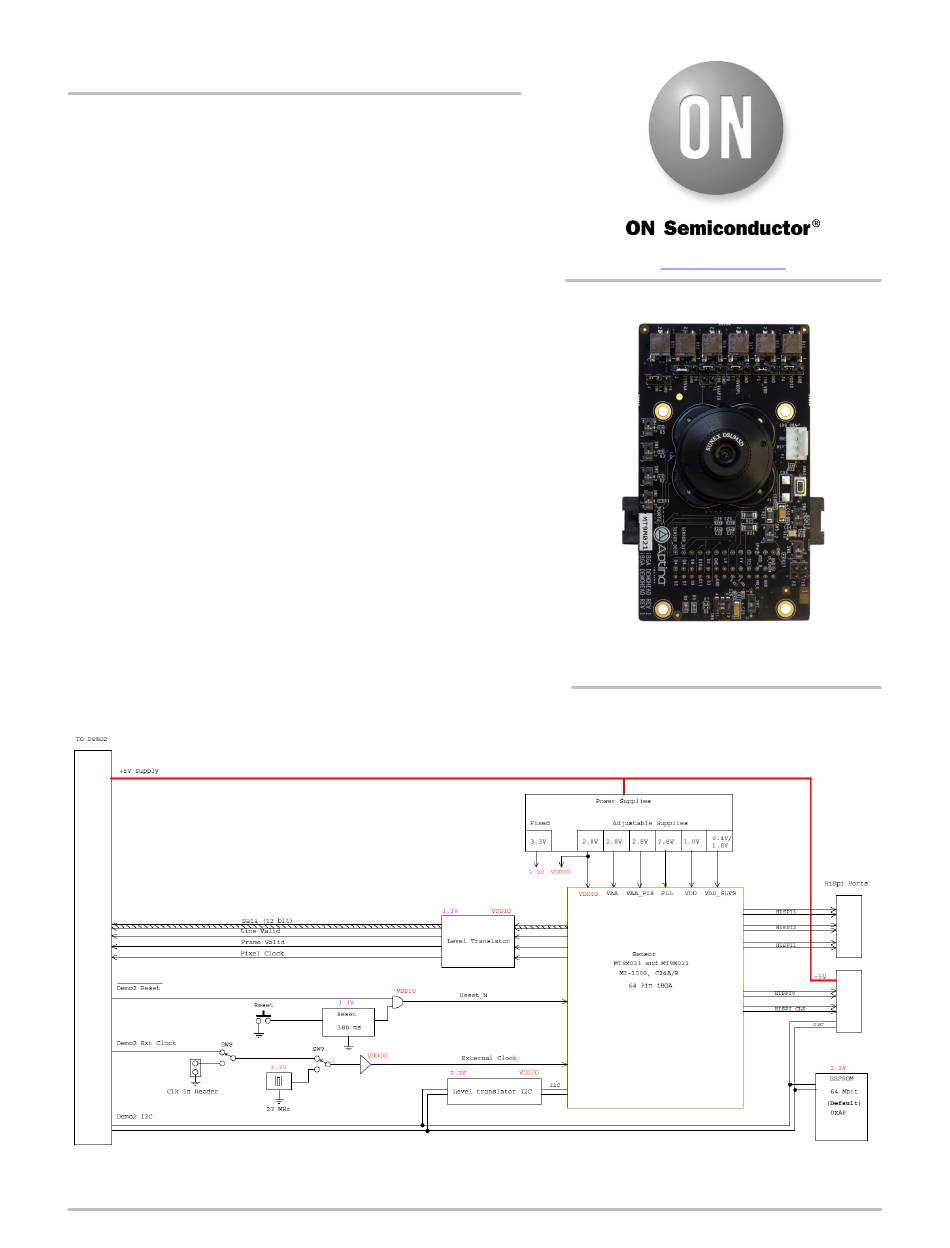

Figure 2. Block Diagram of MT9M021IA3XTMZH−GEVB
EVAL BOARD USER'S MANUAL

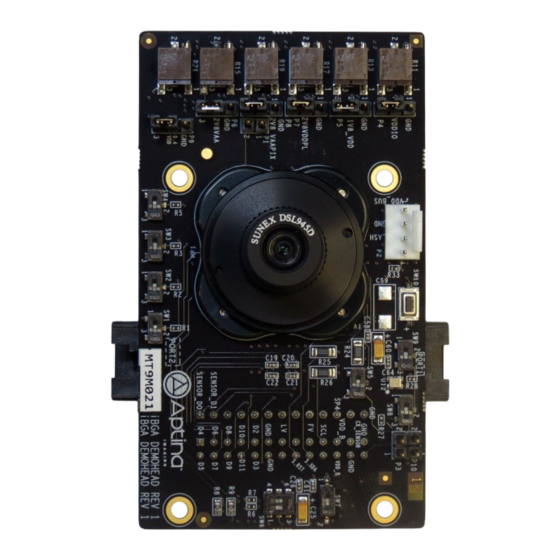

Figure 1. MT9M021 Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2426/D
Advertisement
Table of Contents
Related Manuals for ON Semiconductor MT9M021IA3XTMZH-GEVB
Summary of Contents for ON Semiconductor MT9M021IA3XTMZH-GEVB
- Page 1 Evaluation Board Overview The evaluation boards are designed to demonstrate the features of www.onsemi.com ON Semiconductor’s image sensors products. This headboard is intended to plug directly into the Demo 2X system. Test points and EVAL BOARD USER’S MANUAL jumpers on the board provide access to clock, I/Os and other miscellaneous signals.
- Page 2 MT9M021IA3XTMZH−GEVB Top View +2V8_VDDPLL P7 +2V8_VAAPIX P8 +2V8_VAA P6 +VDDIO P4 +0V4_VDD_SLVS P9 +1V8_VDD P5 SADDR SW4 +VPP P1 O_EN SW3 STANDBY SW2 RESET Switch SW10 TEST SW1 CLK_SELECT SW9 SHUTTER SW5 S_CLK SW8 ON_LED SW7 EEPROM ADDR SW6 Figure 3. Top View of Evaluation Board − Default Jumpers Bottom View HiSPi Connector J1 HiSPi Connector J2...
- Page 3 MT9M021IA3XTMZH−GEVB Jumper Pin Locations The jumpers on headboards start with Pin 1 on the leftmost side of the pin. Grouped jumpers increase in pin size with each jumper added. Pin 1 Pins 1−4 Figure 5. Pin Locations for a Single Jumper. Pin 1 is Located at the Leftmost Side and Increases as it Moves to the Right Pin 1 Pins 1 and 2...
- Page 4 When pushed, 380 ms reset signal will be sent to MT9M021 Interfacing to ON Semiconductor Demo 2X Baseboard The ON Semiconductor Demo 2X baseboard has a similar and J4 of the headboard. The four mounting holes secure the 26-pin connector and 13-pin connector which mate with J3 baseboard and the headboard with spacers and screws.
- Page 5 onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf.
