ON Semiconductor MT9M024IA3XTRH-GEVB User Manual

MT9M024IA3XTRH-GEVB
MT9M024 Evaluation Board
User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo 2X system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.
Features
•
Clock Input
Default – 27 MHz Crystal Oscillator
♦
Optional Demo 2X Controlled MClk
♦
•
Two Wire Serial Interface
Selectable Base Address
♦
•
Parallel Interface
•
HiSPi (High Speed Serial Pixel) Interface
•
ROHS Compliant
Block Diagram
© Semiconductor Components Industries, LLC, 2016
July, 2016 − Rev. 0
Figure 2. Block Diagram of MT9M024IA3XTRH−GEVB
1
www.onsemi.com
EVAL BOARD USER'S MANUAL

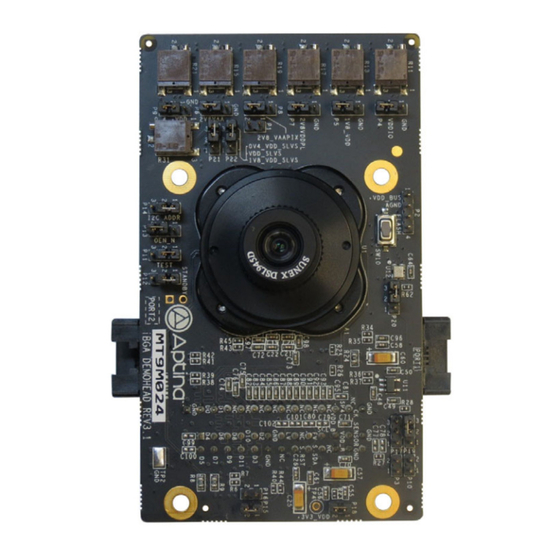

Figure 1. MT9M024 Evaluation Board
Publication Order Number:
EVBUM2430/D
