II. Specifications
Screen size:
5.6" LCD
Active area:
111.36mm (H) x 83.52mm (V)
Drive system:
A-si TFT Active matrix
Screen Color:
Full-color
Dot matrix:
320 (H) x RGB x 240 (V) dots
Dot pitch:
0.116 (H) x 0.348 (V)
Overall dimensions: 162mm (H) x 133mm (V) x 54mm (D)
Contrast ratio:
85:1
Luminosity:
270 cd/m
2
Sound output:
200mW x built-in 4cm speaker, 1piece
Input terminals:
Power input, Video input, Audio input
Consumption power: DC 12V/600mA, 8W (MAX)
Power input:
DC 9V - 20V, pin 2.0∅
Video input:
0.75Vp-p - 1Vp-p, pin 3.5∅
Audio input:
50mV (min), Stereo in, pin 3.5∅
Stereo output:
Earphone, pin 3.5∅
Screen Display:
switchable Reverse / Normal
Operating Temp:
-10°C - +55°C
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Marshall Electronics V-LCD5.6-PRO
Summary of Contents for Marshall Electronics V-LCD5.6-PRO
- Page 1 NOTES: _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ ____________________________ II. Specifications Screen size: 5.6” LCD Active area: 111.36mm (H) x 83.52mm (V) Drive system: A-si TFT Active matrix Screen Color: Full-color Dot matrix: 320 (H) x RGB x 240 (V) dots...
- Page 2 III. Operation 1. Power: On-Off switch 12VDC, 1Amp Video Input Earphone Audio In 2. Viewing Angle: The ideal viewing angle is within the following range: Upper angle: 30° Lower angle: 10° Left angle: 45° Right angle: 45° 3. Connection: Connector for Connector for Audio Input LCD power in...

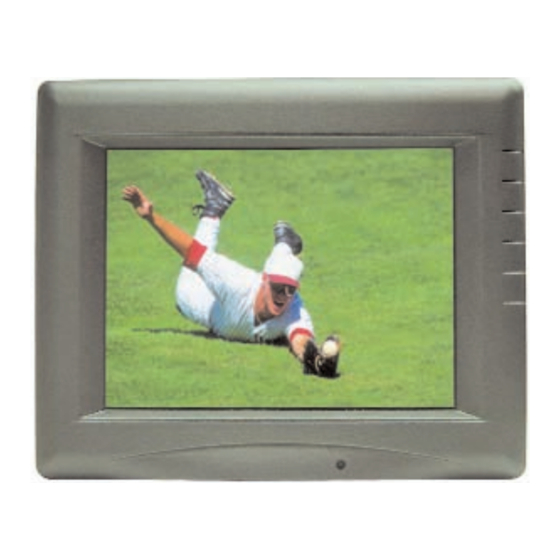

- Page 3 COLOR 5.6 INCH TFT PANEL WITH AUDIO V-LCD5.6-PRO VIDEO WITH STEREO AUDIO INPUT COLOR 5.6 INCH TFT PANEL WITH CLEAR DEFINITION USER’S MANUAL...
- Page 4 Safety Warning To prevent fire or shock hazard, do not expose this equip- ment to high humidity and dust. Do not use it in an unprotected outdoor installation or any area that is wet. The temperature for installation should be kept between -10°C - +55°C.
