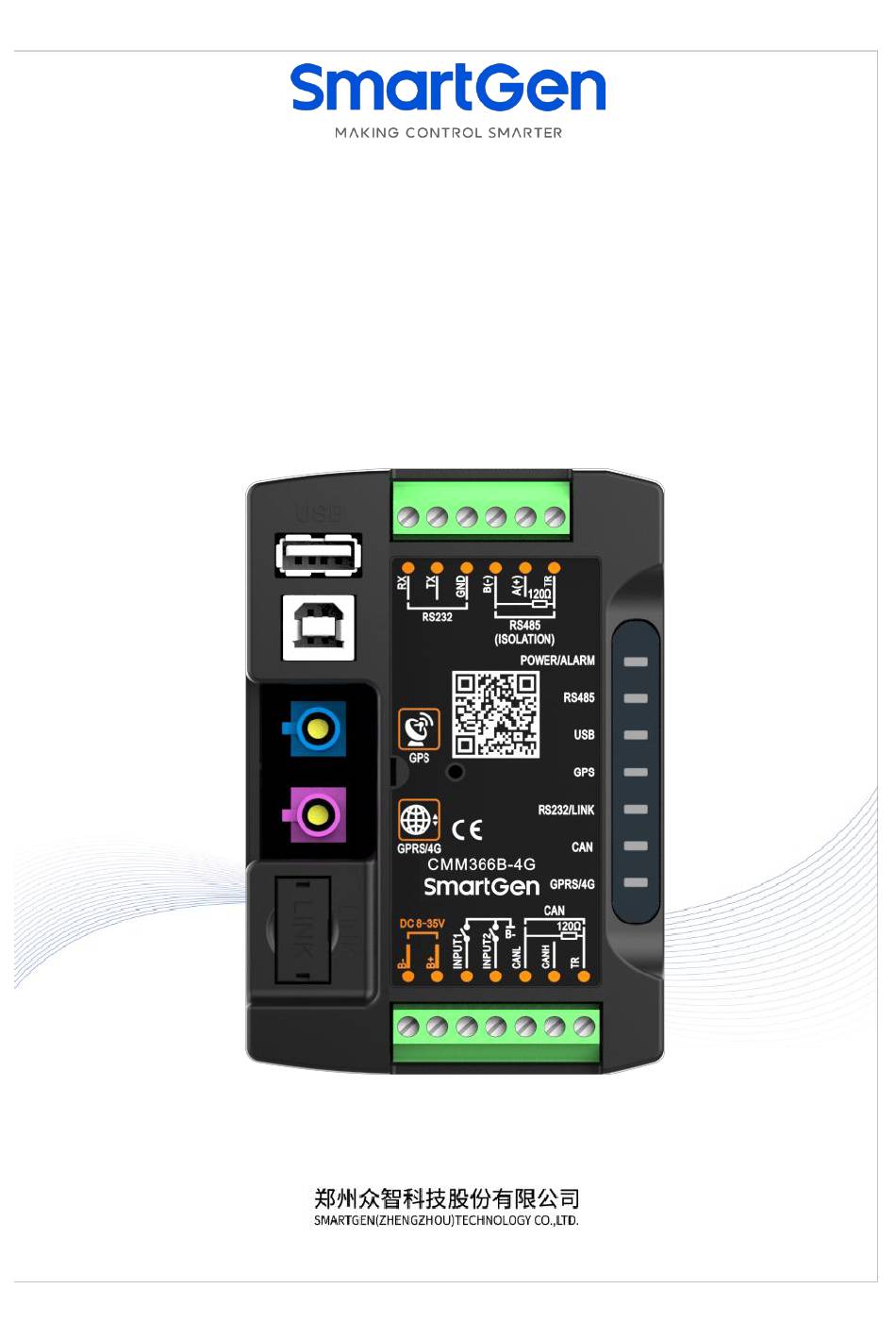

- Page 1 CMM366B-4G/CMM366CAN-4G CLOUD MONITORING COMMUNICATION MODULE USER MANUAL...
- Page 2 SmartGen Technology at the address above. Any reference to trademarked product names used within this publication is owned by their respective companies. SmartGen Technology reserves the right to change the contents of this document without prior notice. Table 1 – Software Version Date...
-
Page 3: Table Of Contents
7 CASE DIMENSION AND INSTALLATION ....................13 8 APP INSTALLATION STEPS ........................15 9 FAULT FINDING ............................16 10 PACKING LIST ............................17 11 APPENDIX (ORDER MODEL) ........................17 CMM366B-4G/CAN-4G Cloud Monitoring Communication Module User Manual Page 3 of 17... -
Page 4: Overview
It has GPS positioning function, which can upload the obtained longitude and latitude, altitude information at real time to the corresponding cloud server. CMM366CAN-4G cloud monitoring communication module has CAN port, but CMM366B-4G hasn't. Except for this, these two cloud monitoring communication modules has same functions. -
Page 5: Specification
Standard SMA port (female), SMA port (male) for antenna, active antenna. LTE-TDD/LTE-FDD/HSPA+/TD-SCDMA/EVDO Wireless Network GSM/GPRS/EDGE Case Dimensions 72.5mmx105mmx34mm Working Temperature (-25~+70)°C Working Humidity (20~93)%RH Storage Temperature (-30~+80)°C Weight 0.15kg CMM366B-4G/366CAN-4G Cloud Monitoring Communication Module User Manual Page 5 of 17... -

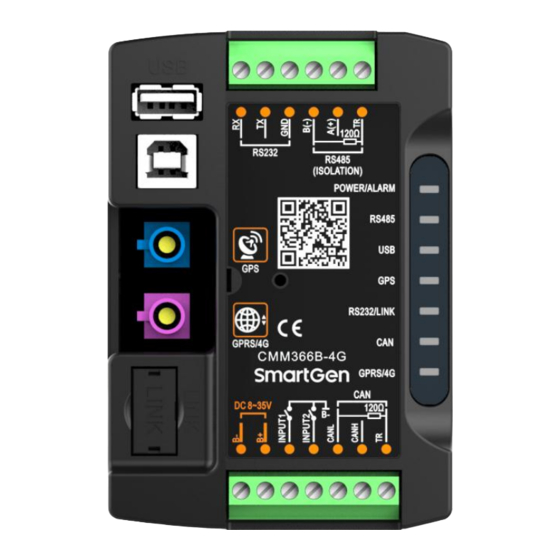

Page 6: Panel And Terminal Description
Normally Light On: Communication failed; Flash: Communication normal. Normally Light Off: 4G module logins with server unsuccessfully; GPRS/4G (Red) Normally Light On: Login with server successfully; Flash: Real-time communication normal. CMM366B-4G/366CAN-4G Cloud Monitoring Communication Module User Manual Page 6 of 17... -
Page 7: Gprs/4G Antenna Port
NOTE: GPRS antenna and GPS antenna cannot be connected reversely. SIM CARD INSTALLATION Insert 4G SIM card. CMM366B-4G/CMM366CAN-4G will connect to server via wireless mobile network. NOTE: This module supports 4G wireless network of all modes. Standard SIM card is applied (size: 25mmx15mm);... -
Page 8: Rs485 Port
Receive genset data information by connecting RS232 port with genset controller RS232 port. Fig.5 – RS232 Connection Diagram LINK PORT Receive genset data information by connecting LINK port with genset controller LINK port. Fig.6 – LINK Connection Diagram CMM366B-4G/366CAN-4G Cloud Monitoring Communication Module User Manual Page 8 of 17... -
Page 9: Usb Host Port
USB port via USB cable. Fig.7 – USB Host Connection Diagram USB DEVICE PORT All the parameters can be configured and view CMM366B-4G/CMM366CAN-4G module ID&Login password by connecting USB port with PC. Fig.8 – USB and PC Device Connection Diagram Fig.9 –... -
Page 10: Can Port
RS485 B(-) 0.5mm 120Ω terminal resistor is recommended, short RS485 A(+) 0.5mm connect RS485 A(+) and TR terminal. 0.5mm RS232 RX 0.5mm RS232 TX 0.5mm RS232 port. RS232 GND 0.5mm CMM366B-4G/366CAN-4G Cloud Monitoring Communication Module User Manual Page 10 of 17... -
Page 11: Programmable Parameters
NOTE: Monitoring genset controller model, communication port, communication baud rate, and communication ID need to be set on the platform, and cloud monitoring module needs to re-power after all parameters being set. CMM366B-4G/366CAN-4G Cloud Monitoring Communication Module User Manual Page 11 of 17... -
Page 12: Pc Configuration Interface
Reserved Factory Test Mode It is only used for factory test. PC CONFIGURATION INTERFACE Connecting the USB port of CMM366B-4G/CMM366CAN-4G communication module with PC to configure the parameters. Fig.11 – Gateway Configuration Fig.12 – Module Monitoring Interface CMM366B-4G/366CAN-4G Cloud Monitoring Communication Module User Manual... -
Page 13: System Application Diagram
SYSTEM APPLICATION DIAGRAM One CMM366B-4G/CMM366CAN-4G module connects with one genset monitoring module. It can be connected via RS485 port, LINK port, CAN port, RS232 port or USB port. Fig.13 – CMM366B-4G/CMM366CAN-4G System Application Diagram CASE DIMENSION AND INSTALLATION 35mm guide rail cabinet installation or screw-fixed (M4) installation can be applied. Case... - Page 14 Fig.15 – CMM366B-4G/CMM366CAN-4G Guide Rail Installation Fig.16 – CMM366B-4G/CMM366CAN-4G Screw Installation CMM366B-4G/366CAN-4G Cloud Monitoring Communication Module User Manual Page 14 of 17...
-
Page 15: App Installation Steps
APP INSTALLATION STEPS Fig.17 – APP Download QR Code Scan the QR code on the enclosure of CMM366B-4G/CMM366CAN-4G cloud monitoring communication module (QR code is as Fig. 17), download the APP and install it in the mobile; Open the APP from the mobile, users have to register for the first using, then input account number and password to enter APP;... -
Page 16: Fault Finding
Check genset controller ID is correct or not. Check connections; Check USB port is enabled or not on cloud server platform USB(Host) Comm. Abnormal communication port; Check genset controller ID is correct or not. CMM366B-4G/366CAN-4G Cloud Monitoring Communication Module User Manual Page 16 of 17... -
Page 17: Packing List
CMM366CAN-4G-S02 Korea/Thailand/ WCDMA: B1/B5/B8 Middle East GSM: 900/1800MHz FDD-LTE: South America/ B1/B2/B3/B4/B5/B7/B8/B28 CMM366B-4G-S03 Australia/ TDD-LTE: B40 CMM366CAN-4G-S03 New Zealand WCDMA: B1/B2/B5/B8 GSM: 850/900/1800/1900MHz CMM366B-4G-S05 Japan FDD-LTE: B1/B3/B8/B18/B19/B26 CMM366CAN-4G-S05 _____________________________________ CMM366B-4G/366CAN-4G Cloud Monitoring Communication Module User Manual Page 17 of 17...
